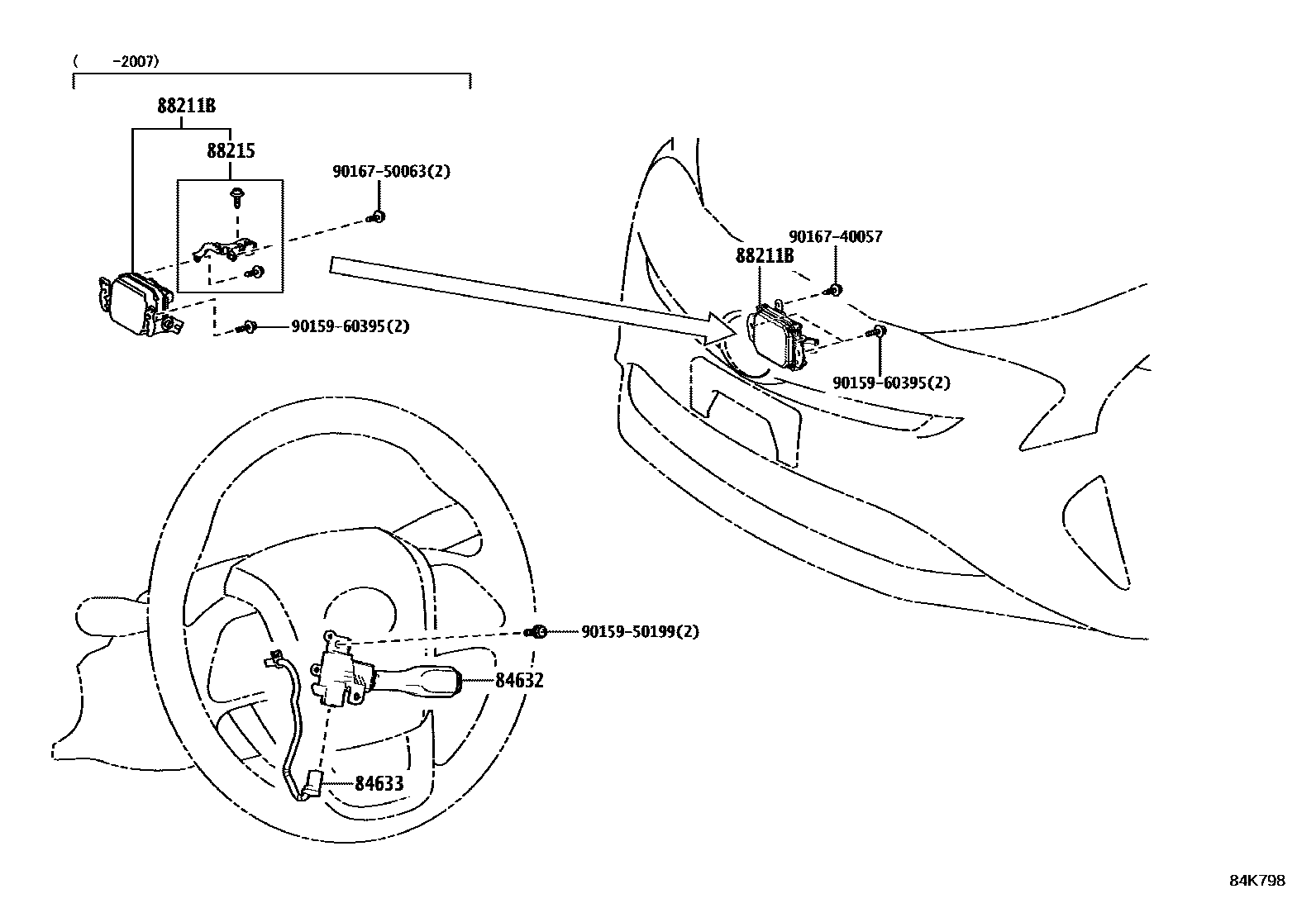

CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-34011iZVW50; ZVW50..GCC201511-201812

CRUISE CONTROL-WITHOUT

main84632-47010iZVW50..ARL201511-201812

PRE-COLLISION SYSTEM-WITH

84633WIRE, CRUISE CONTROL SWITCH

main84633-48020iZVW50; ZVW50..GCC201511-201812

CRUISE CONTROL-WITHOUT

main84633-42040iZVW50..ARL201511-201812

PRE-COLLISION SYSTEM-WITH

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-33120iZVW50202007

HEAD UP DISPLAY-WITH

main88210-47090iZVW50..ARL201511-201812

HEAD UP DISPLAY-WITH

main88210-48070iZVW50..ARL201812-201907

HEAD UP DISPLAY-WITH

main88210-48071iZVW50..ARL201908-202007

HEAD UP DISPLAY-WITH

88215BRACKET, MILLIMETER WAVE RADAR SENSOR, NO.1

main88201-60010iZVW50..ARL201511-201812

HEAD UP DISPLAY-WITH

9015950199

main90159-50199

9015960395

main90159-60395

9016740057

main90167-40057

9016750063

main90167-50063

8 parts on this diagram · 1 diagram in section
