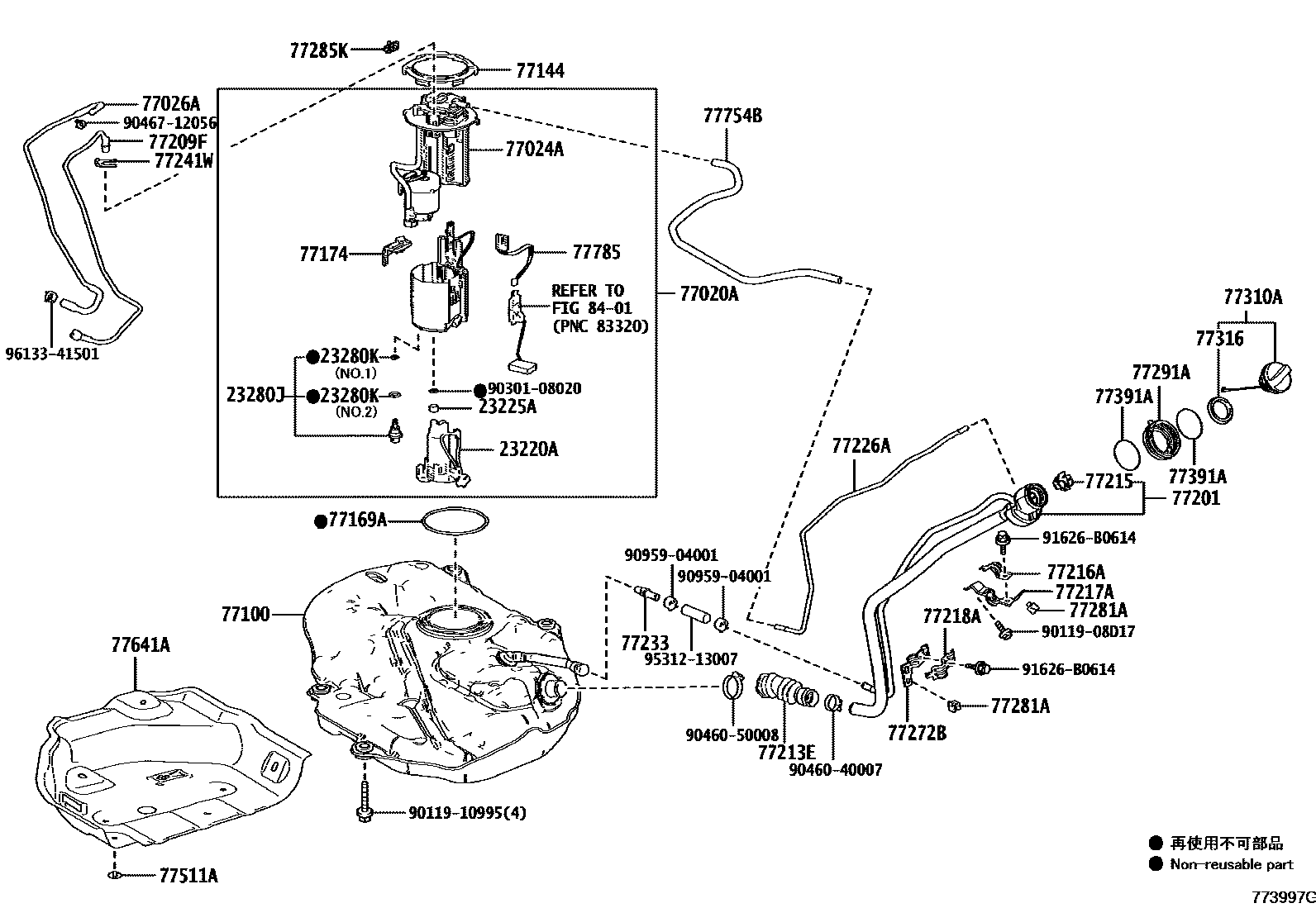

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77215PLATE, FUEL TANK FILLER PIPE FLANGE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77233JOINT, FUEL HOSE
77272BSUPPORT, BREATHER TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77285KCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77511ABRACKET, FUEL TANK
77641APROTECTOR, FUEL TANK, NO.1
77754BHOSE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
9011908D17
main90119-08D17
9011910995
main90119-10995
9030108020
main90301-08020
9046040007
main90460-40007
9046050008
main90460-50008
9046712056
main90467-12056
9095904001
main90959-04001
91626B0614
main91626-B0614
9531213007
main95312-13007
9613341501
main96133-41501
43 parts on this diagram · 4 diagrams in section
