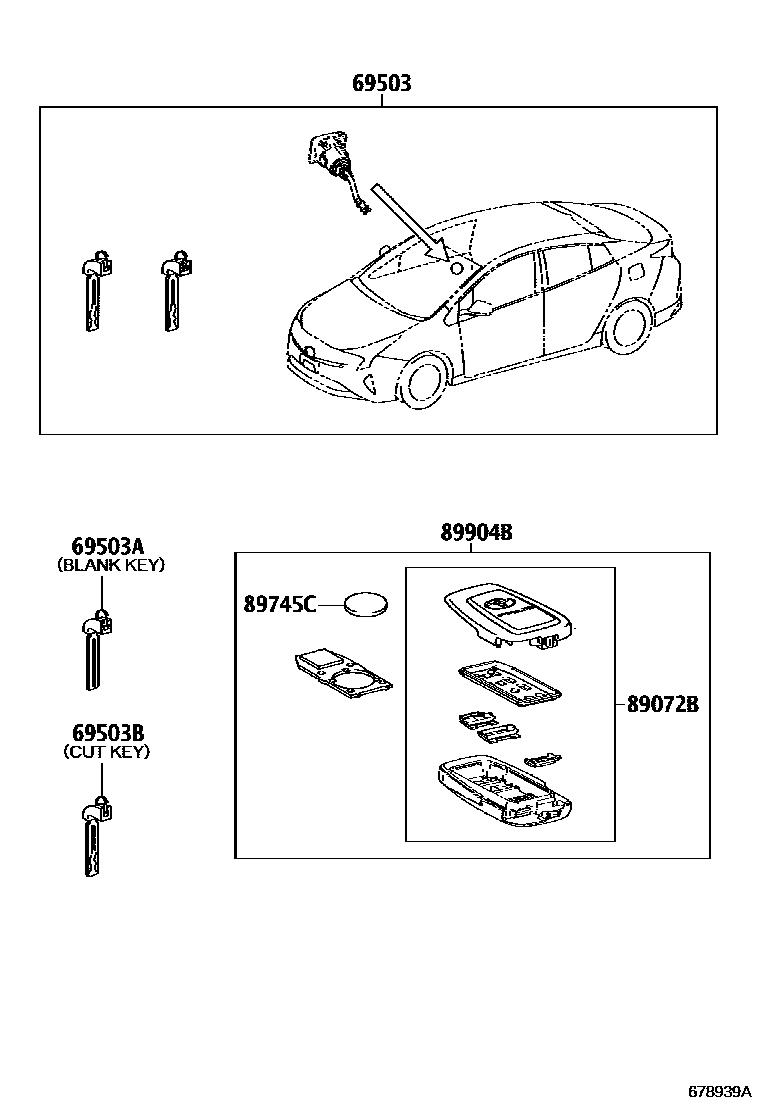

LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-47240iZVW50..ARL201511-201812

main69005-47250iZVW50..GCC201511-202006

69503AKEY, BLANK

main69515-16110iZVW50202011

MASTER KEY,W(*68)

main69515-47030iZVW50201511-202010

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-16100iZVW50202011

MASTER KEY,W(*68)

main69515-47020iZVW50201511-202010

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-47190iZVW50..ARL201511-202007

main89072-47220iZVW50..GCC201511-202006

main89072-47400iZVW50202007

89745CBATTERY, TRANSMITTER

main89745-45010iZVW50..ARL201511-202007

CR2032

main89745-50020iZVW50201511-201812

CR2032

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-47480iZVW50..GCC201812-202006

main89904-47530iZVW50..ARL201511-202007

main89904-47560iZVW50..GCC201511-201812

main89904-47710iZVW50202007

6 parts on this diagram · 2 diagrams in section
