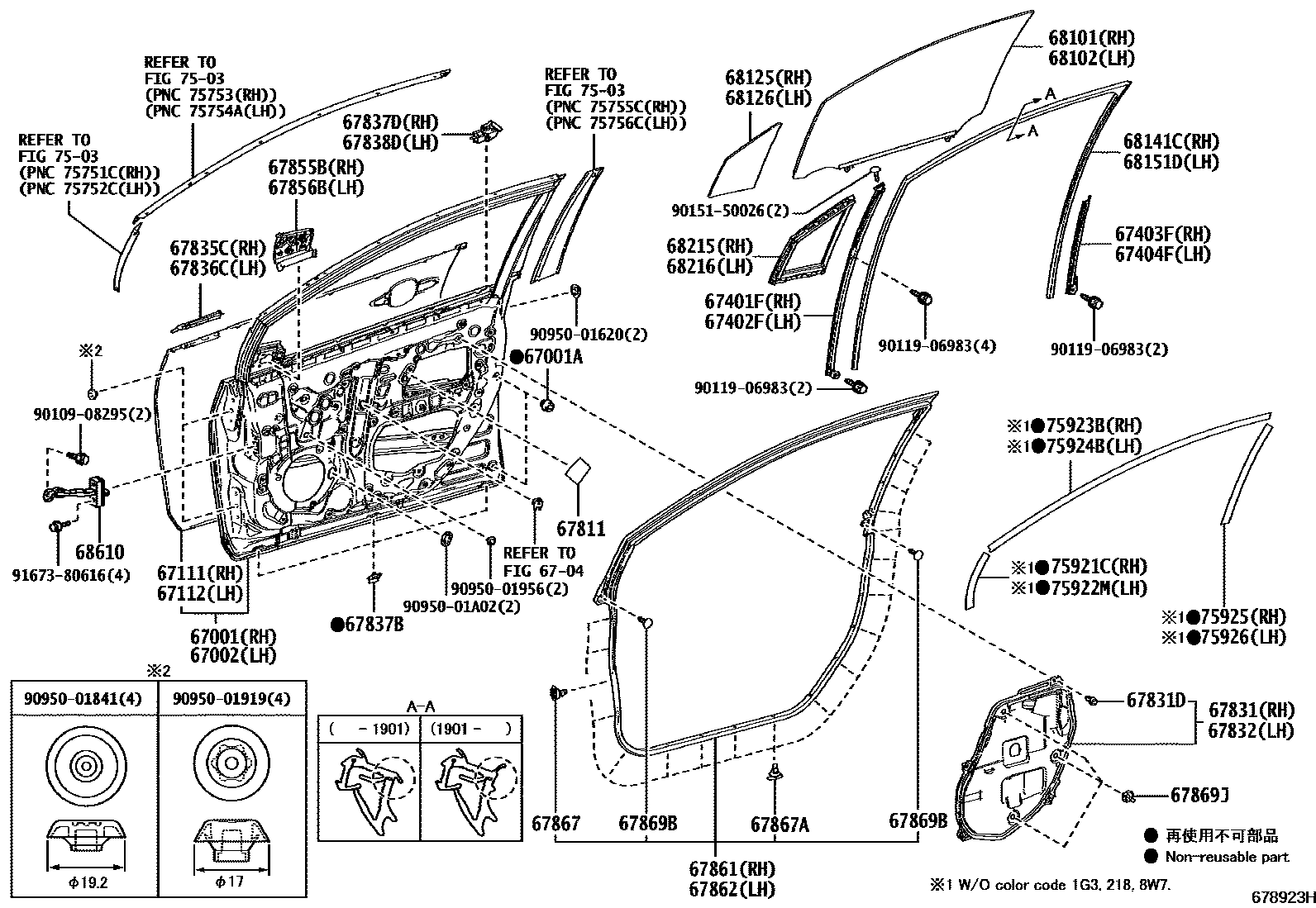

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-47150iZVW50201511-201603

main67001-47151iZVW50201603-201611

main67001-47152iZVW50201612-201812

main67001-47152iZVW50201812-201901

REFER TO PNC 68141C

main67001-47153iZVW50..ARL201901-202006

REFER TO PNC 68141C

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iZVW50201511-202006

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-47160iZVW50201511-201603

main67002-47161iZVW50201603-201611

main67002-47162iZVW50201612-201812

main67002-47162iZVW50201812-201901

REFER TO PNC 68151D

main67002-47163iZVW50..GCC201901-202006

REFER TO PNC 68151D

6704FRONT DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-04

67111PANEL, FRONT DOOR, OUTER RH

main67111-47050iZVW50201511-201812

67112PANEL, FRONT DOOR, OUTER LH

main67112-47050iZVW50201511-201812

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-47010iZVW50201511-202006

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-47010iZVW50..ARL201511-202006

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-47050iZVW50201511-202006

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-47050iZVW50201511-202006

67811PAD, FRONT DOOR SILENCER

main67811-12180iZVW50..GCC202005-202006

main67811-33040iZVW50201511-202004

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-47120iZVW50..ARL201511-202006

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iZVW50..GCC201511-202006

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-47100iZVW50201511-202006

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-47010iZVW50201511-202006

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-47010iZVW50201511-202006

67837BSEAL, FRONT DOOR DUST PROOF

main67837-47060iZVW50201705-202006

main67837-48050iZVW50201511-201704

67837DSEAL, FRONT DOOR VENT, RH

main67837-47020iZVW50..GCC201511-202006

67838DSEAL, FRONT DOOR VENT, LH

main67838-47010iZVW50201511-202006

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-47010iZVW50201511-202006

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-47010iZVW50..ARL201511-202006

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-47050iZVW50201511-201801

main67861-47060iZVW50201801-201812

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-47050iZVW50201511-201801

main67862-47060iZVW50201801-201812

67867CLIP, DOOR WEATHERSTRIP

main67867-52010iZVW50201511-201812

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150iZVW50201511-201812

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iZVW50201511-201812

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-47010iZVW50201511-202006

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-47200iZVW50..ARL201511-202106

main68101-47230iZVW50..GCC201511-202006

main68101-47300iZVW50202106

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-47200iZVW50..ARL201511-202106

main68102-47230iZVW50..GCC201511-202006

main68102-47300iZVW50202106

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-47010iZVW50..ARL201511-201812

main68125-47030iZVW50..GCC201511-202006

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-47010iZVW50..ARL201511-201812

main68126-47030iZVW50..GCC201511-202006

68141CRUN, FRONT DOOR GLASS, RH

main68141-47050iZVW50..ARL201511-201602

main68141-47051iZVW50..ARL201603-201812

main68141-47051iZVW50..ARL201812-201901

REFER TO ILLUST.

main68141-47052iZVW50..ARL201901-202106

REFER TO ILLUST.

main68141-47060iZVW50..GCC201511-201602

main68141-47061iZVW50..GCC201603-201812

main68141-47061iZVW50..GCC201812-201901

REFER TO ILLUST.

main68141-47062iZVW50201901

REFER TO ILLUST.

68151DRUN, FRONT DOOR GLASS, LH

main68151-47050iZVW50..ARL201511-201602

main68151-47051iZVW50..ARL201812-201901

REFER TO ILLUST.

main68151-47051iZVW50..ARL201603-201812

main68151-47052iZVW50..ARL201901-202106

REFER TO ILLUST.

main68151-47060iZVW50..GCC201511-201602

main68151-47061iZVW50..GCC201603-201812

main68151-47061iZVW50..GCC201812-201901

REFER TO ILLUST.

main68151-47062iZVW50..GCC201901

REFER TO ILLUST.

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-47010iZVW50201511-202006

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-47010iZVW50201511-202006

68610CHECK ASSY, FRONT DOOR

main68610-47040iZVW50201511-202006

7503SIDE MOULDING

→ Go to FIG 75-03

75921CTAPE, BLACK OUT, NO.1 RH

main75975-47060iZVW50201511-201812

0 OR 1PIECE,REF.ILL.

75922MTAPE, BLACK OUT, NO.1 LH

main75976-47060iZVW50201511-201812

0 OR 1PIECE,REF.ILL.

75923BTAPE, BLACK OUT, NO.2 RH

main75985-47050iZVW50201511-201812

0 OR 1PIECE,REF.ILL.

75924BTAPE, BLACK OUT, NO.2 LH

main75986-47050iZVW50201511-201812

0 OR 1PIECE,REF.ILL.

75925TAPE, BLACK OUT, NO.3 RH

main75965-47030iZVW50201511-201812

0 OR 1PIECE,REF.ILL.

75926TAPE, BLACK OUT, NO.3 LH

main75966-47030iZVW50201511-201812

0 OR 1PIECE,REF.ILL.

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9095001620

main90950-01620

9095001841

main90950-01841

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

52 parts on this diagram · 2 diagrams in section
