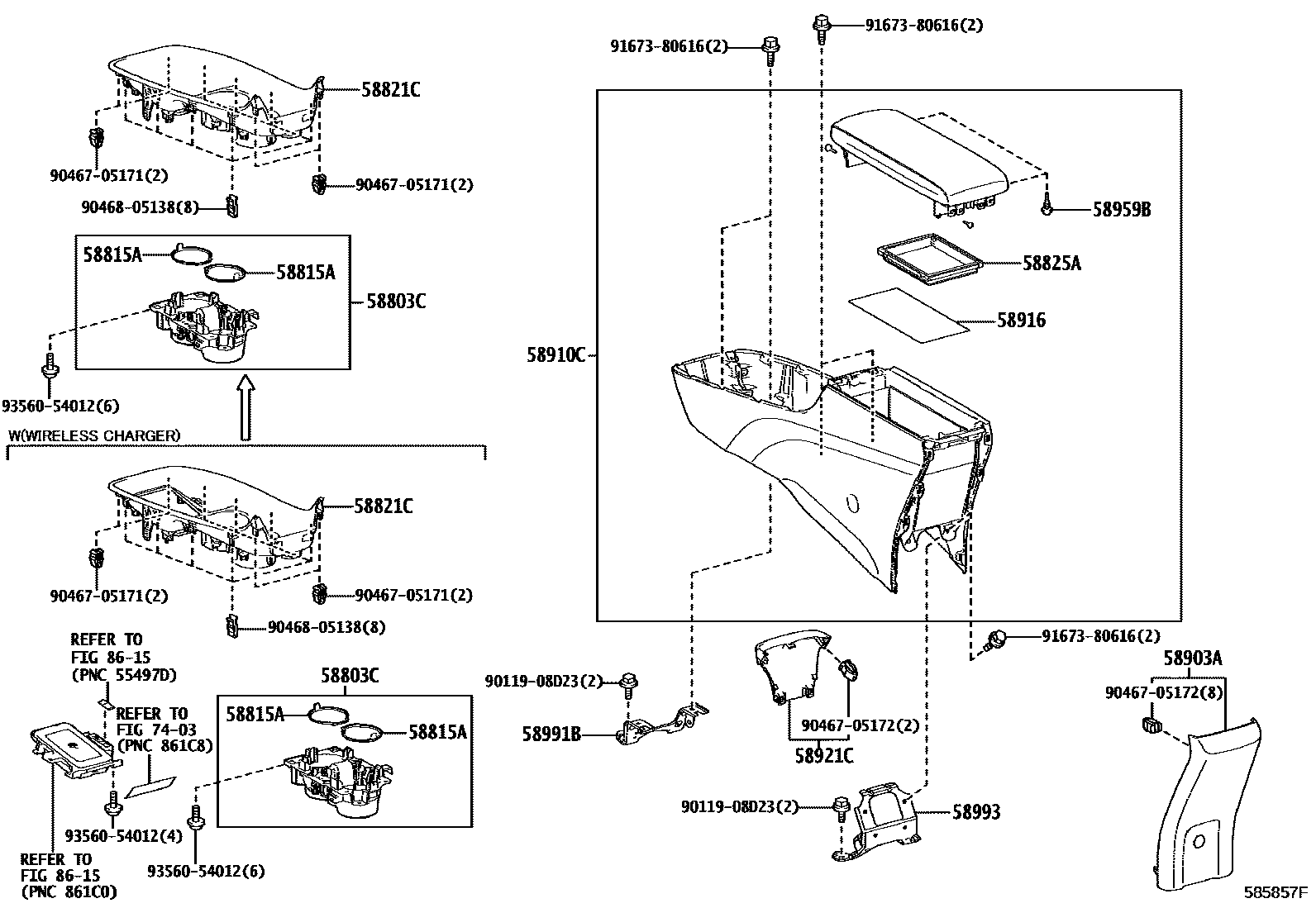

CONSOLE BOX & BRACKET
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
sub58803-47011
WHITE
WHITE,TRIM1#
WHITE,TRIM1#,20
BLACK METALLC,TRIM2#
BLACK METALLC,TRIM20
58815ACARPET, CONSOLE BOX
58821CPANEL, CONSOLE, UPPER
sub58821-47051
WHITE
WHITE,TRIM1#
WHITE,TRIM1#,20
BLACK METALLC,TRIM2#
BLACK METALLC,TRIM20
BLACK METALLC,TRIM1#,2#
58825APOCKET, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM1#,2#
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
58916MAT, BOX BOTTOM
58921CPLATE, BOX, UPPER NO.1
sub58921-47021
WHITE,TRIM1#,20
WHITE,TRIM1#,2#
WHITE,TRIM1#
BLACK METALLC,TRIM2#
BLACK METALLC,TRIM20
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58991BBRACKET, CONSOLE BOX MOUNTING, FRONT
58993BRACKET, CONSOLE BOX MOUNTING, REAR
7403
8615
9011908D23
main90119-08D23
9046705171
main90467-05171
9046705172
main90467-05172
9046805138
main90468-05138
9167380616
main91673-80616
9356054012
main93560-54012
19 parts on this diagram · 4 diagrams in section
