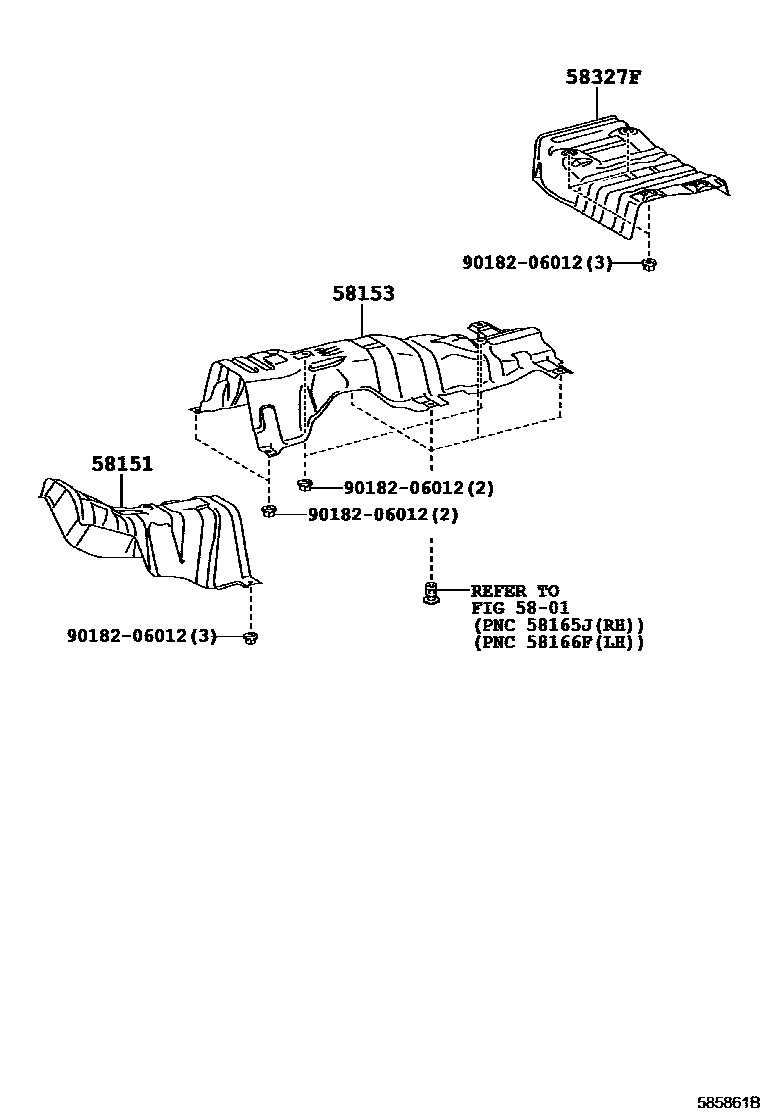

FLOOR INSULATOR

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-47060iZVW50201511-201812

main58151-47070iZVW50..GCC202002-202006

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-47050iZVW50201511-201812

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-47040iZVW50201511-201812

9018206012

main90182-06012

5 parts on this diagram · 1 diagram in section
