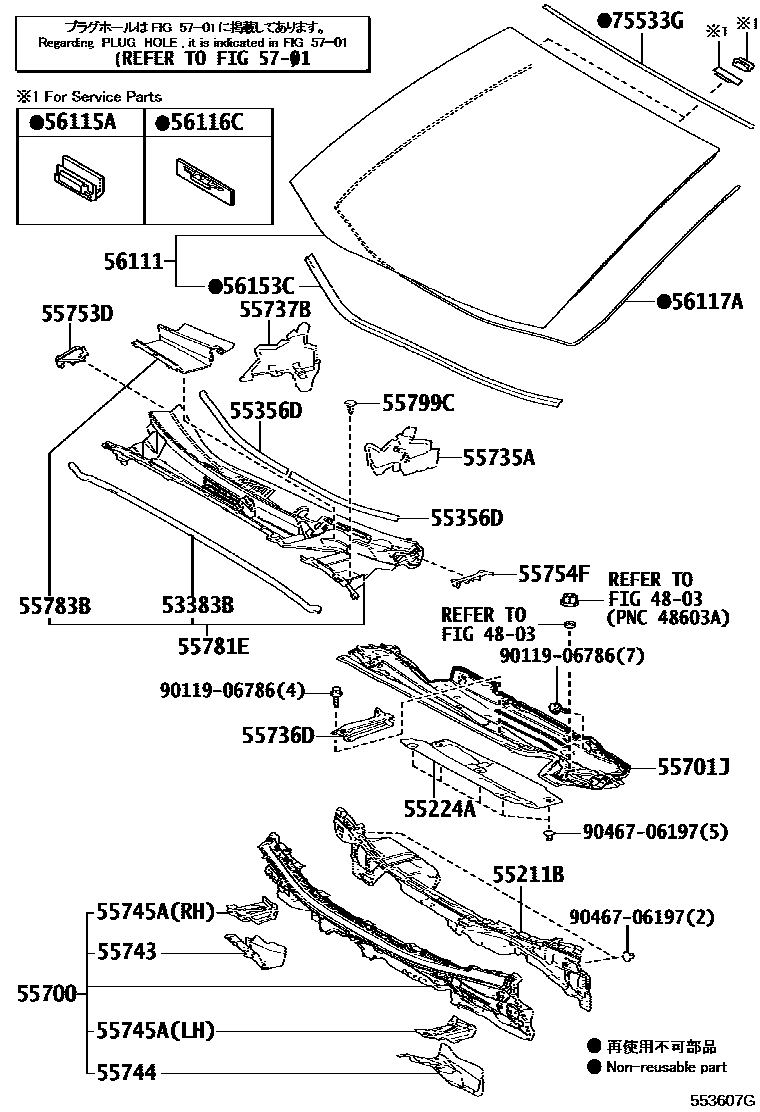

COWL PANEL & WINDSHIELD GLASS
4803FRONT SPRING & SHOCK ABSORBER
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55745AREINFORCEMENT, COWL TOP, INNER
RH
LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH
PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH
PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2947; *D,L=2947,PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH
56153CMOULDING, FRONT WINDOW, INNER CENTER
5701HOLE PLUG
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
main90119-06786
9046706197
main90467-06197
27 parts on this diagram · 3 diagrams in section
