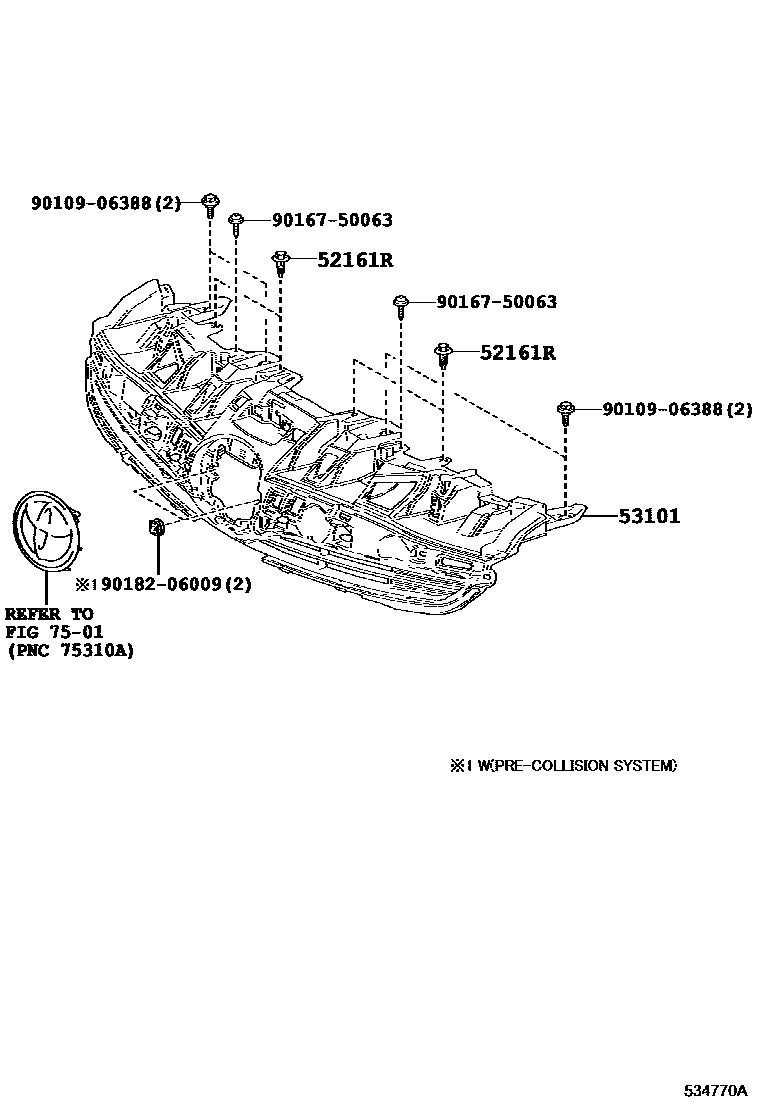

RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-16010×4iZVW50201511-201812

53101GRILLE SUB-ASSY, RADIATOR

main53101-47080iZVW50201511-201707

NO PAINT REQ.

main53101-47081iZVW50201708-201812

NO PAINT REQ.

main53101-47100iZVW50201812

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906388

main90109-06388

9016750063

main90167-50063

9018206009

main90182-06009

6 parts on this diagram · 2 diagrams in section
