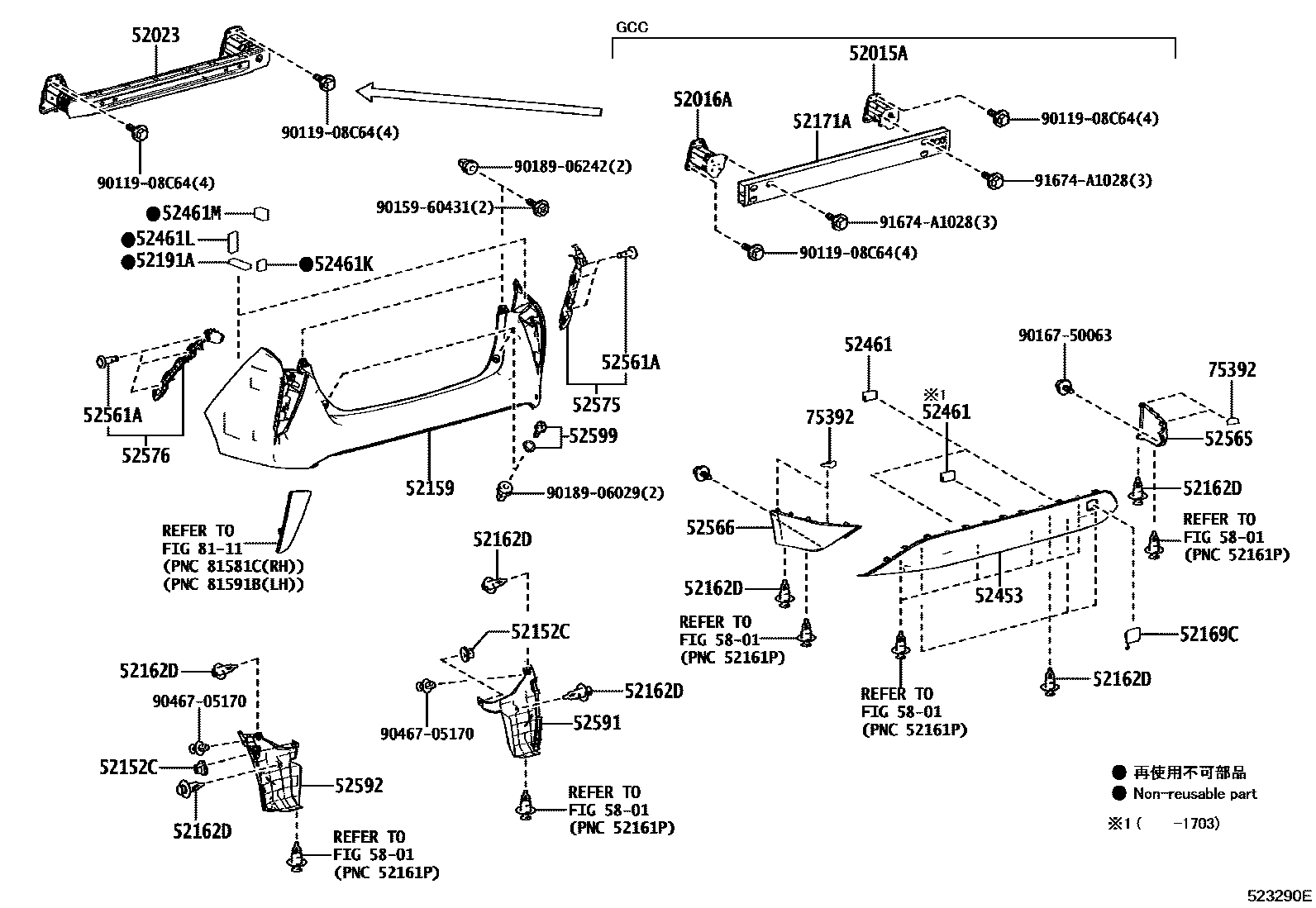

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47100iZVW50..GCC201511-201812

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-47080iZVW50..GCC201511-201812

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-47030iZVW50..ARL201511-201812

52152CCLIP, REAR BUMPER SIDE

main90467-06206-C0×2iZVW50201511-201812

BLACK

52159COVER, REAR BUMPER

main52159-47913iZVW50201511-201812

main52159-47927iZVW50201812

PAINT REQ.

52162DPIECE, REAR BUMPER

main52161-16010×10iZVW50201511-201812

52169CCOVER, REAR BUMPER, LOWER

main52169-47020iZVW50201511-201812

NO PAINT REQ.

main52169-47070iZVW50201812

NO PAINT REQ.

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-47080iZVW50..GCC201511-201812

52191ASEAL, REAR BUMPER ARM

main52191-47030×2iZVW50201511-201812

52453GUARD, REAR BUMPER, CENTER

main52453-47010iZVW50201511-201812

main52453-47900iZVW50201812

52461PAD, REAR BUMPER, CENTER

main52461-47010×3iZVW50201511-201703

52461KPAD, REAR BUMPER, NO.1

main52462-47010×2iZVW50201511-201812

main52462-47020×2iZVW50201812

52461LPAD, REAR BUMPER, NO.2

main52462-47020×2iZVW50201511-201812

main52462-47030×2iZVW50201812-202004

52461MPAD, REAR BUMPER, NO.3

main52462-47030×2iZVW50201511-201812

main52462-47130×2iZVW50201812

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-09237×6iZVW50201511-201812

52565FILLER, REAR BUMPER EXTENSION, RH

main52565-47900iZVW50201511-201812

52566FILLER, REAR BUMPER EXTENSION, LH

main52566-47900iZVW50201511-201812

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47040iZVW50201511-201812

main52575-47060iZVW50201812

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47040iZVW50201511-201812

main52576-47060iZVW50201812

52591SEAL, REAR BUMPER SIDE, RH

main52591-47050iZVW50201511-201812

main52591-47080iZVW50201812

52592SEAL, REAR BUMPER SIDE, LH

main52592-47040iZVW50201511-201812

main52592-47080iZVW50201812

52599STOPPER, REAR BUMPER, UPPER

main52599-68030×2iZVW50201511-201812

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

75392RETAINER, OUTSIDE MOULDING

main75392-35220×4iZVW50201511-201812

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

9011908C64

main90119-08C64

9015960431

main90159-60431

9016750063

main90167-50063

9018906029

main90189-06029

9018906242

main90189-06242

9046705170

main90467-05170

91674A1028

main91674-A1028

32 parts on this diagram · 2 diagrams in section
