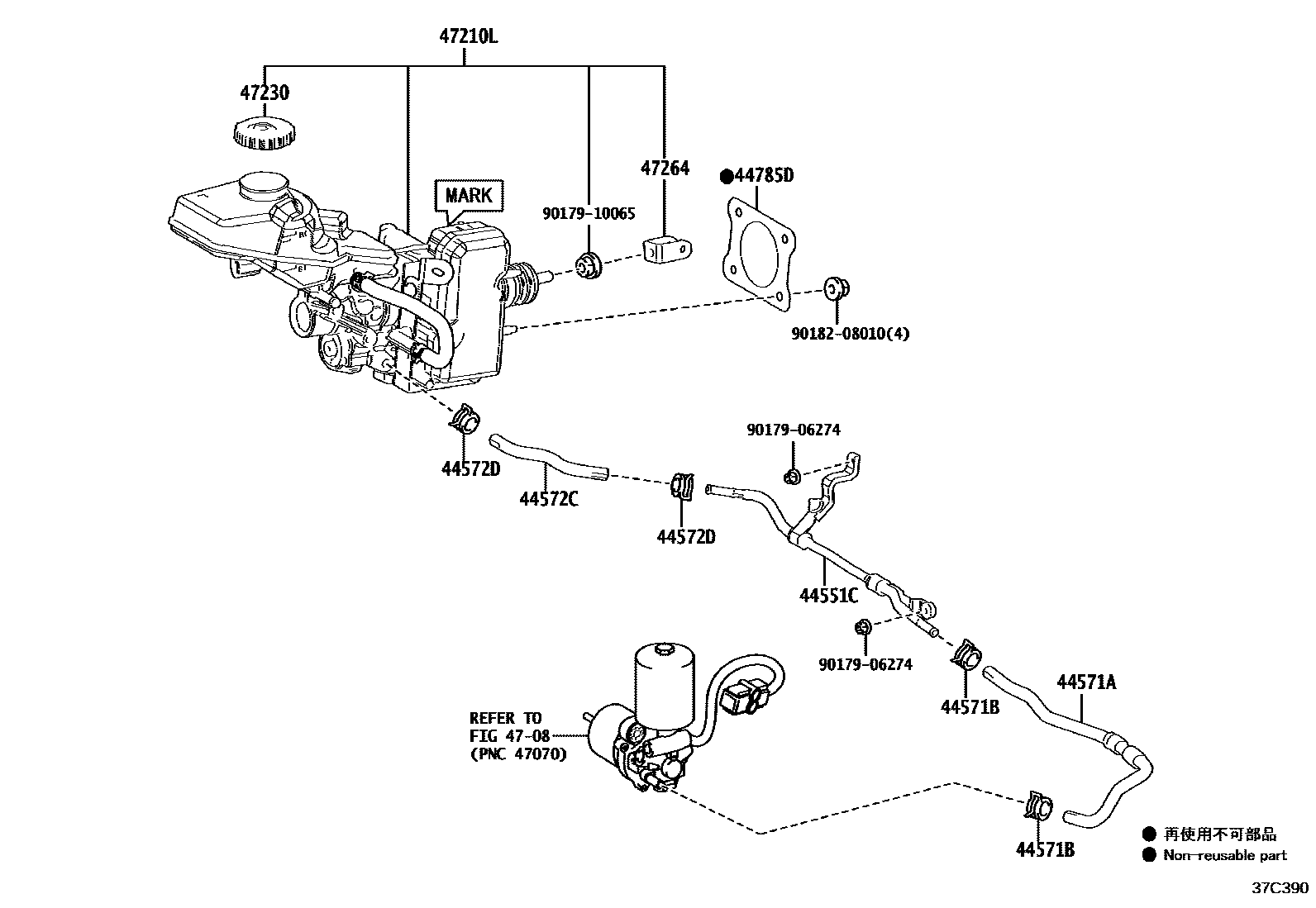

BRAKE MASTER CYLINDER

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-47050i201511-201812

main44551-47060i201511-201812

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-47070i201812-202006

main44571-47080i201511-201812

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501×2i201812

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-47050i201511-201812

main44572-47060i201511-201812

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501×2i201812-202006

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040i201812-202006

4708BRAKE TUBE & CLAMP

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47580supersedes 47050-47E20i201511-201710

FRONT WHEEL BRAKE-PAD MARK = AK NS369H

main47050-47581supersedes 47050-47E20i201711-201812

FRONT WHEEL BRAKE-PAD MARK = AK NS369H

main47050-47640supersedes 47050-47C40i201511-201710

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)

main47050-47641supersedes 47050-47C40i201711-201812

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM)

main47050-47C20supersedes 47050-47E20i201904-202006

FRONT WHEEL BRAKE-PAD MARK = AK NS369H,MARK=47210-47C40

main47050-47C70supersedes 47050-47E50i201904-202007

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM),MARK=47210-47C50

main47050-47E30supersedes 47050-47E20i201904-202006

FRONT WHEEL BRAKE-PAD MARK = AK NS369H,MARK=47210-47C20

main47050-47E80supersedes 47050-47E50i201904-202007

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM),MARK=47210-47C30

main47050-47J20supersedes 47050-47G90i202007

ROUGH ROAD AREA SPEC(HEIGHT UP +20MM),MARK=47210-47D80

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33330i202002-202006

main47230-47090i201511-201812

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-47010i201511-201812

9017906274

9017910065

9018208010

13 parts on this diagram · 2 diagrams in section
