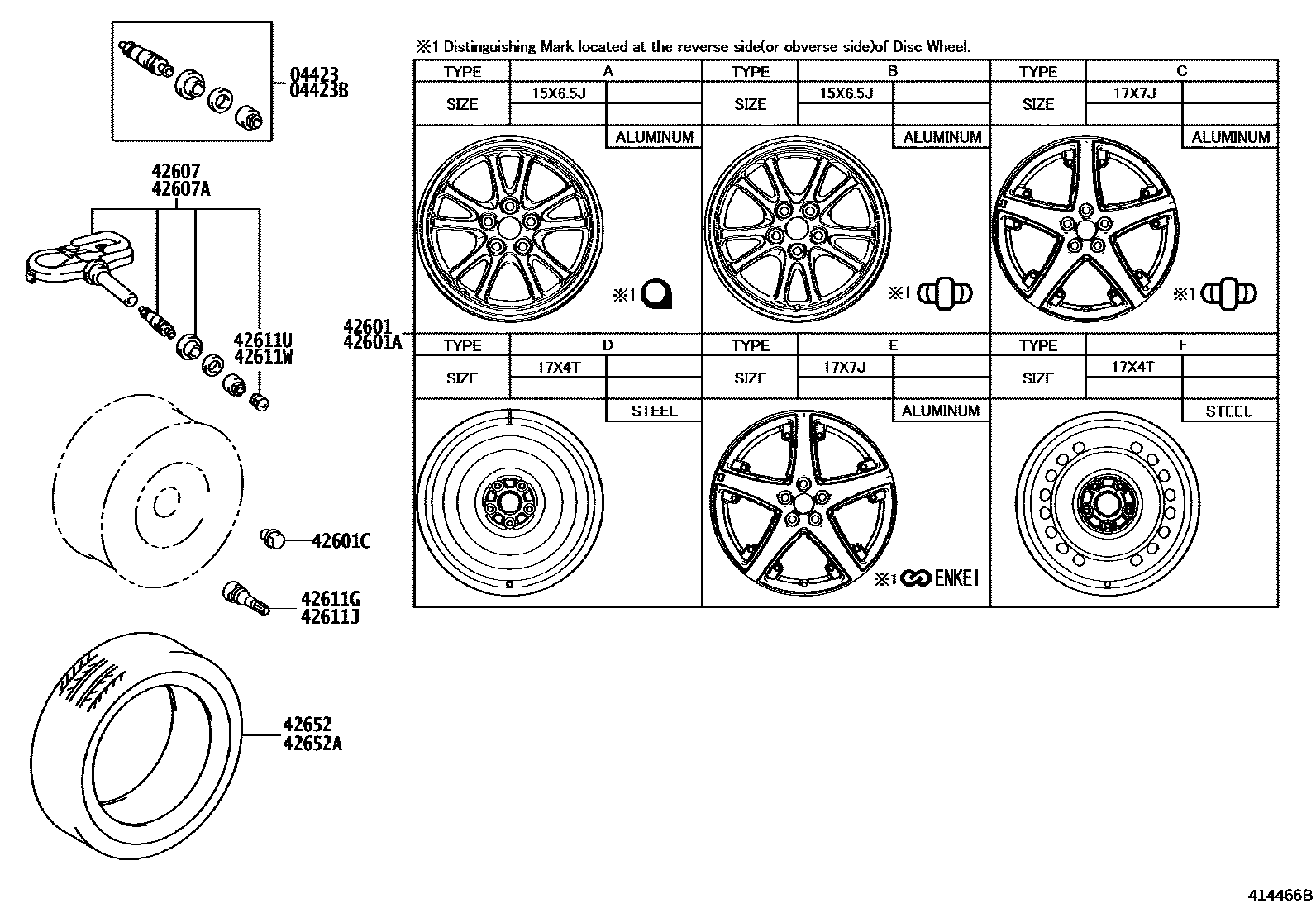

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
15X6.5J, #,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),TYPE A:REFER ILLUST.
15X6.5J, #,TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
15X6.5J, #,TYPE A:REFER ILLUST.
15X6.5J, #,TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
15X6.5J, #,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),TYPE A:REFER ILLUST.
15X6.5J, #,TYPE A:REFER ILLUST.
15X6.5J, #,TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
15X6.5J, #,TYPE B:REFER ILLUST.
15X6.5J, #,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),TYPE B:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
15X6.5J, #,TYPE A:REFER ILLUST.
15X6.5J, #,TYPE B:REFER ILLUST.
15X6.5J, #,TIRE & DISC WHEEL-195/65R15,6.5J,ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
17X4T,SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
17X4T,TYPE D:REFER ILLUST.
17X4T,FRONT SEAT-DRIVER(8-WAY),TYPE F:REFER ILLUST.
17X4T,TYPE F:REFER ILLUST.
17X4T,SPARE TIRE-GROUND TIRE,TYPE F:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611GVALVE (FOR TUBELESS TIRE)
TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM&SPARE TIRE-GROUND TIRE
TIRE & DISC WHEEL-195/65R15,6.5J,ALUMI,GENERAL COUNTRIES&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
42611JVALVE (FOR TUBELESS TIRE SPARE)
SPARE TIRE-GROUND TIRE
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
42652TIRE
195/65R15,GOODYEAR
195/65R15,GOODYEAR
195/65R15,*Y/H
195/65R15,*Y/H
195/65R15,*T/Y
42652ATIRE (FOR SPARE)
195/65R15,GOODYEAR
195/65R15,GOODYEAR
195/65R15,*Y/H
195/65R15,*Y/H
T125/70D17,*B/S
T125/70D17,*B/S,SPARE TIRE-GROUND TIRE
T125/70D17,FALKEN
T125/70D17,FALKEN,SPARE TIRE-GROUND TIRE
13 parts on this diagram · 3 diagrams in section
