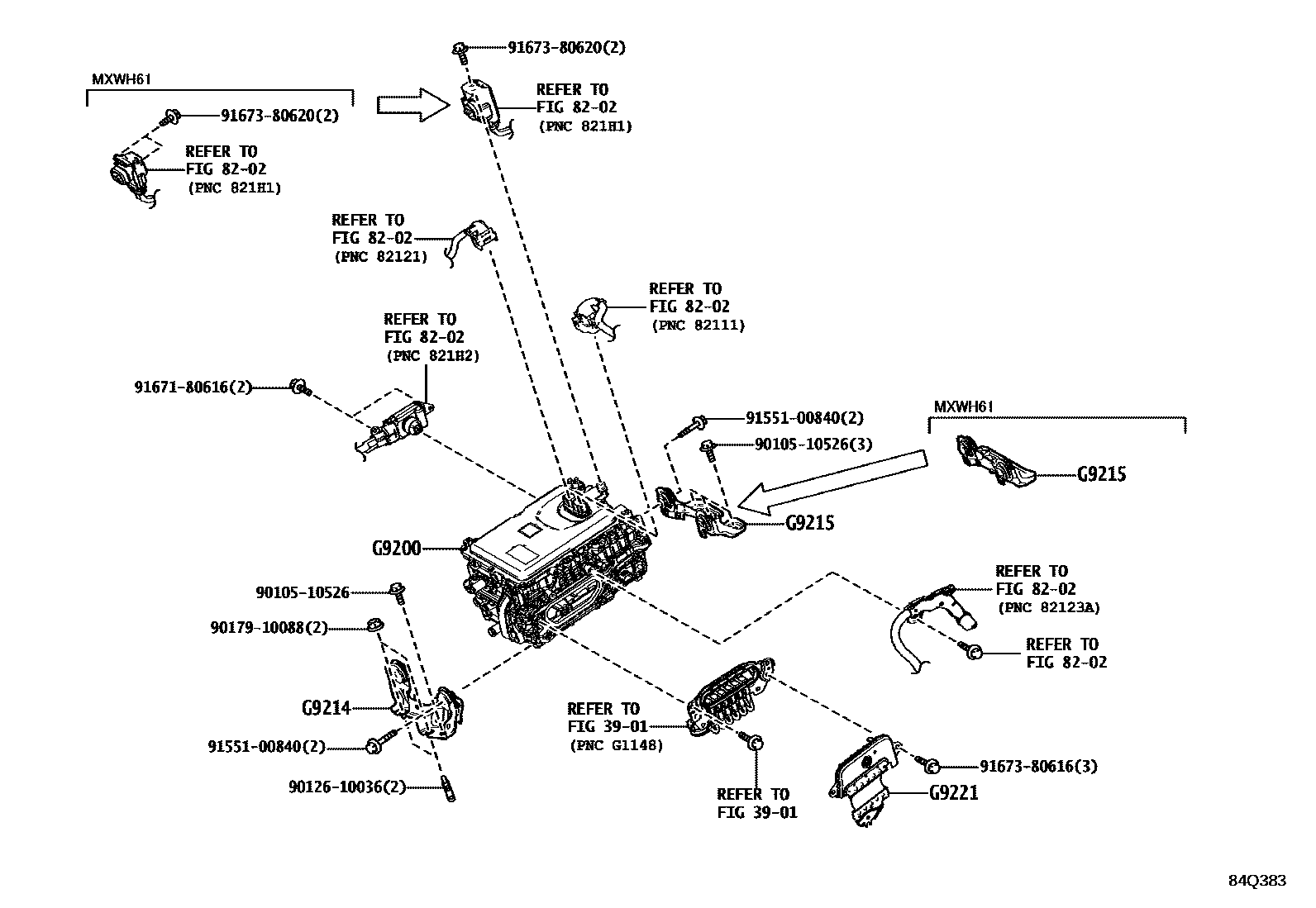

HEV INVERTER

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG92A047200iMXWH61202303-202310

mainG92A047201iMXWH61202310

mainG92A047220iZVW60202212

G9214BRACKET, INVERTER, NO.1

mainG921428090iZVW60202212

mainG921463010iMXWH61202303

G9215BRACKET, INVERTER, NO.2

mainG921528050iZVW60202212

mainG921547060iMXWH61202303

G9221COVER, INVERTER

mainG902228030iMXWH61,ZVW60202212

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167180616

main91671-80616

9167380616

main91673-80616

9167380620

main91673-80620

13 parts on this diagram · 2 diagrams in section
