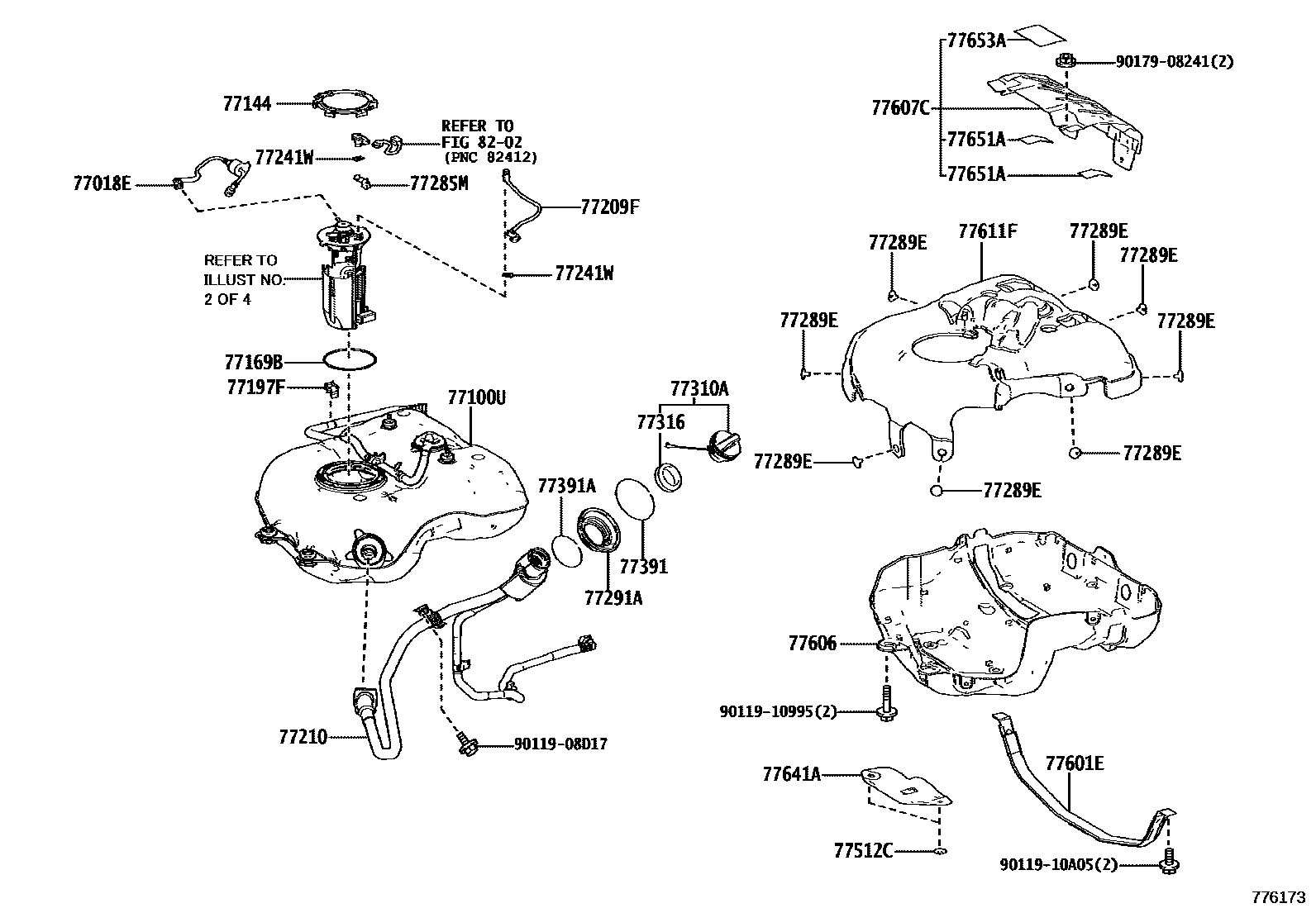

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-47010iMXWH61202303

77100UTANK SUB-ASSY, FUEL

main77001-47300iMXWH61202303

main77001-47320iZVW60202212

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXWH61,ZVW60202212

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47030iMXWH61202303

main77169-47040iZVW60202212

77197FCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-47080iMXWH61202303

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-47140iMXWH61202303

main77209-76050iZVW60202212

77210PIPE ASSY, FUEL TANK FILLER

main77210-47520iMXWH61202303

77241WCLIP, TUBE JOINT

main77241-33011×2iMXWH61202303-202312

main77241-60550iZVW60202212

77285MCLAMP, FUEL TUBE, NO.1

main77285-47170iMXWH61202303

77289ECLAMP, FUEL TANK, NO.1

main77289-47050×8iMXWH61202303

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47050iMXWH61,ZVW60202212

77310ACAP ASSY, FUEL TANK

main77300-12020iZVW60202212

main77300-33040iMXWH61202303

77316GASKET, FUEL TANK CAP

main77316-52040iZVW60202212

main77316-75020iMXWH61202303

77391RING, FUEL INLET BOX

main77391-47050iMXWH61,ZVW60202212

77391ARING, FUEL INLET BOX

main77391-12020iMXWH61,ZVW60202212

77512CBRACKET, FUEL TANK

main77512-35140×4iZVW60202212

77601EBAND SUB-ASSY, FUEL TANK

main77601-47130iMXWH61202303

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-47070iMXWH61202303

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-47010iMXWH61202303

77611FCOVER, FUEL TANK, UPPER

main77611-47130iMXWH61202303

77641APROTECTOR, FUEL TANK, NO.1

main77641-47070iZVW60202212

main77641-47150iMXWH61202303

77651ACUSHION, FUEL TANK, NO.1

main77651-47050×2iMXWH61202303

77653ACUSHION, FUEL TANK, NO.3

main77653-60060iMXWH61202303

8202WIRING & CLAMP

→ Go to FIG 82-02

9011908D17

main90119-08D17

9011910995

main90119-10995

9011910A05

main90119-10A05

9017908241

main90179-08241

28 parts on this diagram · 9 diagrams in section
