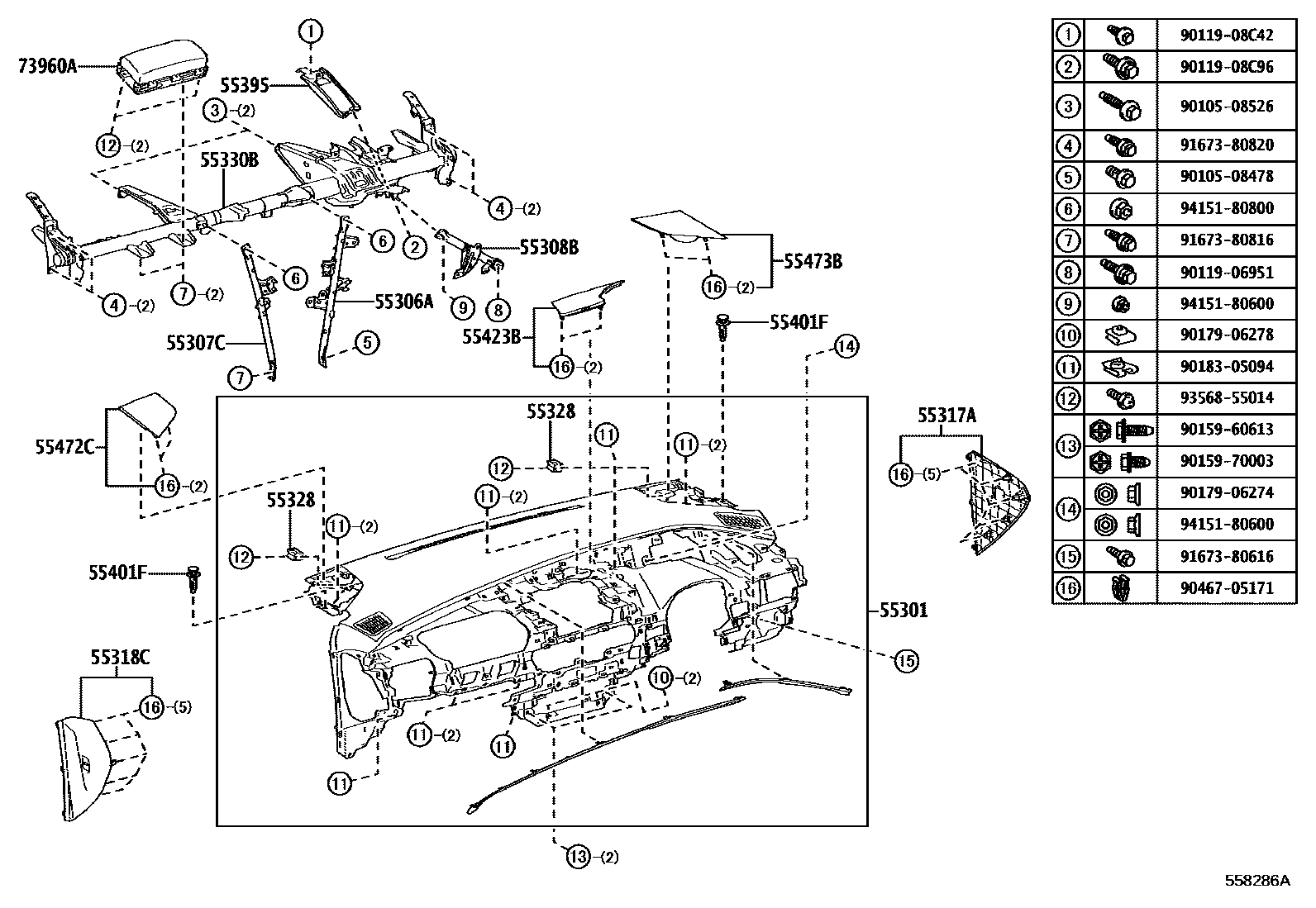

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55300-47230-B1iMXWH61..LHD..E202303

DK.GRAY,TRIM20

main55300-47230-B1iZVW60..LHD202212

DK.GRAY,TRIM1#,2#

main55300-47230-B1iMXWH61..LHD..H202303

DK.GRAY,TRIM1#,20

main55300-47230-C1iMXWH61..LHD202303

BLACK,TRIM22

main55300-47240-B1iMXWH61..RHD..E202303

DK.GRAY,TRIM20

main55300-47240-B1iZVW60..RHD202212

DK.GRAY,TRIM1#,2#

main55300-47240-B1iMXWH61..RHD..H202303

DK.GRAY,TRIM1#,20

main55300-47240-C1iMXWH61..RHD202303

BLACK,TRIM22

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47170iMXWH61,ZVW60..LHD202212

main55306-47180iMXWH61,ZVW60..RHD202212

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47100iMXWH61,ZVW60..LHD202212

main55307-47110iMXWH61,ZVW60..RHD202212

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-47080iMXWH61,ZVW60..LHD202212

main55308-47090iMXWH61,ZVW60..RHD202212

55317APANEL, INSTRUMENT SIDE, RH

main55317-47080-C0iZVW60;MXWH61..RHD..H202212

BLACK,TRIM1#,2#

main55317-47080-C0iMXWH61..RHD..E202303

BLACK,TRIM2#

main55317-47080-C0iMXWH61..RHD..E202303

TAIWAN SPEC,BLACK,TRIM1#,2#

main55317-47090-C0iMXWH61..LHD..H202303

BLACK,TRIM1#,2#

main55317-47090-C0iMXWH61..LHD..H202303

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-47080-C0iZVW60;MXWH61..LHD..H202212

BLACK,TRIM1#,2#

main55318-47080-C0iMXWH61..LHD..E202303

BLACK,TRIM2#

main55318-47090-C0iMXWH61..RHD..H202303

BLACK,TRIM1#,2#

main55318-47090-C0iMXWH61..RHD..H202303

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iMXWH61,ZVW60202212

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47200iMXWH61,ZVW60..RHD202212

main55330-47210iMXWH61,ZVW60..LHD202212

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-47030iMXWH61,ZVW60..LHD202212

main55395-47040iMXWH61,ZVW60..RHD202212

55401FCLIP(FOR SAFETY PAD)

main52161-16010iMXWH61,ZVW60202212

sub52161-0K040

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-47030iZVW60..LHD202212

main55423-47040iMXWH61..LHD202303

main55423-47050iZVW60..RHD202212

main55423-47060iMXWH61..RHD202303

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-47090-B0iMXWH61..H202303

DK.GRAY,TRIM20

main55472-47090-B0iZVW60202212

DK.GRAY,TRIM1#,2#

main55472-47090-B0iMXWH61..H202303

DK.GRAY,TRIM1#,20

main55472-47090-C0iMXWH61202303

BLACK,TRIM22

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-47080-B0iMXWH61..H202303

DK.GRAY,TRIM1#,20

main55473-47080-B0iMXWH61..H202303

DK.GRAY,TRIM20

main55473-47080-B0iZVW60202212

DK.GRAY,TRIM1#,2#

main55473-47080-C0iMXWH61202303

BLACK,TRIM22

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47170iMXWH61,ZVW60202212

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9011908C42

main90119-08C42

9011908C96

main90119-08C96

9015960613

main90159-60613

9015970003

main90159-70003

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9167380820

main91673-80820

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

31 parts on this diagram · 8 diagrams in section
