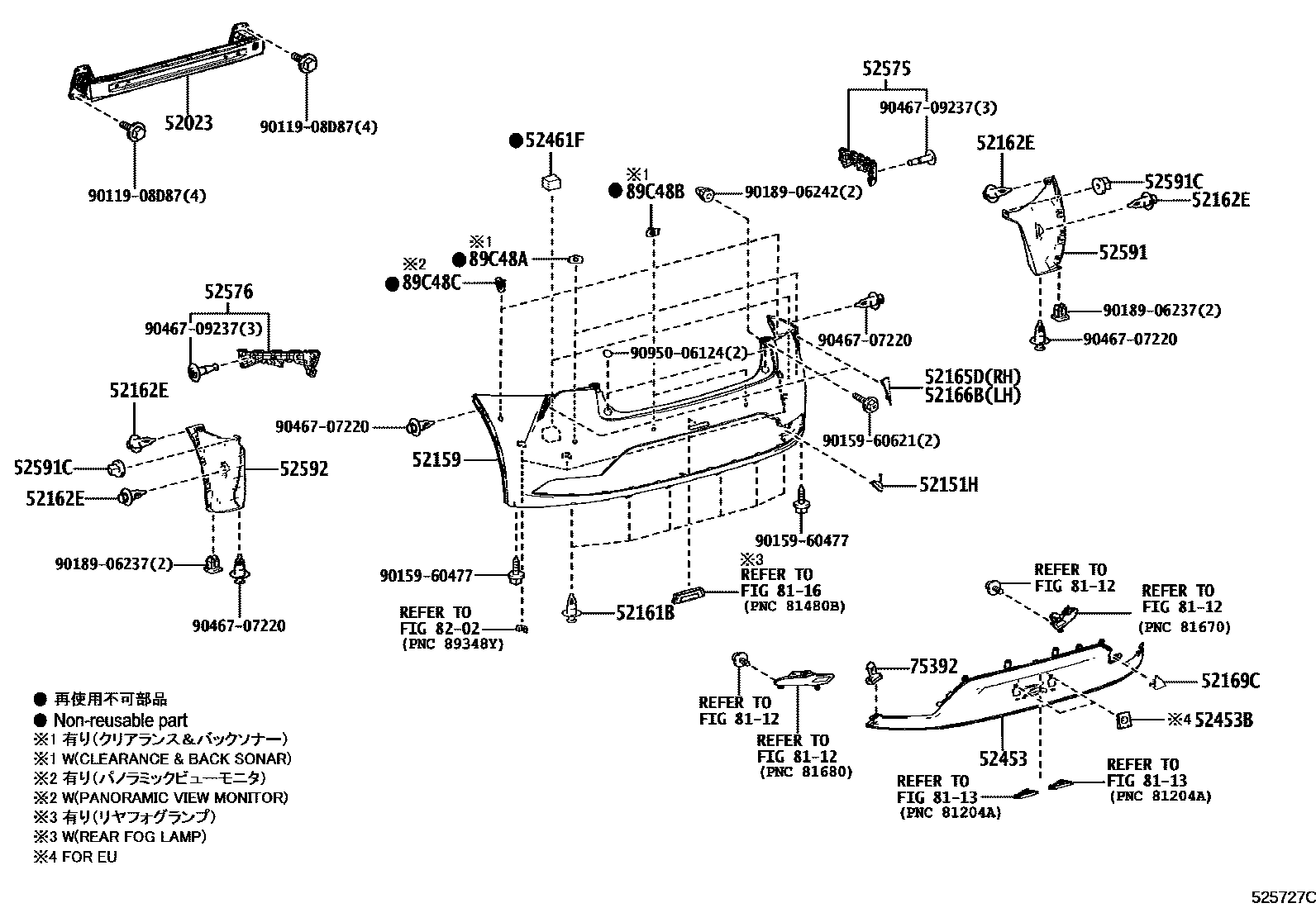

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52151HCOVER, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.; PAINT REQ.,CAMBODIA SPEC&&PARKING SUPPORT ALT/BRK-WITHOUT; PAINT REQ.,LAOS SPEC&&PARKING SUPPORT ALT/BRK-WITHOUT; PAINT REQ.,MONGOLIA SPEC&&PARKING SUPPORT ALT/BRK-WITHOUT; PAINT REQ.,PARKING SUPPORT ALT/BRK-WITHOUT; PAINT REQ.,VIETNAM SPEC&&PARKING SUPPORT ALT/BRK-WITHOUT
PAINT REQ.; PAINT REQ.,PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)
PAINT REQ.,ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION); PAINT REQ.,BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
52161BPIECE, REAR BUMPER
52162EPIECE, REAR BUMPER
52165DEXTENSION, REAR BUMPER CORNER, RH
52166BEXTENSION, REAR BUMPER CORNER, LH
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ.,PRECIOUS BLACK
52453GUARD, REAR BUMPER, CENTER
PRECIOUS BLACK
52453BNUT
CAMBODIA SPEC&&PARKING SUPPORT ALT/BRK-WITHOUT; LAOS SPEC&&PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE); LAOS SPEC&&PARKING SUPPORT ALT/BRK-WITHOUT; MONGOLIA SPEC&&PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE); MONGOLIA SPEC&&PARKING SUPPORT ALT/BRK-WITHOUT; VIETNAM SPEC&&PARKING SUPPORT ALT/BRK-WITHOUT
52461FPAD, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
BLACK
52592SEAL, REAR BUMPER SIDE, LH
75392RETAINER, OUTSIDE MOULDING
8112BACK UP LAMP
8113REAR LICENSE PLATE LAMP
8116REAR FOG LAMP
8202WIRING & CLAMP
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)
89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),LH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),PLATINUM WHITE PEARL MC.,089,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0,LH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ASH,1M2 ,2XU,LH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ATTITUDE BLACK MC.,218,LH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),EMOTIONAL RED 2,2SC ,3U5,LH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),MUSTARD,2XV ,5C5,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.BLUE,8Q4,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089,RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0,RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),ASH,1M2 ,2XU,RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ATTITUDE BLACK MC.,218,RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),EMOTIONAL RED 2,2SC ,3U5,RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),MUSTARD,2XV ,5C5,RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),DK.BLUE,8Q4,RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089,LH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0,LH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ASH,1M2 ,2XU,LH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ASH,1M2 ,2XU,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ATTITUDE BLACK MC.,218,LH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ATTITUDE BLACK MC.,218,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),EMOTIONAL RED 2,2SC ,3U5,LH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),EMOTIONAL RED 2,2SC ,3U5,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),MUSTARD,2XV ,5C5,LH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),MUSTARD,2XV ,5C5,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.BLUE,8Q4,LH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.BLUE,8Q4,LH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089,RH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),PLATINUM WHITE PEARL MC.,089,RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0,RH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),SILVER ME.,1L0,RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ASH,1M2 ,2XU,RH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ASH,1M2 ,2XU,RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ATTITUDE BLACK MC.,218,RH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),ATTITUDE BLACK MC.,218,RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),EMOTIONAL RED 2,2SC ,3U5,RH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),EMOTIONAL RED 2,2SC ,3U5,RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),MUSTARD,2XV ,5C5,RH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),MUSTARD,2XV ,5C5,RH
ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.BLUE,8Q4,RH; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),DK.BLUE,8Q4,RH
9011908D87
main90119-08D87
9015960477
main90159-60477
9015960621
main90159-60621
9018906237
main90189-06237
9018906242
main90189-06242
9046707220
main90467-07220
9046709237
main90467-09237
9095006124
main90950-06124
32 parts on this diagram · 1 diagram in section
