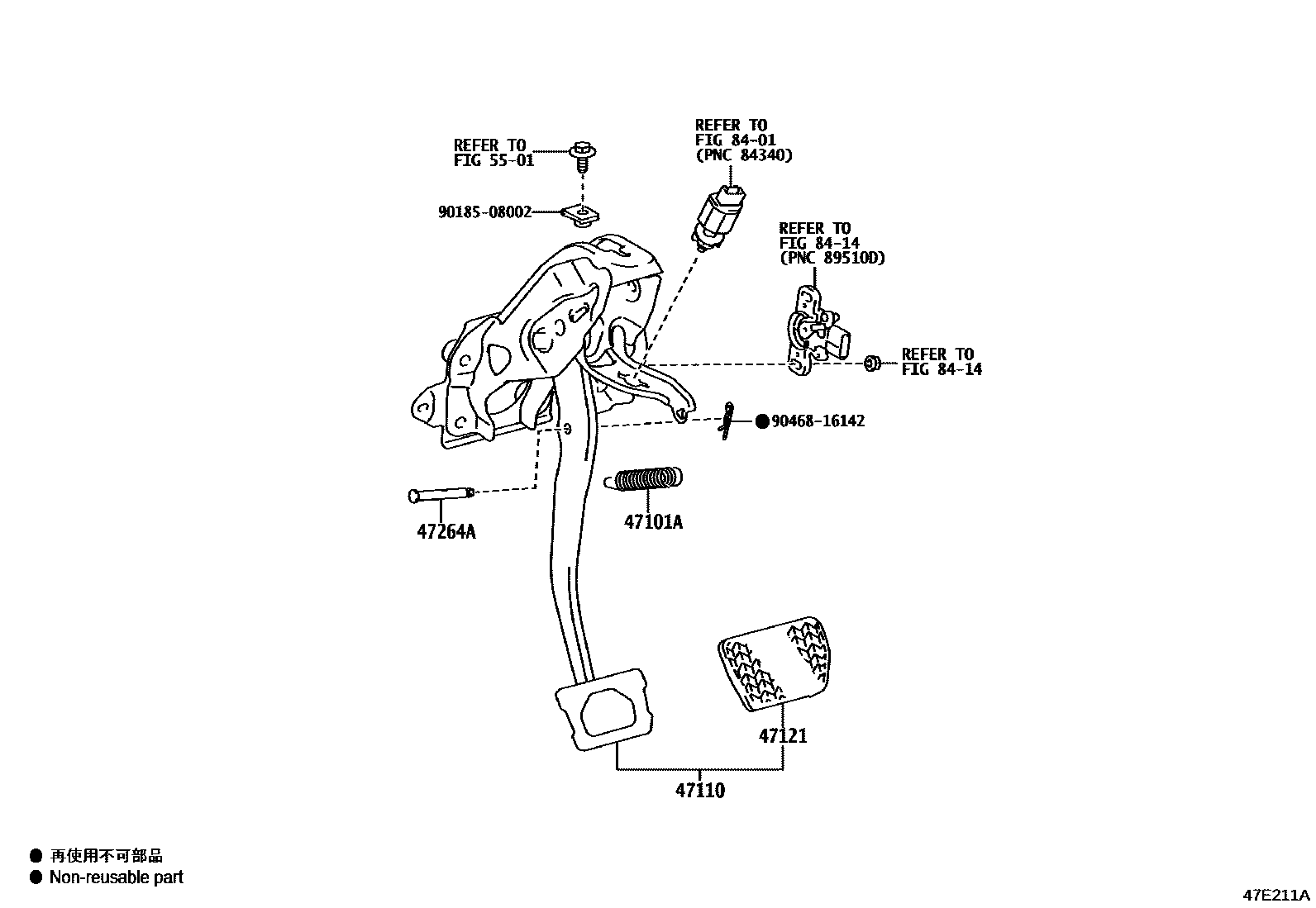

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-20036iMXWH61,ZVW60202212

47110SUPPORT ASSY, BRAKE PEDAL

main47110-47110iMXWH61,ZVW60..LHD202212

main47110-47120iMXWH61,ZVW60..RHD202212

47121PAD, BRAKE PEDAL

main47121-16020iMXWH61,ZVW60202212

47264APIN(FOR PUSH ROD)

main90249-08221iMXWH61,ZVW60202212

5501

8401

8414

9018508002

main90185-08002

9046816142

main90468-16142

9 parts on this diagram · 2 diagrams in section
