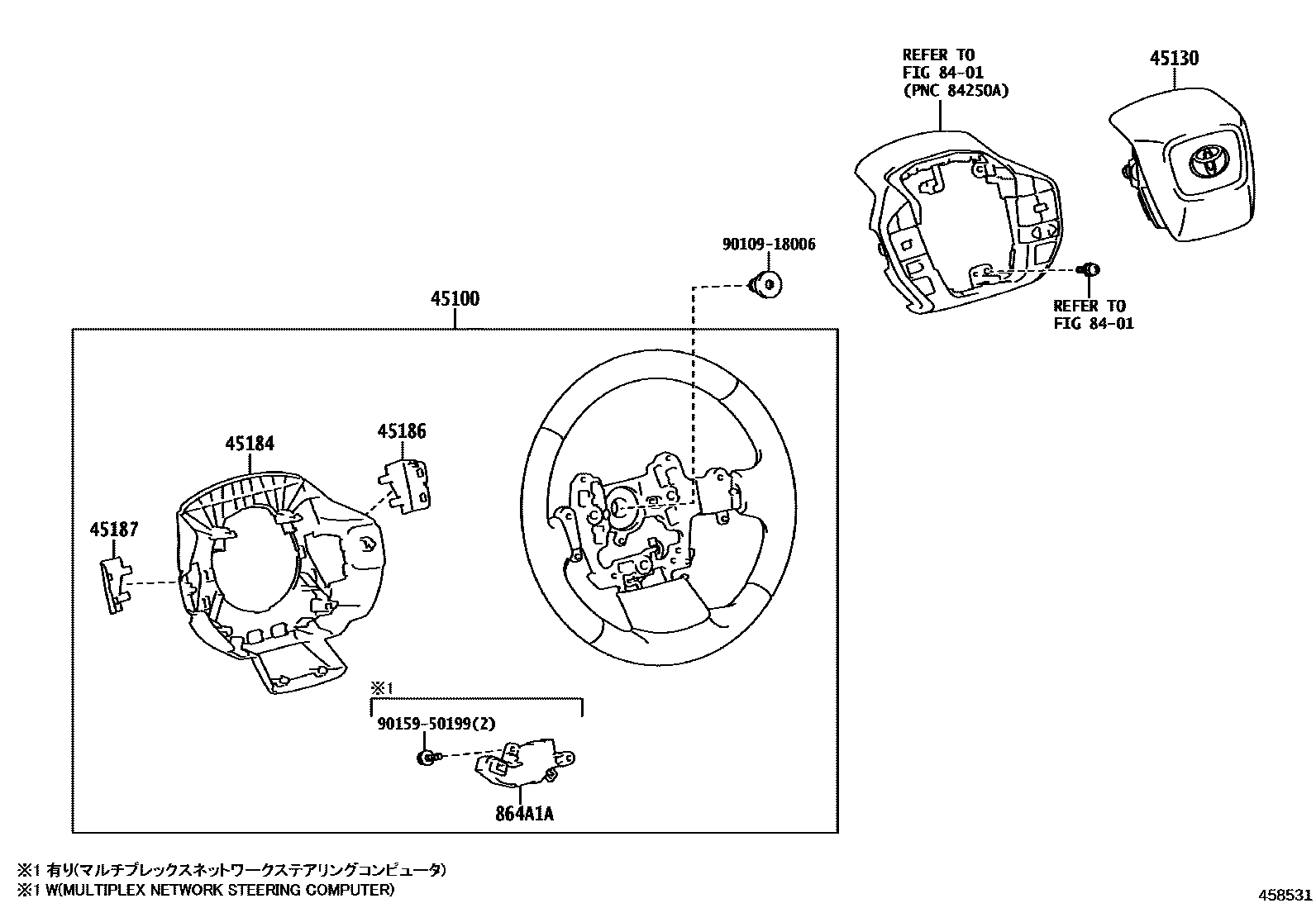

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-47290-C0supersedes 45100-47312-C0i202212

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

main45100-47310-C0i202303-202304

3-SPOKE,LEATHER,BLACK,TRIM1#,20; 3-SPOKE,LEATHER,BLACK,TRIM20

main45100-47310-C1i202303-202304

3-SPOKE,LEATHER,BLACK,TRIM22

main45100-47311-C0i202305-202308

3-SPOKE,LEATHER,BLACK,TRIM1#,20; 3-SPOKE,LEATHER,BLACK,TRIM20

main45100-47311-C1i202305-202308

3-SPOKE,LEATHER,BLACK,TRIM22

main45100-47312-C0i202309-202311

3-SPOKE,LEATHER,BLACK,TRIM1#,2#; 3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-47290-C1i202303

3-SPOKE,LEATHER,AZORES,MADEIRA SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC,BLACK,TRIM22; 3-SPOKE,LEATHER,EURO WITHOUT TSS EXPAND SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC,BLACK,TRIM22; 3-SPOKE,LEATHER,ISRAEL SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC,BLACK,TRIM22

main45100-47300-C0supersedes 45100-47312-C0i202303-202507

3-SPOKE,LEATHER,AZORES,MADEIRA SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE),BLACK,TRIM1#,20; 3-SPOKE,LEATHER,EURO WITHOUT TSS EXPAND SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLDAREA SPEC(EUROPE),BLACK,TRIM1#,20; 3-SPOKE,LEATHER,ISRAEL SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE),BLACK,TRIM1#,20; 3-SPOKE,LEATHER,TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE),BLACK,TRIM1#,20

main45100-47300-C1supersedes 45100-47312-C1i202303-202507

3-SPOKE,LEATHER,AZORES,MADEIRA SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE),BLACK,TRIM22; 3-SPOKE,LEATHER,EURO WITHOUT TSS EXPAND SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLDAREA SPEC(EUROPE),BLACK,TRIM22; 3-SPOKE,LEATHER,ISRAEL SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE),BLACK,TRIM22; 3-SPOKE,LEATHER,TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE),BLACK,TRIM22

main45100-47320-C0supersedes 45100-47312-C0i202303-202304

3-SPOKE,LEATHER,COLD AREA SPEC(EUROPE),BLACK,TRIM1#,20

main45100-47320-C1supersedes 45100-47312-C1i202303-202304

3-SPOKE,LEATHER,COLD AREA SPEC(EUROPE),BLACK,TRIM22

main45100-47321-C0supersedes 45100-47312-C0i202305-202308

3-SPOKE,LEATHER,COLD AREA SPEC(EUROPE),BLACK,TRIM1#,20

main45100-47321-C1supersedes 45100-47312-C1i202305-202308

3-SPOKE,LEATHER,COLD AREA SPEC(EUROPE),BLACK,TRIM22

main45100-47322-C0supersedes 45100-47312-C0i202309-202507

3-SPOKE,LEATHER,COLD AREA SPEC(EUROPE),BLACK,TRIM1#,20

main45100-47322-C1supersedes 45100-47312-C1i202309-202507

3-SPOKE,LEATHER,COLD AREA SPEC(EUROPE),BLACK,TRIM22

45130BUTTON ASSY, HORN

main45130-47260-C0i202212-202408

BLACK,TRIM1#,2#

main45130-47261-C0i202409

BLACK,TRIM1#,2#; BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-47030-C0i202212

BLACK,TRIM1#,2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-47060-C0i202212

BLACK,TRIM1#,2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-47020-C0i202212

BLACK,TRIM1#,2#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-47010supersedes 864A1-47021i202303-202507

AZORES,MADEIRA SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE); EURO WITHOUT TSS EXPAND SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE); ISRAEL SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE); TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC&COLD AREA SPEC(EUROPE)

main864A1-47020supersedes 864A1-47021i202303-202308

AZORES,MADEIRA SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC; EURO WITHOUT TSS EXPAND SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC; ISRAEL SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC; TAIWAN SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC

main864A1-47021i202309

AZORES,MADEIRA SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC; EURO WITHOUT TSS EXPAND SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC; ISRAEL SPEC&ACTIVE SAFETY PACKAGE-TSS3 BASIC

main864A1-47030supersedes 864A1-47021i202303-202307

COLD AREA SPEC(EUROPE)

main864A1-47031supersedes 864A1-47021i202307-202507

COLD AREA SPEC(EUROPE)

9010918006

main90109-18006

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
