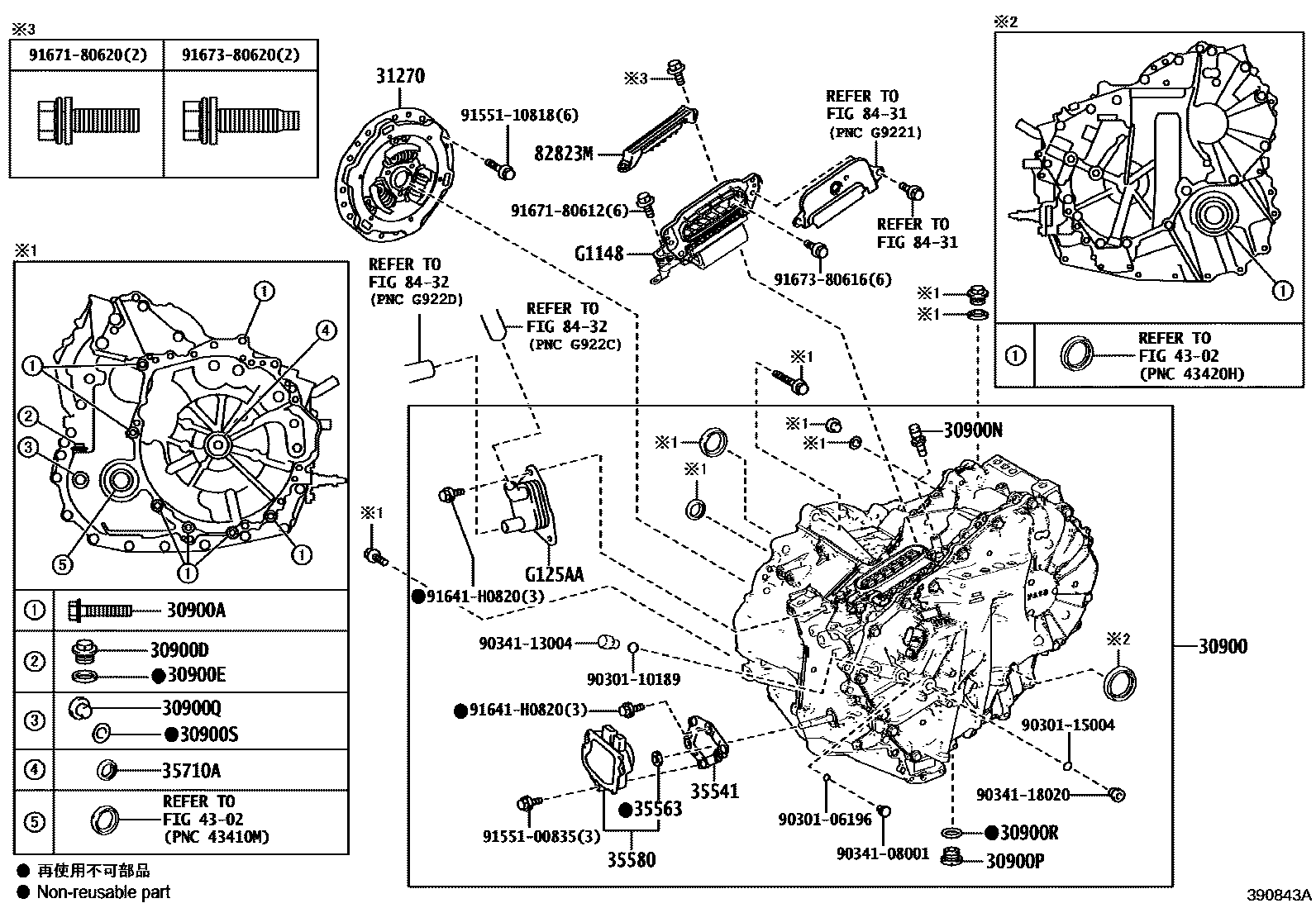

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-47210iMXWH61202303

main30900-47220iZVW60202212

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main91612-61045iZVW60202212

*10-1.25PX45-30

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMXWH61,ZVW60202212

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMXWH61,ZVW60202212

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMXWH61,ZVW60202212

30900PPLUG, DRAIN(HEV)

main90341-18016iMXWH61,ZVW60202212

30900QPLUG, FILLER(HEV)

main90341-18090iMXWH61,ZVW60202212

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMXWH61,ZVW60202212

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMXWH61,ZVW60202212

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-28020iZVW60202212

main31270-63010iMXWH61202303

35541BRACKET, SHIFT CONTROL ACTUATOR

main35541-28020iZVW60202212

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-52010iMXWH61,ZVW60202212

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-52011iMXWH61,ZVW60202212

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25035iZVW60202212

main90311-27012iMXWH61202303

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

82823MCAP, TERMINAL

main82823-28110iMXWH61,ZVW60202212

8431HEV INVERTER

→ Go to FIG 84-31

8432INVERTER COOLING

→ Go to FIG 84-32

G1148CABLE, MOTOR

mainG114828040iZVW60202212-202409

mainG114828041iZVW60202410

mainG114863010iMXWH61202303-202411

mainG114863011iMXWH61202412

G125AACOOLER, MOTOR COOLING

mainG125A28010iZVW60202212

mainG125A63010iMXWH61202303

9030106196

main90301-06196

9030110189

main90301-10189

9030115004

main90301-15004

9034108001

main90341-08001

9034113004

main90341-13004

9034118020

main90341-18020

9155100835

main91551-00835

9155110818

main91551-10818

91641H0820

main91641-H0820

9167180612

main91671-80612

9167180620

main91671-80620

9167380616

main91673-80616

9167380620

main91673-80620

33 parts on this diagram · 2 diagrams in section
