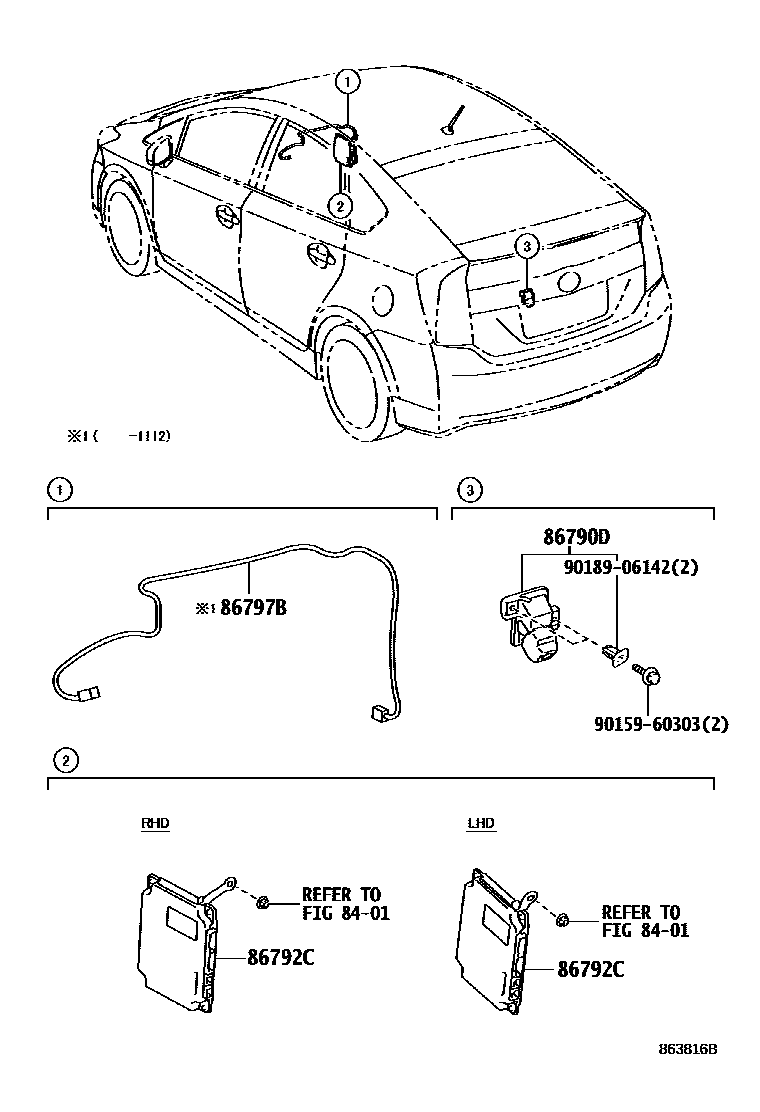

CAMERA & REAR MONITOR DISPLAY

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86790DCAMERA ASSY, TELEVISION, RR

main86790-47040i201112

86792CCOMPUTER, PARKING ASSIST

main86792-47100i200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER

main86792-47110i200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER

main86792-47120i200904-201112

HEADLAMP-LED&AUDIO-AVN,BLUETOOTH,8SPEAKER

main86792-47130i200904-201112

HEADLAMP-LED&AUDIO-AVN,BLUETOOTH,8SPEAKER

main86792-47140i200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER

main86792-47150i200904-201112

HEADLAMP-LED&AUDIO-AVN,BLUETOOTH,8SPEAKER

main86792-47180i200904-201112

TAIWAN SPEC&HEADLAMP-LED&AUDIO-AV,BLUETOOTH,8SPEAKER

main86792-47250i201112-201210

HEADLAMP-LED&AUDIO-AVN(FOR ASIA) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN

main86792-47260i201112-201511

AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN; HEADLAMP-LED&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN; HEADLAMP-LED&AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN; TAIWAN SPEC&HEADLAMP-LED&AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN

86797BWIRE, PARKING ASSIST

main86797-47050i200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER; HEADLAMP-LED&AUDIO-AVN,BLUETOOTH,8SPEAKER

9015960303

main90159-60303

9018906142

main90189-06142

6 parts on this diagram · 1 diagram in section
