REAR WIPER

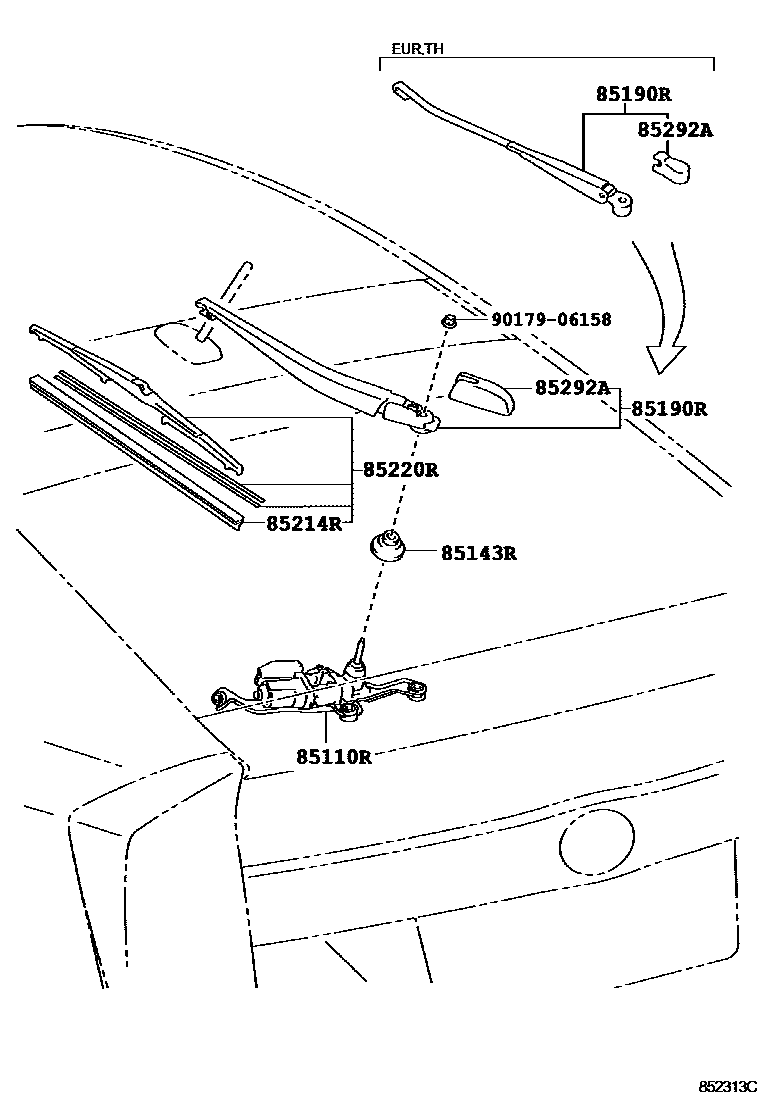

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-47020i200904-200911

main85130-47021i201012-201204

85143RGROMMET, REAR WIPER MOTOR

main85143-72010i200904-201112

85190RARM ASSY, REAR WIPER

main85241-28120i201112

main85241-47040i201012-201204

85214RRUBBER, REAR WIPER

main85214-10100i200904-201112

main85214-50061i200904-201112

85220RBLADE ASSY, REAR WIPER

main85242-47030i200904-201112

main85242-47040i200904-201112

85292ACAP, REAR WIPER ARM HEAD

main85192-13060i201204

main85292-28050i201112

9017906158

main90179-06158

7 parts on this diagram · 1 diagram in section
