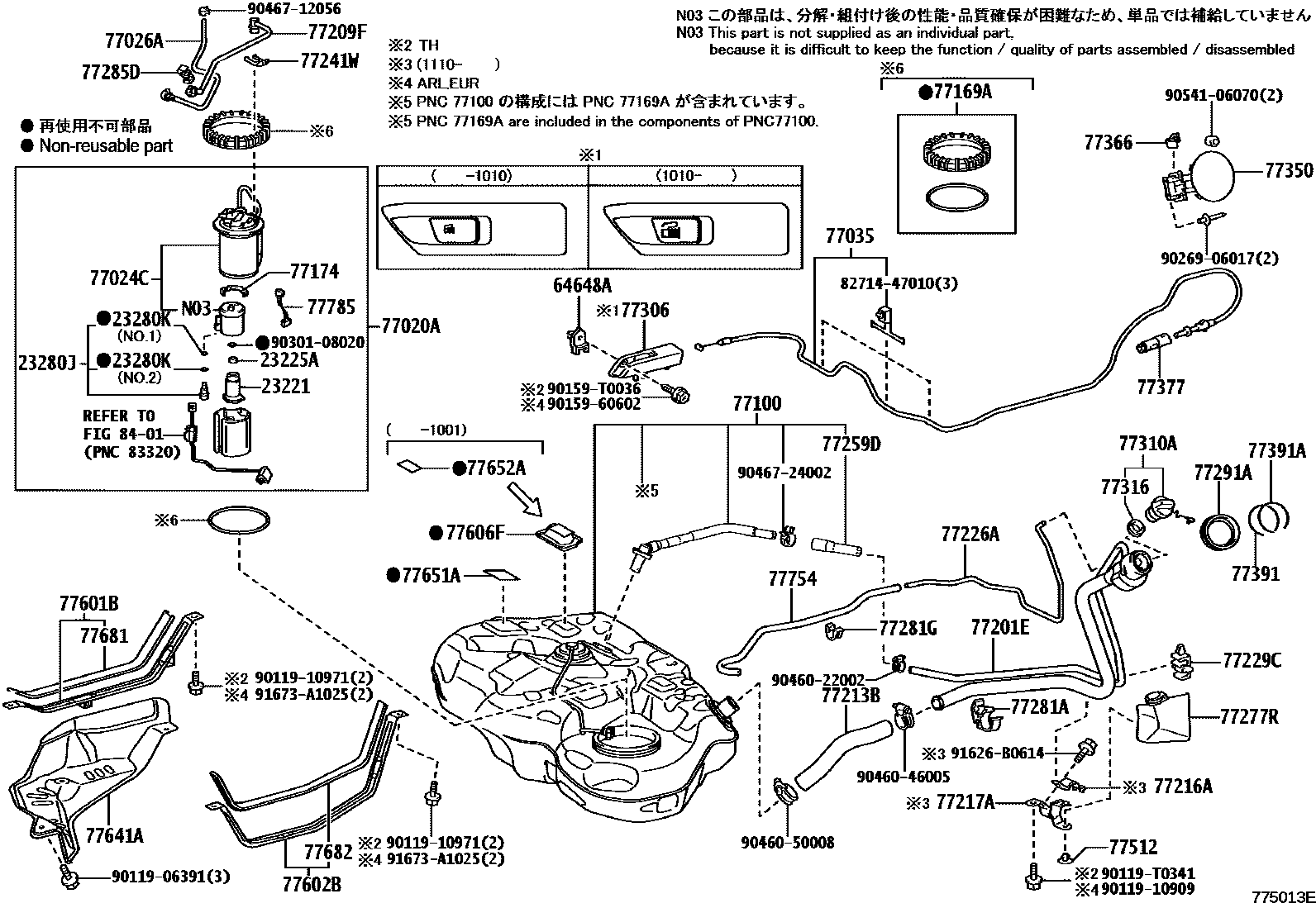

FUEL TANK & TUBE

0001 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE

23221PUMP, FUEL

main23220-21210i2ZRFXE..ZVW30..TH200904-201201

main23220-21211i2ZRFXE..ZVW30..TH201201-201204

23225ASPACER, FUEL PUMP

main23225-21020i2ZRFXE..ZVW30..ARL,EUR200904-201204

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2ZRFXE..ZVW30..TH200904-201204

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2ZRFXE..ZVW30..ARL,EUR200904-201511

NO.1

main90301-15024i2ZRFXE..ZVW30..ARL,EUR200904-201511

NO.2

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-0D020iZVW30..TH201304

main64648-12020iZVW30..ARL,EUR200904-201303

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-47070iZVW30..ARL,EUR200904-201310

main77020-47071iZVW30..ARL,EUR201308-201311

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-47090iZVW30..ARL,EUR201502-201511

main77024-75010iZVW30..TH200904-201502

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-47020iZVW30..ARL,EUR200904-201204

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0Q010iZVW30..TH201204

main77035-47050iZVW30..LHD200904-201112

main77035-47060iZVW30..RHD..(ARL,EUR)200904-201105

main77035-47090iZVW30..TH201105-201204

77100TANK ASSY, FUEL

main77001-47120iZVW30..TH200904-201204

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52030iZVW30..TH201012-201204

main77169-52040iZVW30..TH200904-201112

77174SUPPORT, FUEL SUCTION, NO.1

main77174-75010iZVW30..ARL,EUR200904-201204

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-47110iZVW30..ARL,EUR200904-201111

main77201-47250iZVW30..ARL,EUR201110-201204

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-47060iZVW30..ARL,EUR200904-201204

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-47060iZVW30..TH200904-201101

main77213-47100iZVW30..TH201101-201204

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12190iZVW30..ARL,EUR201110-201204

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47080iZVW30..TH201110-201204

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-47040iZVW30..ARL,EUR200904-201204

77229CCLAMP, BREATHER TUBE

main77229-12070iZVW30..ARL,EUR200904-201204

77241WCLIP, TUBE JOINT

main77241-33011iZVW30..ARL,EUR201007-201204

main77241-60320iZVW30200904-201006

77259DHOSE, FUEL, NO.1

main77259-76010iZVW30..ARL,EUR200904-201511

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iZVW30..ARL,EUR200904-201204

77281ACLAMP, FUEL FILLER PIPE

main77281-47060iZVW30..ARL,EUR200904-201204

77281GCLAMP, FUEL HOSE

main77281-47050iZVW30..TH200904-201204

77285DCLAMP, FUEL TUBE, NO.1

main77285-47040iZVW30..ARL,EUR200904-201204

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47030iZVW30..ARL,EUR200904-201204

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iZVW30..RHD200904-201010

main77306-52040iZVW30..LHD200904-201010

main77306-52050iZVW30..RHD..(ARL,EUR)201010-201204

main77306-52060iZVW30..LHD201010-201112

77310ACAP ASSY, FUEL TANK

main77300-52030iZVW30..ARL,EUR200904-201204

77316GASKET, FUEL TANK CAP

main77316-52040iZVW30..TH200904-201204

77350LID ASSY, FUEL FILLER OPENING

main77350-47030iZVW30..ARL,EUR200904-201204

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iZVW30..ARL,EUR200904-201204

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-52020iZVW30200904-200906

main77377-75010iZVW30..ARL,EUR200907-201204

77391RING, FUEL INLET BOX

main77391-12020iZVW30..TH200904-201204

77391ARING, FUEL INLET BOX

main77391-44020iZVW30..TH200904-201204

77512BRACKET, FUEL TANK, REAR

main77512-35140iZVW30..ARL,EUR200904-201204

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-47040iZVW30..ARL,EUR200904-201107

main77601-47090iZVW30..ARL,EUR201107-201204

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-47040iZVW30..TH200904-201107

main77602-47090iZVW30..ARL,EUR201107-201204

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-12190iZVW30..TH201001-201204

77641APROTECTOR, FUEL TANK, NO.1

main77641-47020iZVW30..ARL,EUR200904-201511

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iZVW30..ARL,EUR200904-201204

77652ACUSHION, FUEL TANK, NO.2

main77652-47010iZVW30200904-201001

77681SEAT, FUEL TANK BAND, RH

main77681-47020iZVW30..ARL,EUR200904-201204

77682SEAT, FUEL TANK BAND, LH

main77682-47020iZVW30..ARL,EUR200904-201204

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-47030iZVW30..ARL,EUR200904-201204

77785HARNESS, FUEL PUMP

main77785-12010iZVW30..TH201201-201204

main77785-12020iZVW30..ARL,EUR200904-201201

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271447010

main82714-47010

9011906391

main90119-06391

9011910909

main90119-10909

9011910971

main90119-10971

90119T0341

main90119-T0341

9015960602

main90159-60602

90159T0036

main90159-T0036

9026906017

main90269-06017

9030108020

main90301-08020

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9046712056

main90467-12056

9046724002

main90467-24002

9054106070

main90541-06070

91626B0614

main91626-B0614

91673A1025

main91673-A1025

63 parts on this diagram · 4 diagrams in section
