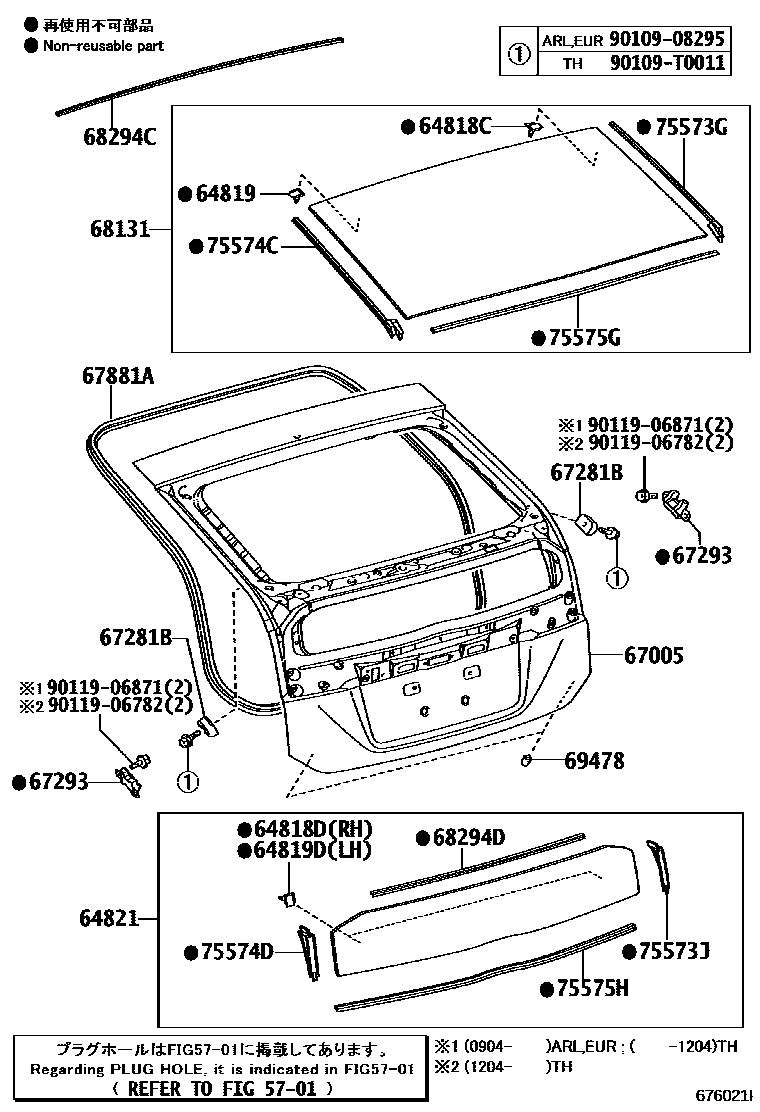

BACK DOOR PANEL & GLASS
5701HOLE PLUG
64818CSPACER, BACK WINDOW GLASS, NO.1
64818DSPACER, BACK WINDOW GLASS, NO.3
64819SPACER, BACK WINDOW GLASS, NO.2
64819DSPACER, BACK WINDOW GLASS, NO.4
64821GLASS, BACK WINDOW FIX
ENGLAND SPEC
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&INDONESIA SPEC
BRAZIL SPEC
67005PANEL SUB-ASSY, BACK DOOR
AUDIO-RADIO LESS,6SPEAKER
AUDIO-AVN,BLUETOOTH,8SPEAKER; TAIWAN SPEC&AUDIO-AV,BLUETOOTH,8SPEAKER
67281BSTOPPER, BACK DOOR, LOWER
67293CUSHION, BACK DOOR LOWER STOPPER
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
T=3.1,GREEN
T=3.1,GREEN
T=3.1,GREEN
T=3.1,GREEN
T=3.1,GREEN,ENGLAND SPEC
T=3.1,GREEN,ENGLAND SPEC
T=3.1,GREEN,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&INDONESIA SPEC
T=3.1,GREEN,BRAZIL SPEC
68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1
68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2
69478CUSHION, BACK DOOR LOWER STOPPER
75573GMOULDING, BACK WINDOW, OUTSIDE RH NO.1
75573JMOULDING, BACK WINDOW, OUTSIDE RH NO.2
75574CMOULDING, BACK WINDOW, OUTSIDE LH NO.1
75574DMOULDING, BACK WINDOW, OUTSIDE LH NO.2
75575GMOULDING, BACK WINDOW, LOWER NO.1
75575HMOULDING, BACK WINDOW, LOWER NO.2
9010908295
main90109-08295
90109T0011
main90109-T0011
9011906782
main90119-06782
9011906871
main90119-06871
24 parts on this diagram · 2 diagrams in section
