67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-47080i200904-201112

67003CCUSHION, REAR DOOR PANEL

main90541-09117×4i200904-200910

main90541-09124×4i201204

main90541-09138×4i201112

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-47080i200904-201112

67113PANEL, REAR DOOR, OUTER RH

main67113-47030i201012-201204

67114PANEL, REAR DOOR, OUTER LH

main67114-47030i201112-201511

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-47030i201204

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-47030i201012-201204

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-47040i201012-201110

main67487-47041i201112

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-47040i201012-201110

main67488-47041i201110-201112

67811APAD, REAR DOOR SILENCER

main55742-42030×2i201112

main67811-33040×6i201102-201204

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-02030i201204

main67836-12040i200904-201112

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-02030i201204

main67836-12040i201012-201204

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-47050i201112

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-47040i201112

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-47020i201112

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-47010i201012-201204

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×17i201204

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×17i201204

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0Q020i201204

main67871-47030i201112

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main90467-05017-C0×2i200904-201112

BLACK

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0Q020i201204

main67872-47030i201012-201204

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-0Q030i201204-201510

*TEM,T=3.1,GREEN

main68103-47050i200904-200905

*UVCT,T=3.1,GREEN

main68103-47051i200906-201112

*UVCT,T=3.1,GREEN

main68103-47110i201012-201204

*UVCT,T=3.1,GREEN

main68103-47070i200904-200906

*UVCT,T=3.1,GREEN,INDONESIA SPEC

main68103-47130i201112-201511

*UVCT,T=3.1,GREEN,BRAZIL SPEC

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-0Q030i201204-201510

*TEM,T=3.1,GREEN

main68104-47050i200904-200905

*UVCT,T=3.1,GREEN

main68104-47051i200906-201112

*UVCT,T=3.1,GREEN

main68104-47110i201012-201204

*UVCT,T=3.1,GREEN

main68104-47070i200904-200906

*UVCT,T=3.1,GREEN,INDONESIA SPEC

main68104-47130i201112-201511

*UVCT,T=3.1,GREEN,BRAZIL SPEC

68142CRUN, REAR DOOR GLASS, RH

main68142-47030i200904-201112

68152CRUN, REAR DOOR GLASS, LH

main68152-47030i200904-201112

68630DCHECK ASSY, REAR DOOR, RH

main68630-47030i200904-201106

main68630-47031i201107-201204

68640ACHECK ASSY, REAR DOOR, LH

main68630-47030i201012-201107

main68630-47031i201106-201112

7503SIDE MOULDING

→ Go to FIG 75-03

75923CTAPE, BLACK OUT, NO.2 RH

main75923-0Q020i201204-201510

main75923-47020i201112-201511

75924CTAPE, BLACK OUT, NO.2 LH

main75924-0Q020i201204-201510

main75924-47020i200904-201112

75937ATAPE, BLACK OUT, INNER UPPER RH

main75987-0Q020i201204-201510

REFER TO ILLUST.

main75987-47020i201112-201511

REFER TO ILLUST.

75938TAPE, BLACK OUT, INNER UPPER LH

main75988-0Q020i201204-201510

REFER TO ILLUST.

main75988-47020i201012-201204

REFER TO ILLUST.

75951CTAPE, BLACK OUT, INNER FRONT RH

main75977-0Q020i201204-201510

REFER TO ILLUST.

main75977-47020i200904-201112

REFER TO ILLUST.

75952ATAPE, BLACK OUT, INNER FRONT LH

main75978-0Q020i201204-201510

REFER TO ILLUST.

main75978-47020i200904-201112

REFER TO ILLUST.

75953ATAPE, BLACK OUT, INNER REAR RH

main75979-0Q020i201204-201510

REFER TO ILLUST.

main75979-47020i200904-201112

REFER TO ILLUST.

75954ATAPE, BLACK OUT, INNER REAR LH

main75989-0Q020i201204-201510

REFER TO ILLUST.

main75989-47020i201012-201204

REFER TO ILLUST.

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

9016140020

main90161-40020

9016140030

main90161-40030

9016750022

main90167-50022

9095001841

main90950-01841

9167380616

main91673-80616

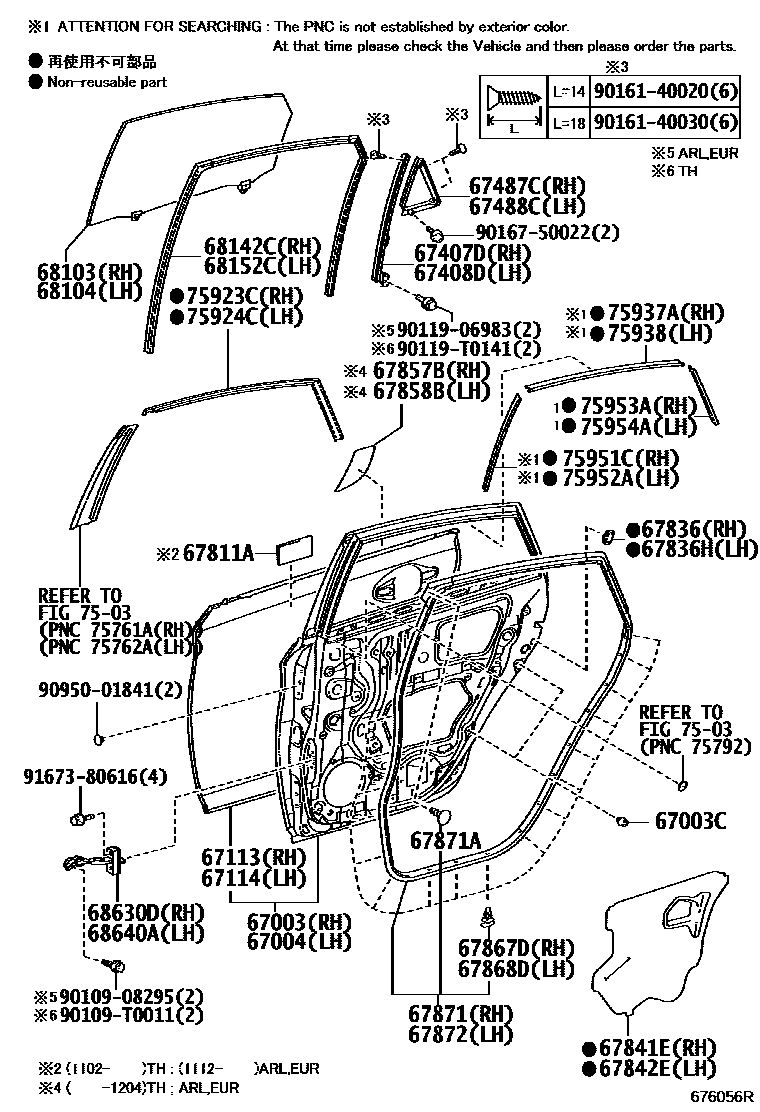

REAR DOOR PANEL & GLASS
