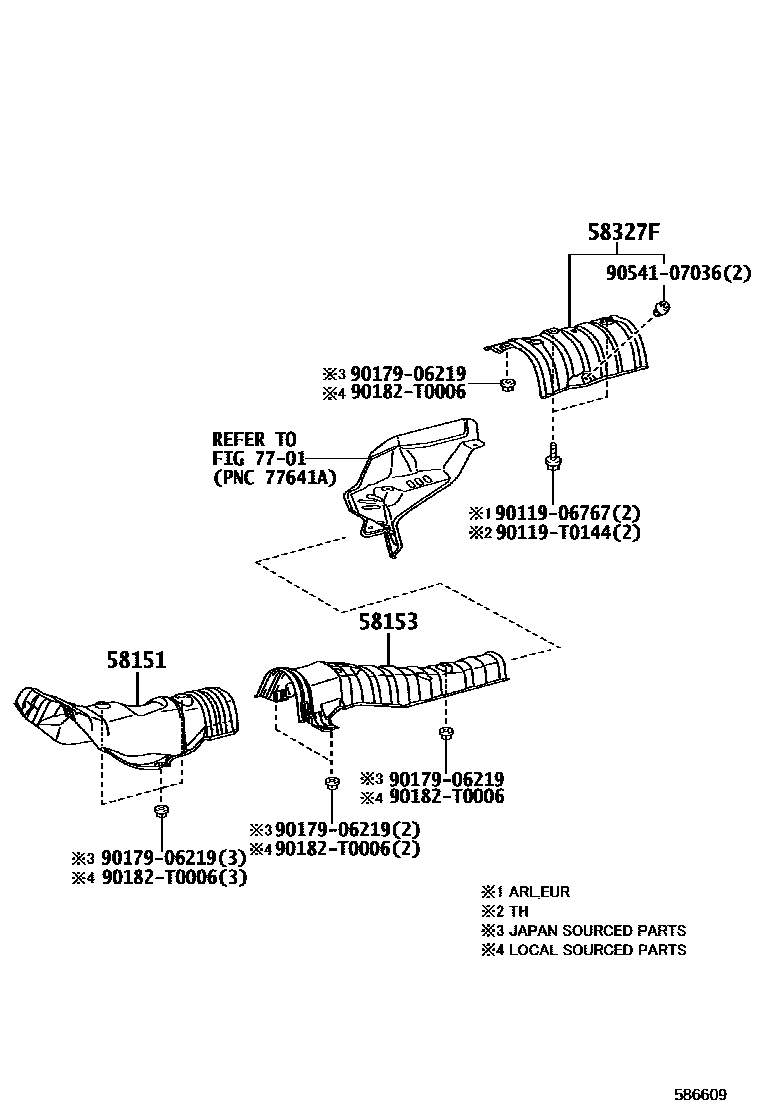

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-47040iZVW30..ARL,EUR200904-201105

main58151-47050iZVW30..ARL,EUR201106-201112

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-47030iZVW30..TH201012-201204

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-47020iZVW30..ARL,EUR200904-201112

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906767

main90119-06767

90119T0144

main90119-T0144

9017906219

main90179-06219

90182T0006

main90182-T0006

9054107036

main90541-07036

9 parts on this diagram · 1 diagram in section
