RADIATOR GRILLE

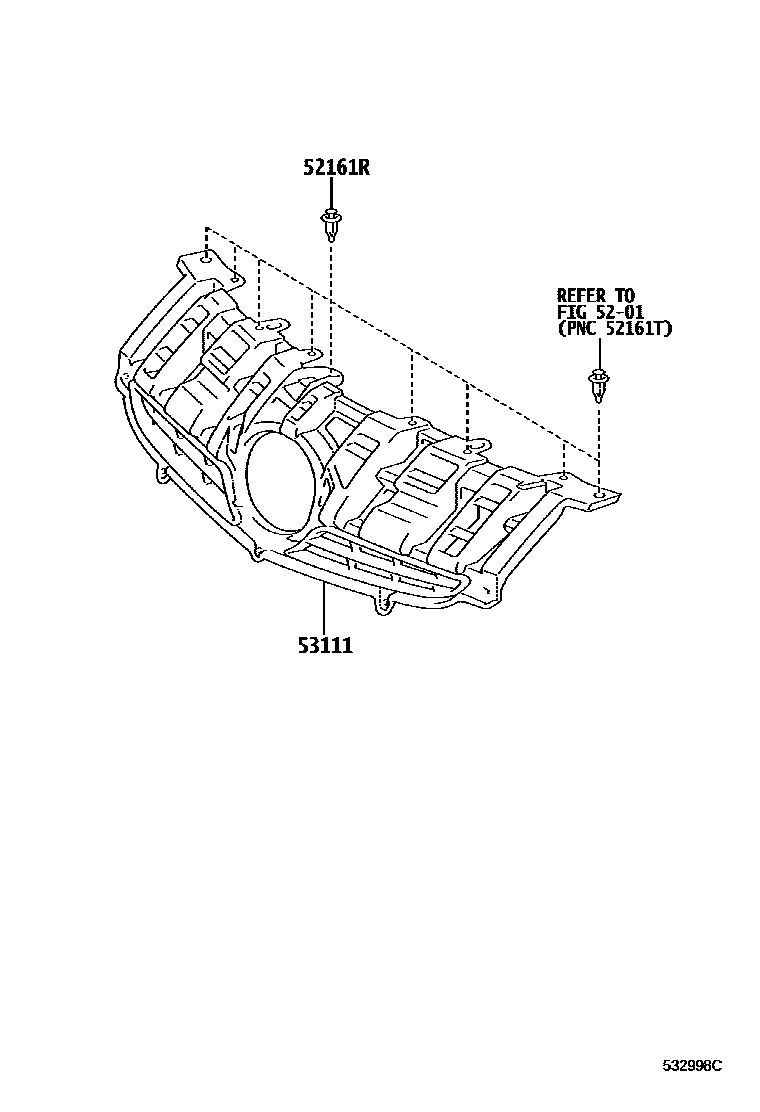

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161RPIECE, FRONT BUMPER

main52161-0K040i201107-201204

main52161-16010i201112

53111GRILLE, RADIATOR

main53111-47020i200904-201112

NO PAINT REQ.

main53111-47040i201112

NO PAINT REQ.

3 parts on this diagram · 2 diagrams in section
