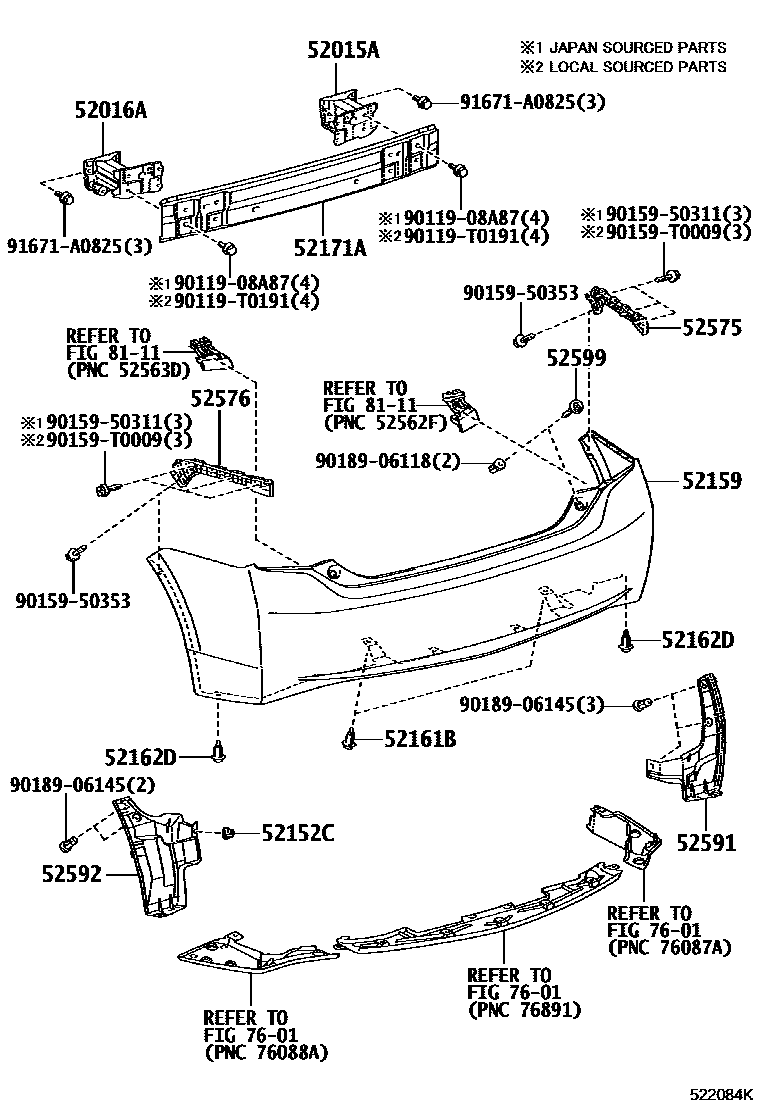

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47050iZVW30..TH200904-201204

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-47030iZVW30..ARL,EUR200904-201204

52152CCLIP, REAR BUMPER SIDE

main90467-06121iZVW30200904-201204

main90467-06206-C0iZVW30..ARL,EUR201009-201511

BLACK

52159COVER, REAR BUMPER

main52159-47905iZVW30..ARL,EUR200904-201511

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iZVW30..TH201107-201204

main52161-16010iZVW30..ARL,EUR200904-201112

52162DPIECE, REAR BUMPER

main52161-0K040iZVW30..TH201107-201204

main52161-16010iZVW30..ARL,EUR200904-201112

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-12240iZVW30..ARL,EUR200904-201511

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47020iZVW30..ARL,EUR200904-201402

main52575-47021iZVW30..ARL,EUR201310

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47020iZVW30..ARL,EUR200904-201402

main52576-47021iZVW30..TH201310

52591SEAL, REAR BUMPER SIDE, RH

main52591-47021iZVW30..ARL,EUR200904-201204

52592SEAL, REAR BUMPER SIDE, LH

main52592-47021iZVW30..ARL,EUR200904-201204

52599STOPPER, REAR BUMPER, UPPER

main52599-68030iZVW30..ARL,EUR200904-201204

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

9011908A87

main90119-08A87

90119T0191

main90119-T0191

9015950311

main90159-50311

9015950353

main90159-50353

90159T0009

main90159-T0009

9018906118

main90189-06118

9018906145

main90189-06145

91671A0825

main91671-A0825

22 parts on this diagram · 1 diagram in section
