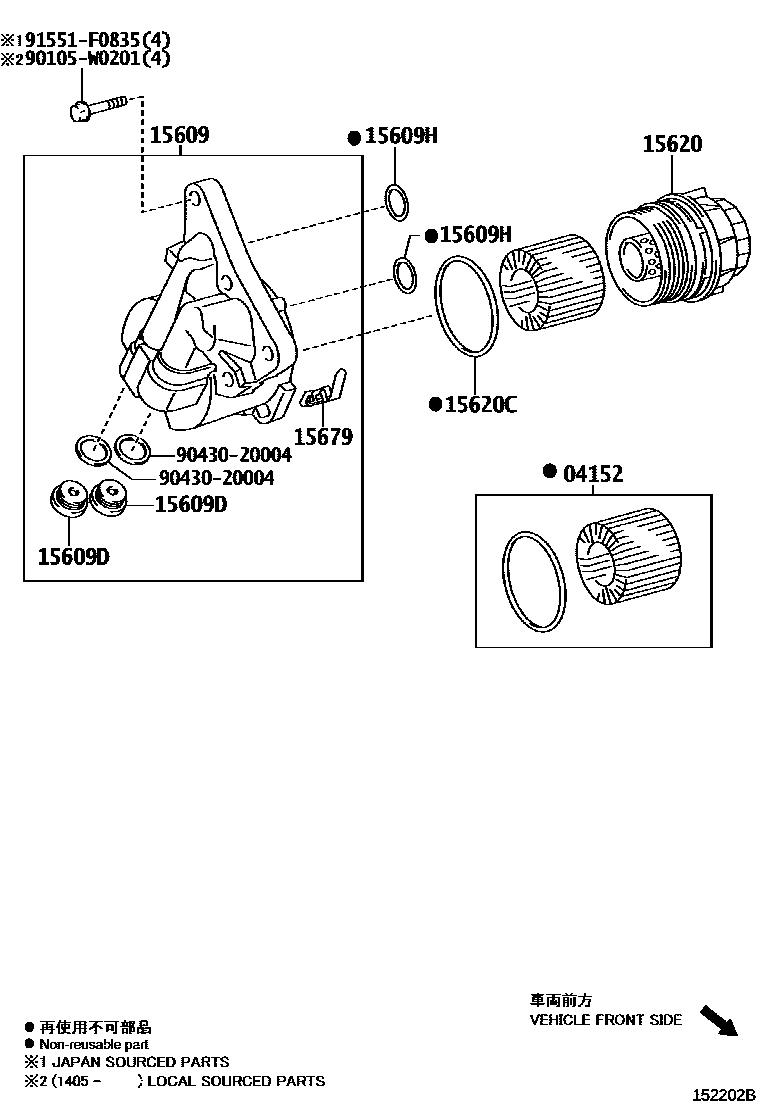

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i2ZRFXE..ZVW30..TH201204-201510

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37040i2ZRFXE..ZVW30..ARL,EUR201112-201310

main15609-37041i2ZRFXE..ZVW30..ARL,EUR201310-201511

main15609-0T030i2ZRFXE..ZVW30..EUR201204

ENGINE-2ZR-FXE(MADE IN UK),(L)

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002×2i2ZRFXE..ZVW30..ARL,EUR200904-201112

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020×2i2ZRFXE..ZVW30..ARL,EUR200904-201112

15620CAP ASSY, OIL FILTER

main15620-37010i2ZRFXE..ZVW30..TH201012-201204

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i2ZRFXE..ZVW30..TH201204-201510

15679CLIP, OIL FILTER BRACKET

main15679-37010i2ZRFXE..ZVW30..TH201012-201204

main15679-37011i2ZRFXE..ZVW30..ARL,EUR201409-201511

90105W0201

main90105-W0201

9043020004

main90430-20004

91551F0835

main91551-F0835

10 parts on this diagram · 1 diagram in section
