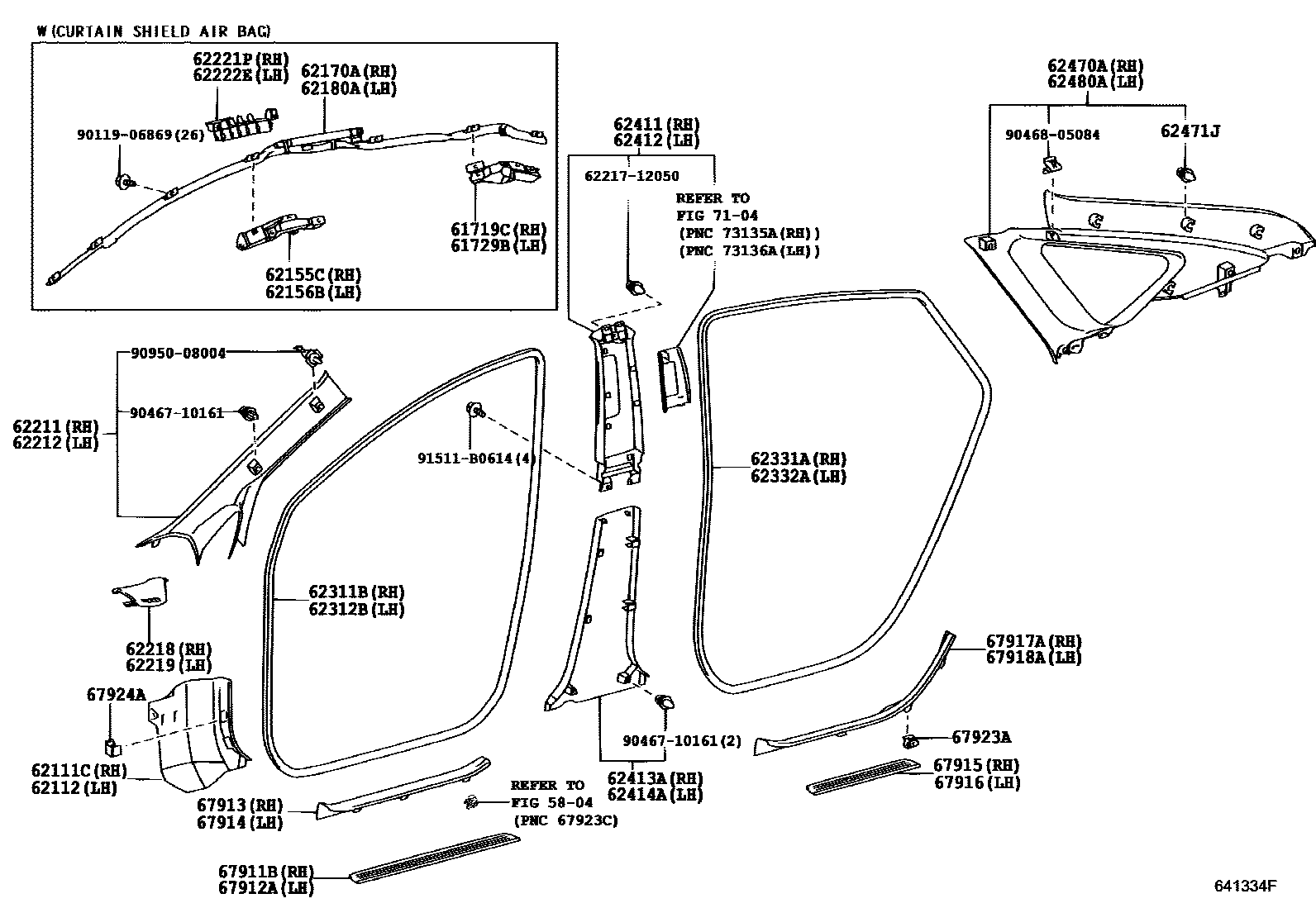

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

5804MAT & CARPET

→ Go to FIG 58-04

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-47020iNHW20..ARL; NHW20..EUR200308-200511

W(VSC)

61729BBRACKET, ROOF SIDE RAIL, LH

main61729-47010iNHW20..ARL; NHW20..EUR200308-200511

W(VSC)

62111CBOARD, COWL SIDE TRIM, RH

main62111-47030-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main62111-47030-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main62111-47030-E0iNHW20200511-200903

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-47040-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main62112-47040-B0iNHW20..RHD200308-200511

MD.GRAY,TRIM1#

main62112-47040-E0iNHW20..RHD200511-200903

GREGE,TRIM4#

main62112-47050-B0iNHW20..LHD200511-200903

MD.GRAY,TRIM1#

main62112-47050-E0iNHW20..LHD200511-200903

GREGE,TRIM4#

62155CBRACKET, CURTAIN SHIELD AIRBAG, RH

main62155-47010iNHW20..ARL; NHW20..EUR200308-200511

W(VSC)

62156BBRACKET, CURTAIN SHIELD AIRBAG, LH

main62156-47010iNHW20..ARL; NHW20..EUR200308-200511

W(VSC)

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-47010iNHW20..ARL; NHW20..EUR200511-200903

SRS AIR BAG-W(DRIVER&PASSENGER)& W/O(SIDE & CURTAIN); WITH(VSC)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-47010iNHW20..ARL; NHW20..EUR200308-200511

W(VSC)

62211GARNISH, FRONT PILLAR, RH

main62210-47050-E0supersedes 62210-47040-E0iNHW20..ARL; NHW20..EUR200511-200903

GREGE,TRIM4#; WITH(VSC),GREGE,TRIM4#

main62210-47040-B0supersedes 62210-47050-B0iNHW20..ARL; NHW20..EUR200308-200511

LT.GRAY,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER,LT.GRAY,TRIM1#

main62210-47050-A0supersedes 62210-47040-A0iNHW20..ARL200308-200511

W(VSC),IVORY,TRIM0#

main62210-47050-B0supersedes 62210-47040-B0iNHW20..ARL; NHW20..EUR200308-200511

LT.GRAY,TRIM1#; W(VSC),LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62220-47050-E0supersedes 62220-47040-E0iNHW20..ARL; NHW20..EUR200511-200903

GREGE,TRIM4#; WITH(VSC),GREGE,TRIM4#

main62220-47040-B0supersedes 62220-47050-B0iNHW20..ARL; NHW20..EUR200308-200511

LT.GRAY,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER,LT.GRAY,TRIM1#

main62220-47050-A0supersedes 62220-47040-A0iNHW20..ARL200308-200511

W(VSC),IVORY,TRIM0#

main62220-47050-B0supersedes 62220-47040-B0iNHW20..ARL; NHW20..EUR200308-200511

LT.GRAY,TRIM1#; W(VSC),LT.GRAY,TRIM1#

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-47020-A1iNHW20..ARL200308-200511

IVORY,TRIM0#

main62218-47020-B1iNHW20200308-200511

LT.GRAY,TRIM1#

main62218-47020-E0iNHW20200511-200903

GREGE,TRIM4#

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-47020-A1iNHW20..ARL200308-200511

IVORY,TRIM0#

main62219-47020-B1iNHW20200308-200511

LT.GRAY,TRIM1#

main62219-47020-E0iNHW20200511-200903

GREGE,TRIM4#

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-47040iNHW20..ARL; NHW20..EUR200308-200511

W(VSC)

62222ESPACER, FRONT PILLAR, NO.1 LH

main62222-47030iNHW20..ARL; NHW20..EUR200308-200511

W(VSC)

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main62311-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main62311-47020-E0iNHW20200511-200903

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main62312-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main62312-47020-E0iNHW20200511-200903

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main62331-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main62331-47020-E0iNHW20200511-200903

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main62332-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main62332-47020-E0iNHW20200511-200903

GREGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-47040-A1iNHW20..ARL200308-200511

IVORY,TRIM0#

main62410-47040-B1iNHW20200308-200511

LT.GRAY,TRIM1#

main62410-47040-B2iNHW20200802-200903

LT.GRAY,TRIM1#

main62410-47040-E0iNHW20200511-200802

GREGE,TRIM4#

main62410-47040-E1iNHW20200802-200903

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-47040-A1iNHW20..ARL200308-200511

IVORY,TRIM0#

main62420-47040-B1iNHW20200511-200802

LT.GRAY,TRIM1#

main62420-47040-B2iNHW20200802-200903

LT.GRAY,TRIM1#

main62420-47040-E0iNHW20200511-200802

GREGE,TRIM4#

main62420-47040-E1iNHW20200802-200903

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main62413-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main62413-47020-E0iNHW20200511-200903

GREGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main62414-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main62414-47020-E0iNHW20200511-200903

GREGE,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-47050-E0supersedes 62470-47040-E0iNHW20..ARL; NHW20..EUR200511-200903

GREGE,TRIM4#; WITH(VSC),GREGE,TRIM4#

main62470-47020-B0supersedes 62470-47050-B0iNHW20..ARL; NHW20..EUR200308-200511

NEW GRAY,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER,NEW GRAY,TRIM1#

main62470-47030-A0supersedes 62470-47020-A0iNHW20..ARL200308-200511

W(VSC),IVORY,TRIM0#

main62470-47030-B0supersedes 62470-47040-B0iNHW20..ARL; NHW20..EUR200308-200511

GRAY,TRIM1#; W(VSC),GRAY,TRIM1#

main62470-47050-B0supersedes 62470-47040-B0iNHW20..ARL; NHW20..EUR200511-200903

GRAY,TRIM1#; WITH(VSC),GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×13iNHW20200308-200511

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-47030-E0supersedes 62480-47020-E0iNHW20..ARL; NHW20..EUR200511-200903

GREGE,TRIM4#; WITH(VSC),GREGE,TRIM4#

main62480-47020-B0supersedes 62480-47030-B0iNHW20..ARL; NHW20..EUR200308-200511

GRAY,TRIM1#; SRS AIR BAG-DRIVER & PASSENGER,GRAY,TRIM1#

main62480-47030-A0supersedes 62480-47020-A0iNHW20..ARL200308-200511

W(VSC),IVORY,TRIM0#

main62480-47030-B0supersedes 62480-47020-B0iNHW20..ARL; NHW20..EUR200511-200903

GRAY,TRIM1#; WITH(VSC),GRAY,TRIM1#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-47020iNHW20200611-200903

main67911-63010-C0iNHW20..ARL; NHW20..EUR200308-200511

BLACK,TRIM0#,1#; BLACK,TRIM1#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-47020iNHW20200611-200903

main67911-63010-C0iNHW20..ARL; NHW20..EUR200308-200511

BLACK,TRIM0#,1#; BLACK,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main67913-47020-B0iNHW20200511-200903

MD.GRAY,TRIM1#

main67913-47020-E0iNHW20200511-200903

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main67914-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main67914-47020-E0iNHW20200511-200903

GREGE,TRIM4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-47020iNHW20200611-200903

main67915-63010-C0iNHW20..ARL; NHW20..EUR200308-200511

BLACK,TRIM0#,1#; BLACK,TRIM1#

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67915-47020iNHW20200611-200903

main67915-63010-C0iNHW20200511-200610

BLACK

67917APLATE, REAR DOOR SCUFF, RH

main67917-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main67917-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main67917-47020-E0iNHW20200511-200903

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-47020-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

main67918-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main67918-47020-E0iNHW20200511-200903

GREGE,TRIM4#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090×4iNHW20200308-200511

WHITE

main67923-47030×2iNHW20200308-200511

BLACK

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-46010×4iNHW20200308-200511

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

6221712050COVER, RAIL ROOF SIDE, INNER CENTER

main62217-12050

9011906869

main90119-06869

9046710161

main90467-10161

9046805084

main90468-05084

9095008004

main90950-08004

91511B0614

main91511-B0614

43 parts on this diagram · 2 diagrams in section
