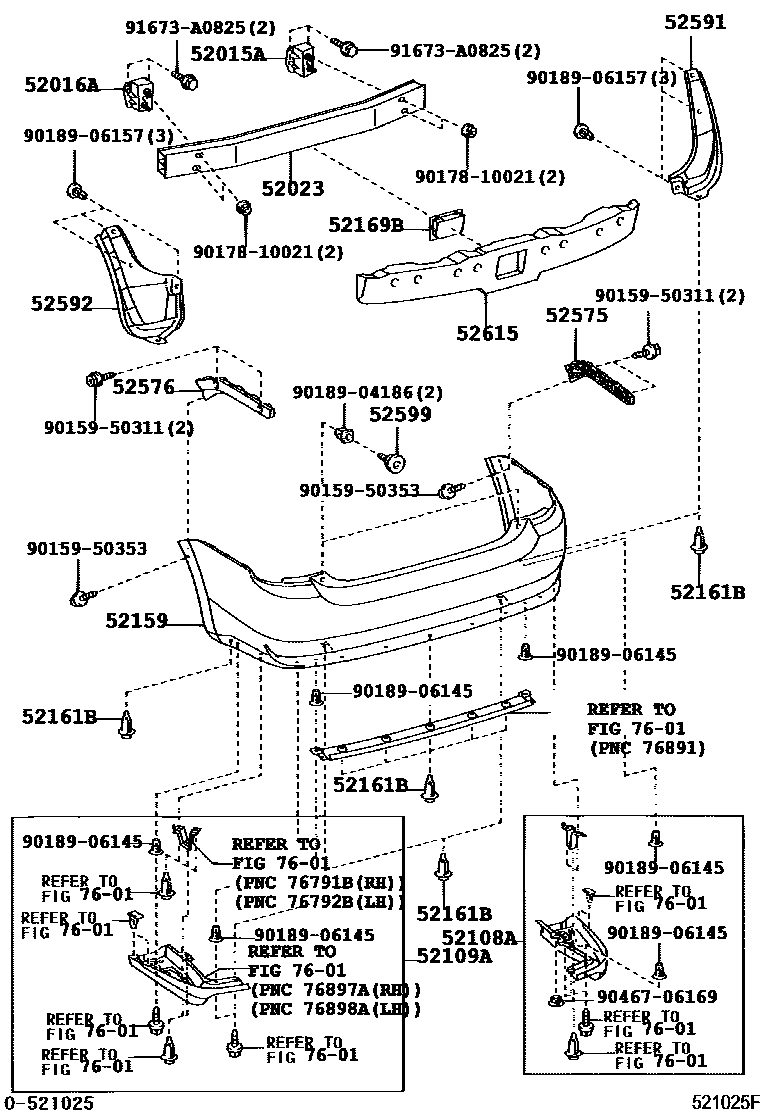

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-47020iNHW20200308-200501

main52015-47021iNHW20200501-200511

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-47010iNHW20200308-200501

main52016-47011iNHW20200501-200511

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52171-47050iNHW20200308-200511

52108ABUMPER SUB-ASSY, REAR SIDE, RH

main52108-47010iNHW20200308-200511

52109ABUMPER SUB-ASSY, REAR SIDE, LH

main52109-47010iNHW20200308-200511

52159COVER, REAR BUMPER

main52159-47903iNHW20200308-200511

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×7iNHW20200308-200511

52169BBRACKET, REAR BUMPER, CENTER

main52169-47010iNHW20200308-200511

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47010iNHW20200308-200508

main52575-47011iNHW20200509-200511

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47010iNHW20200308-200508

main52576-47011iNHW20200509-200511

52591SEAL, REAR BUMPER SIDE, RH

main52591-47010iNHW20200308-200511

52592SEAL, REAR BUMPER SIDE, LH

main52592-47010iNHW20200308-200511

52599STOPPER, REAR BUMPER, UPPER

main52599-68020×2iNHW20200308-200511

52615ABSORBER, REAR BUMPER ENERGY

main52615-47020iNHW20200308-200511

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015950311

main90159-50311

9015950353

main90159-50353

9017810021

main90178-10021

9018904186

main90189-04186

9018906145

main90189-06145

9018906157

main90189-06157

9046706169

main90467-06169

91673A0825

main91673-A0825

23 parts on this diagram · 1 diagram in section
