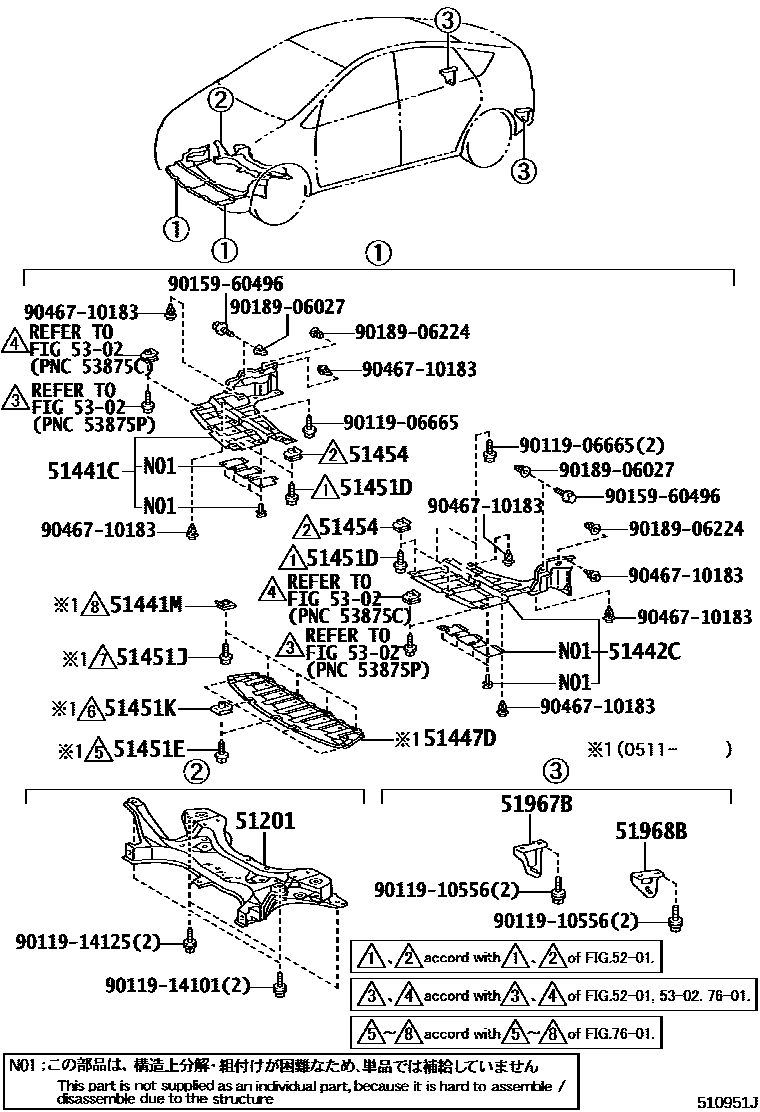

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1FLOOR UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47030iNHW20200308-200903

51441CCOVER, ENGINE UNDER, RH

main51408-47010iNHW20200308-200511

main51408-47011iNHW20200511-200512

main51408-47012iNHW20200601-200903

51441MNUT

main90179-06147iNHW20200511-200903

51442CCOVER, ENGINE UNDER, LH

main51409-47010iNHW20200308-200511

main51409-47011iNHW20200511-200512

main51409-47012iNHW20200601-200903

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-47010iNHW20200511-200903

51451DSCREW, NO.1

main90159-60215iNHW20200308-200903

51451ESCREW, NO.2

main90159-60393iNHW20200511-200903

51451JBOLT, NO.1

main90119-06768iNHW20200511-200903

51451KGROMMET, SCREW, NO.1

main90189-06131iNHW20200511-200903

51454CLIP

main90467-05114iNHW20200308-200903

51967BHOOK, TRANSPORT, REAR RH

main51967-10090iNHW20200308-200903

51968BHOOK, TRANSPORT, REAR LH

main51968-33010iNHW20200308-200903

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

9011906665

main90119-06665

9011910556

main90119-10556

9011914101

main90119-14101

9011914125

main90119-14125

9015960496

main90159-60496

9018906027

main90189-06027

9018906224

main90189-06224

9046710183

main90467-10183

21 parts on this diagram · 2 diagrams in section
