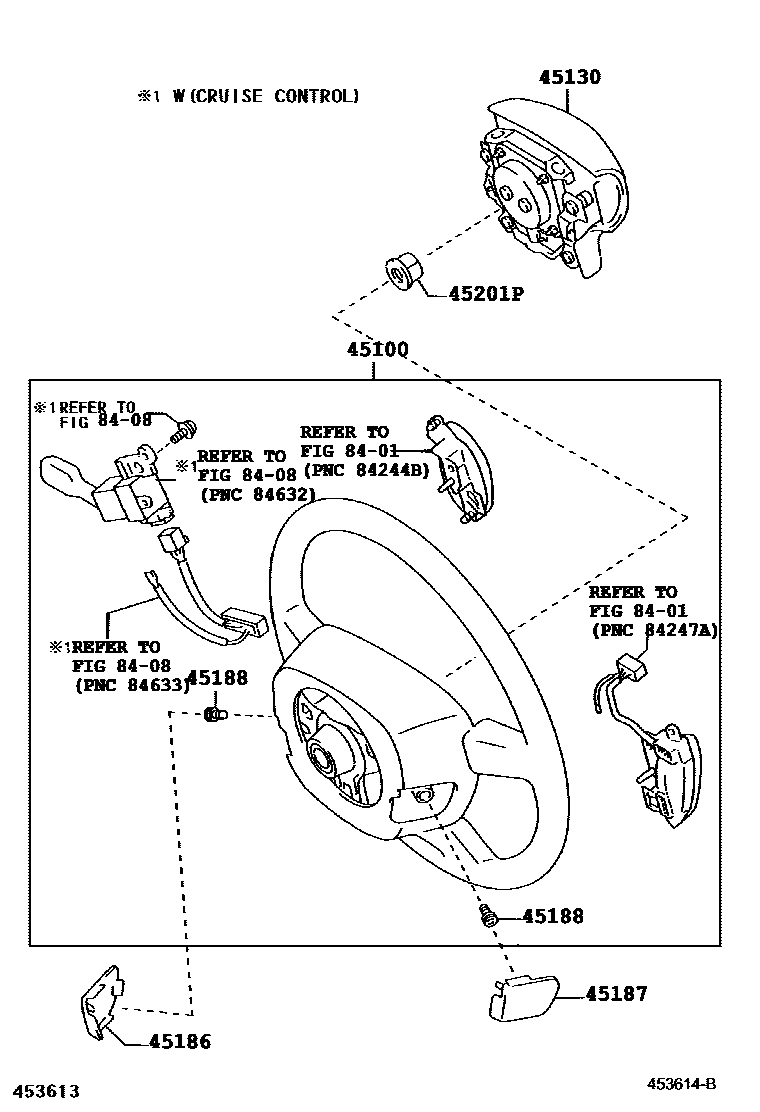

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,LEATHER,STEERING WHEEL-LEATHER,BLACK,TRIM1#,4#; 4-SPOKE,LEATHER,W(CRUISE CONTROL)&STEERING WHEEL-LEATHER,BLACK,TRIM1#,4#
4-SPOKE,URETHANE,AUDIO-05AM/FM+CD-CHANGER JBL 9 SPEAKER,BLACK,TRIM1#,4#; 4-SPOKE,URETHANE,AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER,BLACK,TRIM1#,4#
4-SPOKE,URETHANE,BLACK,TRIM0#,1#; 4-SPOKE,URETHANE,CRUISE CONTROL-WITH,BLACK,TRIM1#
4-SPOKE,URETHANE,BLACK,TRIM1#,4#; 4-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM1#,4#
4-SPOKE,URETHANE,CRUISE CONTROL-WITH&EMV(W/NAVIGATION SYSTEM)-WITH(EUROPE),BLACK,TRIM1#; 4-SPOKE,URETHANE,W(VSC),BLACK,TRIM0#,1#
4-SPOKE,URETHANE,CRUISE CONTROL-WITH&EMV(W/NAVIGATION SYSTEM)-WITH(EUROPE),BLACK,TRIM1#; 4-SPOKE,URETHANE,W(VSC),BLACK,TRIM0#,1#
4-SPOKE,LEATHER,STEERING WHEEL-LEATHER&WITH(VSC)&EMV(W/NAVIGATION SYSTEM)-WITH,BLACK,TRIM1#,4#; 4-SPOKE,LEATHER,W(CRUISE CONTROL)&STEERING WHEEL-LEATHER&AUDIO-05AM/FM+CD 6 SPEAKER&EMV(W/NAVIGATION SYSTEM)-WITH,BLACK,TRIM1#,4#; 4-SPOKE,LEATHER,W(CRUISE CONTROL)&STEERING WHEEL-LEATHER&AUDIO-05AM/FM+CD-CHANGERJBL RDS 9 SPEAKER&EMV(W/NAVIGATION SYSTEM)-WITH,BLACK,TRIM1#,4#
4-SPOKE,LEATEHR,STEERING WHEEL-LEATHER,BLACK,TRIM1#,4#
4-SPOKE,LEATHER,STEERING WHEEL-LEATHER&AUDIO-05AM/FM+CD 6 SPEAKER&EMV(W/NAVIGATIONSYSTEM)-WITH,BLACK,TRIM1#,4#; 4-SPOKE,LEATHER,STEERING WHEEL-LEATHER&AUDIO-05AM/FM+CD-CHANGER JBL RDS 9 SPEAKER&EMV(W/NAVIGATION SYSTEM)-WITH,BLACK,TRIM1#,4#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,1#; BLACK,TRIM1#
BLACK,TRIM0#,1#; BLACK,TRIM1#
BLACK,TRIM1#,4#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,1#; CRUISE CONTROL-WITH,BLACK,TRIM1#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM0#,1#; BLACK,TRIM1#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
8 parts on this diagram · 1 diagram in section
