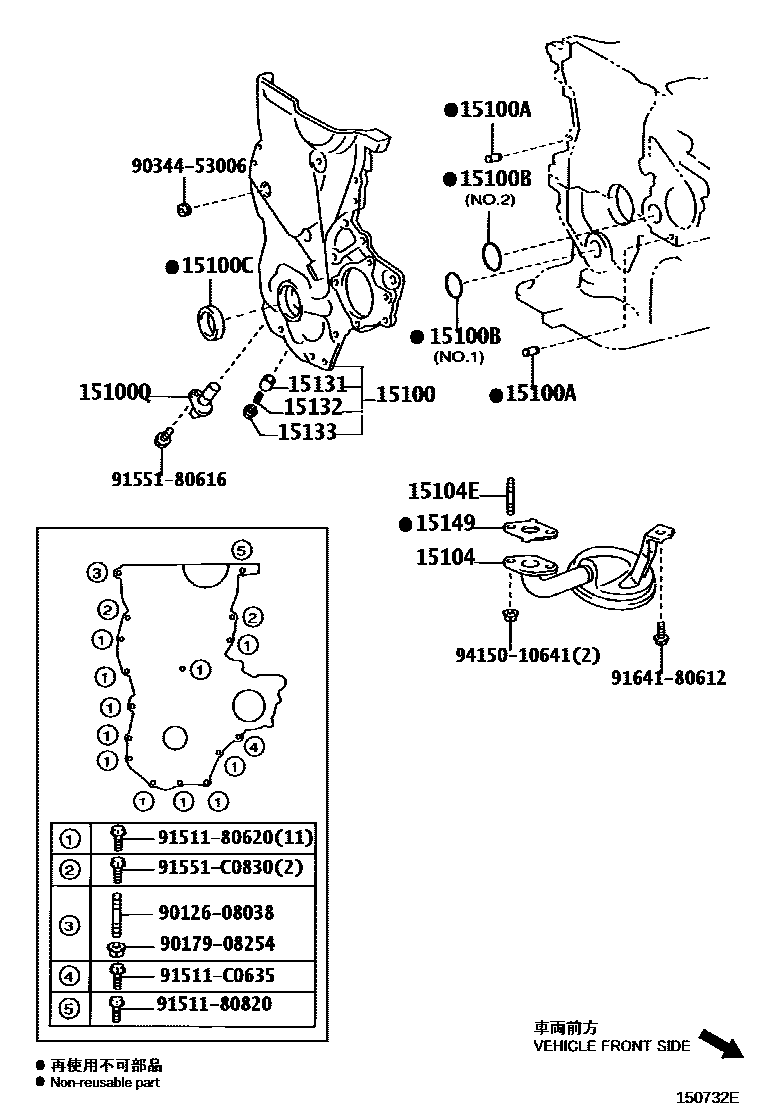

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-21050i1NZFXE..NHW20200308-200511

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i1NZFXE..NHW20200308-200511

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NZFXE..NHW20200511-200903

NO.1

main90301-42006i1NZFXE..NHW20200308-200511

NO.2

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFXE..NHW20200308-200511

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFXE..NHW20200308-200511

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFXE..NHW20200511-200612

main15104-21022i1NZFXE..NHW20200612-200903

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFXE..NHW20200308-200511

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFXE..NHW20200308-200511

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21050i1NZFXE..NHW20200308-200511

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21020i1NZFXE..NHW20200308-200405

main15133-21030i1NZFXE..NHW20200405-200511

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFXE..NHW20200308-200511

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151180620

main91511-80620

9151180820

main91511-80820

91511C0635

main91511-C0635

9155180616

main91551-80616

91551C0830

main91551-C0830

9164180612

main91641-80612

9415010641

main94150-10641

21 parts on this diagram · 1 diagram in section
