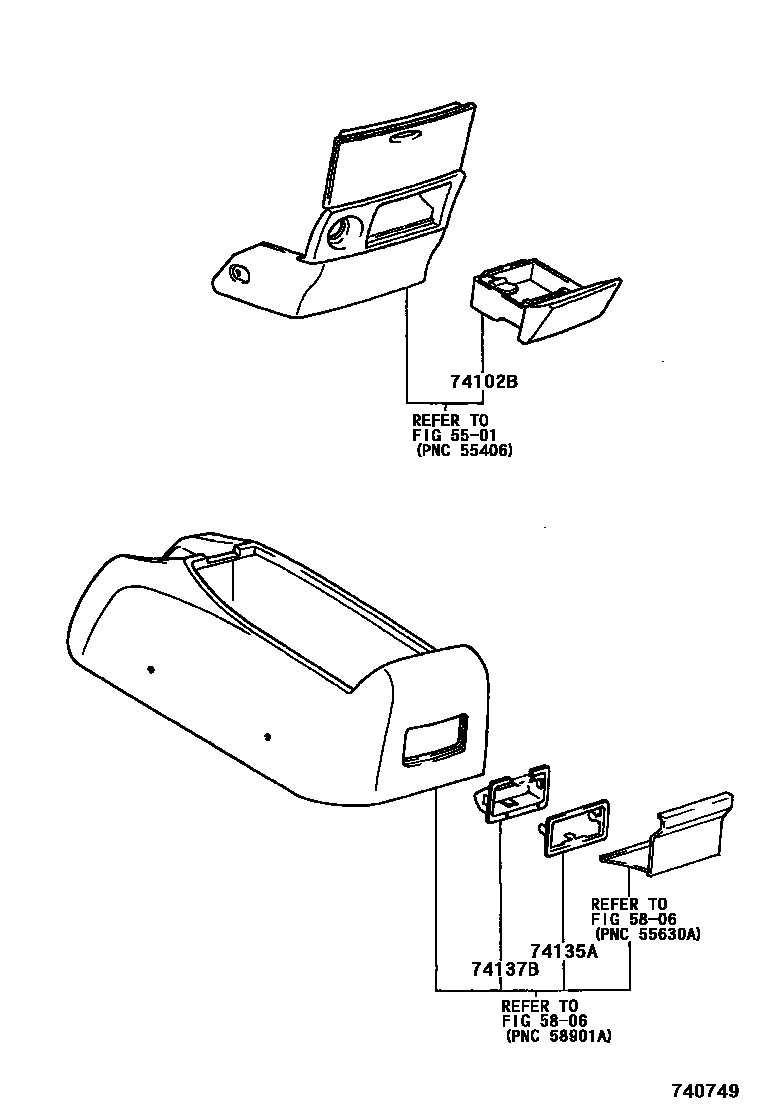

ASH RECEPTACLE

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-47010-B0iNHW11..RHD200005

AMETHYST,TRIM9#

main74102-47020-B0iNHW11..LHD200005

AMETHYST,TRIM9#

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-12040iNHW11200005

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iNHW11200005

5 parts on this diagram · 1 diagram in section
