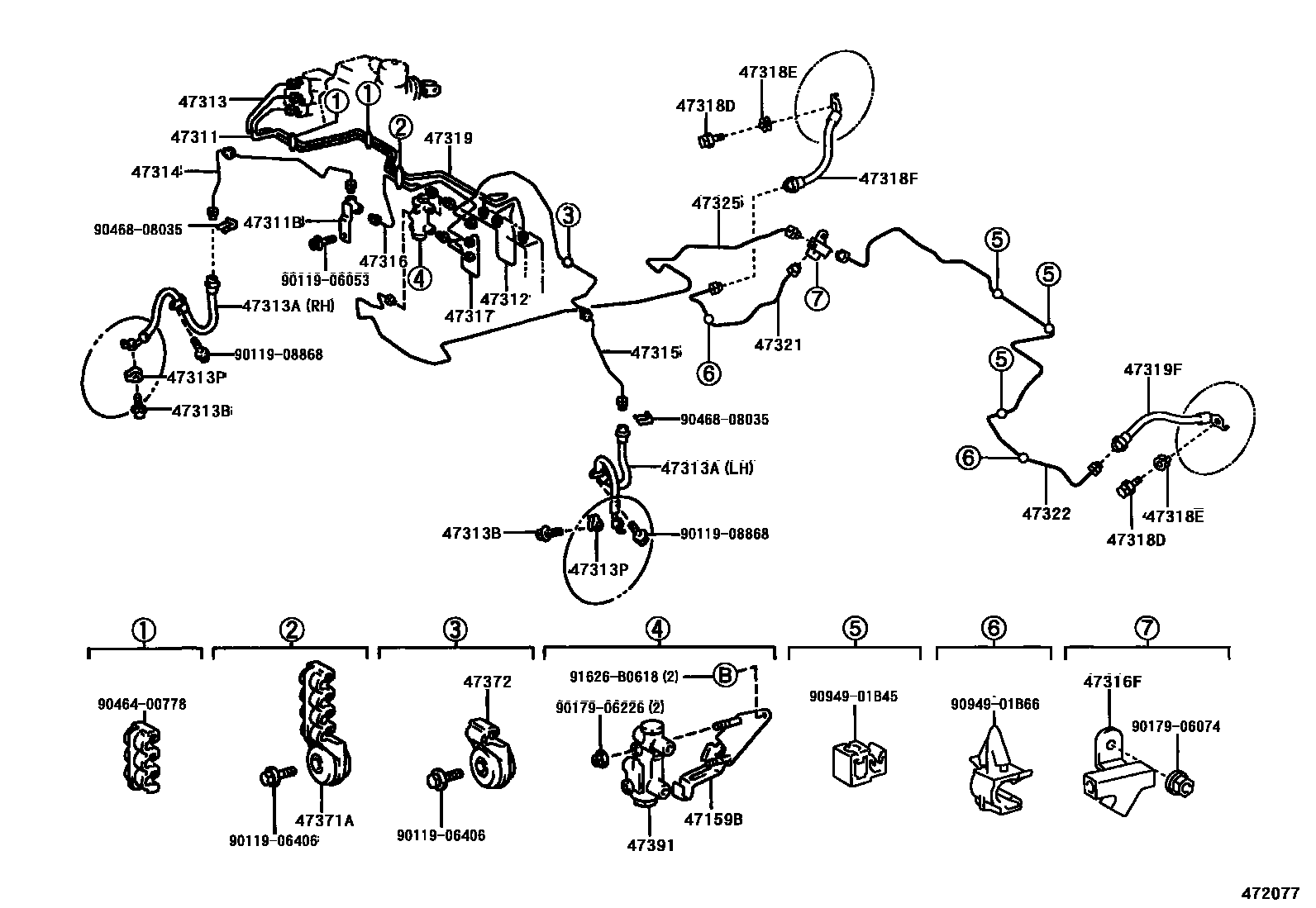

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47159BBRACKET, PROPORTIONING & BY-PASS VALVE

main47159-47010iNHW11..RHD200005

47311TUBE, FRONT BRAKE, NO.1

main47311-47020iNHW11..RHD200005

main47311-47030iNHW11..LHD200005

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10225iNHW11..RHD200005

47312TUBE, FRONT BRAKE, NO.2

main47312-47010iNHW11..RHD200005

main47312-47020iNHW11..LHD200005

47313TUBE, FRONT BRAKE, NO.3

main47313-47020iNHW11..RHD200005

main47313-47030iNHW11..LHD200005

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C51iNHW11200005

RH

main90947-02C52iNHW11200005

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iNHW11200005

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iNHW11200005

47314TUBE, FRONT BRAKE, NO.4

main47314-47020iNHW11..RHD200005

main47314-47030iNHW11..LHD200005

47315TUBE, FRONT BRAKE, NO.5

main47315-47020iNHW11..RHD200005

main47315-47030iNHW11..LHD200005

47316TUBE, FRONT BRAKE, NO.6

main47316-47010iNHW11..RHD200005

47316FWAY, 3(FOR REAR BRAKE TUBE)

main90413-10260iNHW11200005

47317TUBE, FRONT BRAKE, NO.7

main47317-47010iNHW11..RHD200005

main47317-47020iNHW11..LHD200005

47318TUBE, FRONT BRAKE, NO.8

main47318-47010iNHW11..LHD200005

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iNHW11200005

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iNHW11200005

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02A36iNHW11200005

47319TUBE, FRONT BRAKE, NO.9

main47319-47020iNHW11..RHD200005

main47319-47030iNHW11..LHD200005

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02A36iNHW11200005

47321TUBE, REAR BRAKE, NO.1

main47321-47020iNHW11200005

47322TUBE, REAR BRAKE, NO.2

main47322-47020iNHW11200005

47325TUBE, REAR BRAKE, NO.5

main47325-47020iNHW11..RHD200005

main47325-47030iNHW11..LHD200005

47371ACLAMP, BRAKE TUBE, NO.1

main47371-47010iNHW11..RHD200005

47372CLAMP, BRAKE TUBE, NO.2

main47371-47020iNHW11..RHD200005

47391WAY, BRAKE TUBE

main47391-47010iNHW11200005

9011906053

main90119-06053

9011906406

main90119-06406

9011908868

main90119-08868

9017906074

main90179-06074

9017906226

main90179-06226

9046400778

main90464-00778

9046808035

main90468-08035

9094901B45

main90949-01B45

9094901B66

main90949-01B66

91626B0618

main91626-B0618

35 parts on this diagram · 4 diagrams in section
