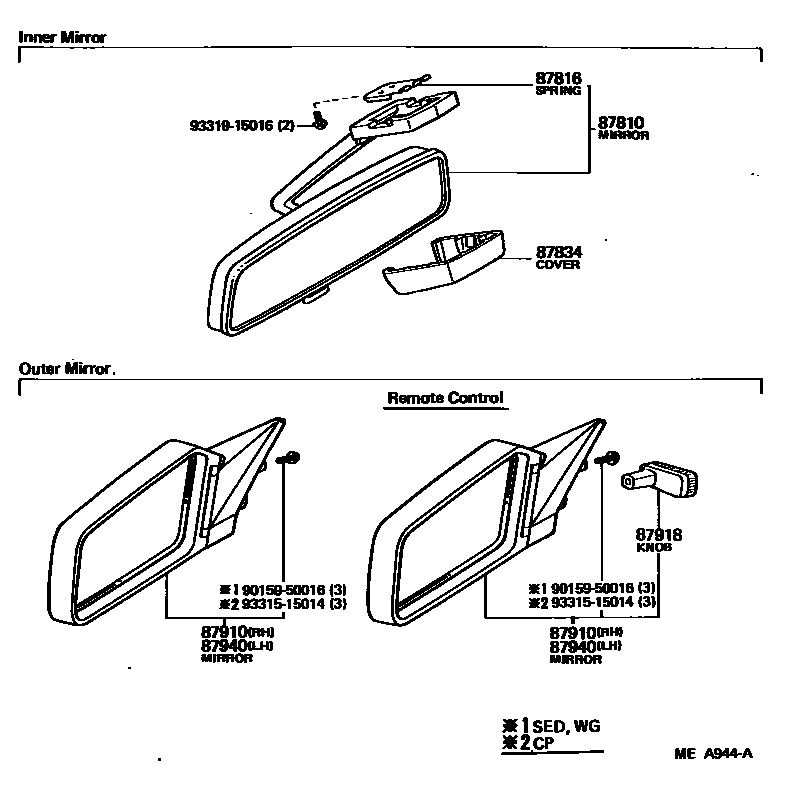

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-19015-11iTA60..GEN198108-198309

BLACK,BLACK,TRIM2#

main87810-19015-16iTA60..GEN198108-198309

DARK BROWN,BROWN,TRIM4#

main87810-19015-24iTA60..GEN198108-198309

BLUE,BLUE,TRIM8#

main87810-22161-01iCA60,TA6#..EUR198108-198309

BLACK,BLACK,TRIM2#

main87810-22161-24iCA60,TA6#..EUR198108-198309

BLUE,BLUE,TRIM8#

main87810-22161-26iCA60,TA6#..EUR198108-198309

DARK BROWN,BROWN,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iCA60,TA6#198108-198309

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-08iCA60,TA6#198108-198309

IVORY,IVORY

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-14350iCA60,TA6#..RHD..(DLX,GL)198108-198309

main87910-14360iCA60,TA6#..RHD..(DLX,GL)198108-198309

REMOTE-CONTROL

main87910-14370iCA60,TA6#..(SED,WG)..LHD198108-198309

main87910-14490iTA6#..RHD..XE198108-198309

REMOTE-CONTROL

main87910-14500iTA6#..CP..LHD198108-198309

main87910-14550iTA6#..RHD..XE198108-198309

main87910-14600iTA6#..CP..LHD198108-198309

REMOTE-CONTROL

main87910-14620iCA60,TA6#..(SED,WG)..LHD198108-198309

REMOTE-CONTROL

87918KNOB, CONTROL OUTER MIRROR

main87918-14040×2iTA6#..CP198108-198309

main87918-14050×2iTA6#..SED,WG198108-198309

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-14370iCA60,TA6#..(SED,WG)..LHD198108-198309

main87940-14380iCA60,TA6#..(SED,WG)..LHD198108-198309

REMOTE-CONTROL

main87940-14390iCA60,TA6#..RHD..(DLX,GL)198108-198309

main87940-14510iTA6#..CP..LHD198108-198309

REMOTE-CONTROL

main87940-14520iTA6#..RHD..XE198108-198309

main87940-14580iTA6#..CP..LHD198108-198309

main87940-14630iTA6#..RHD..XE198108-198309

REMOTE-CONTROL

main87940-14650iCA60,TA6#..RHD..(DLX,GL)198108-198309

REMOTE-CONTROL

9015950016

main90159-50016

9331515014

main93315-15014

9331915016

main93319-15016

9 parts on this diagram · 1 diagram in section
