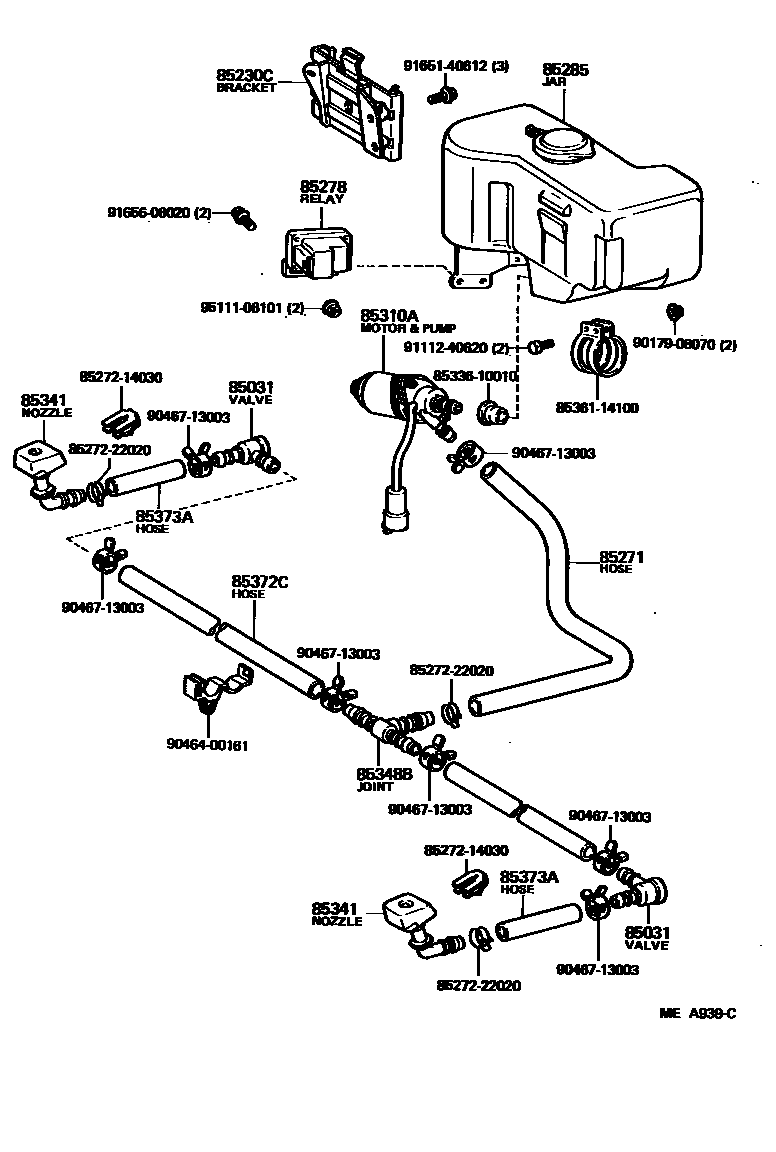

HEADLAMP CLEANER

0001 1 0002 1

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020×2iCA60,TA6#..EUR198108-198309

85230CBRACKET ASSY, HEADLAMP CLEANER

main85036-14140iTA6#..LHD..EUR198108-198309

main85036-14150iTA6#..RHD..EUG198108-198309

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-24010iTA6#..EUR198108-198309

main85375-14060iCA60198204-198309

85278RELAY ASSY, HEADLAMP CLEANER CONTROL

main85276-14040iCA60,TA6#..EUR198305-198309

main85276-20020iCA60,TA6#..EUR198108-198305

85285JAR, HEADLAMP CLEANER WASHER

main85330-14290iTA6#..LHD..EUR198108-198309

main85330-14380iTA6#..RHD..EUG198108-198309

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-22070iCA60,TA6#..EUR198108-198309

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-14210×2iCA60,TA6#..EUR198108-198309

main85035-14270×2iCA60,TA6#..(CP,SED)..EUR198108-198309

W/URETHANE BUMPER

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85352-12010iCA60,TA6#..EUR198108-198309

85372CHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)

main90445-14062iCA60,TA6#..EUR198108-198309

L=1450(*H,L=815)

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90445-14055×2iCA60,TA6#..EUR198108-198309

L=60

8527214030CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-14030

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

8533610010SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85336-10010

8536114100HOLDER, WINDSHIELD WASHER

main85361-14100

9017906070

main90179-06070

9046400161

main90464-00161

9046713003

main90467-13003

9111240620

main91112-40620

9165140612

main91651-40612

9165606020

main91656-06020

9511106101

main95111-06101

21 parts on this diagram · 2 diagrams in section
