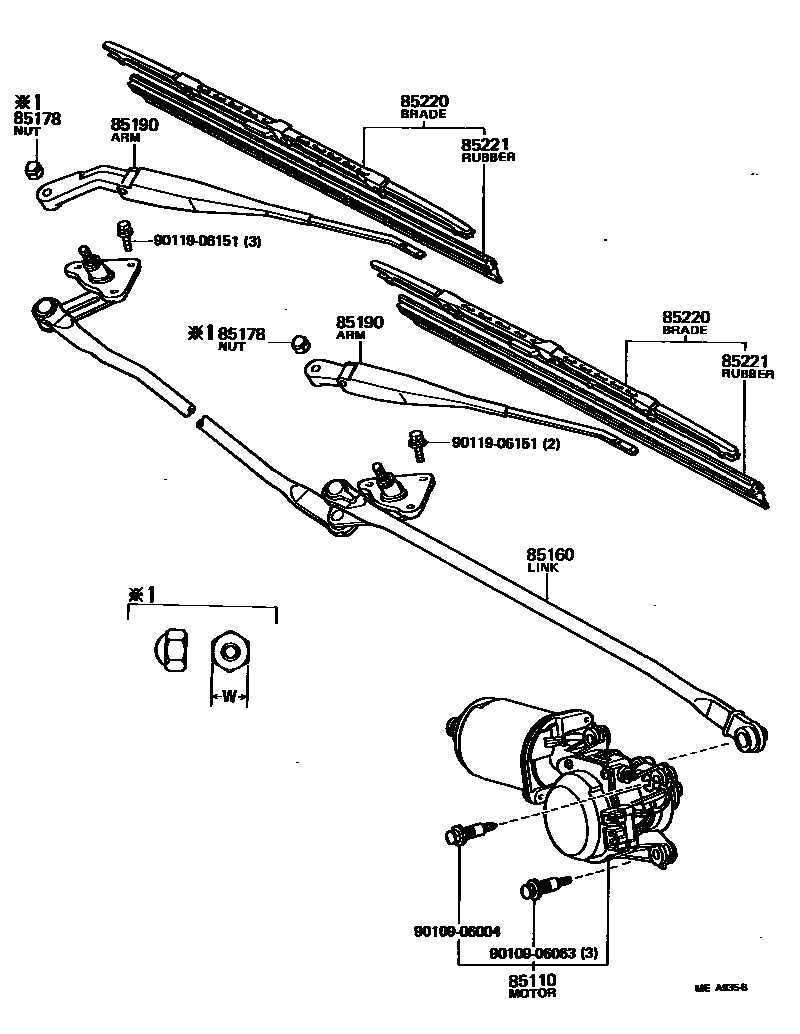

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-14170iCA60,TA6#..LHD198108-198309

main85110-14190iCA60,TA6#..RHD198108-198309

85160LINK ASSY, WINDSHIELD WIPER

main85160-14220iTA6#..RHD..XE198305-198309

main85160-14230iCA60,TA6#..(SED,WG)..LHD198108-198309

main85160-14300iTA6#..RHD..XE198108-198305

main85160-14310iTA6#..CP..LHD198108-198309

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08013×2iTA6#..SED,WG198108-198202

W=14

main90176-08033×2iCA60,TA6#198108-198309

W=12

85190ARM ASSY, WINDSHIELD WIPER

main85190-14340iCA60,TA6#..RHD..(DLX,GL)..EUG198204-198207

RH

main85190-14350iCA60,TA6#..(SED,WG)..LHD198108-198212

LH

main85190-14420iTA6#..RHD..XE198108-198204

RH

main85190-14430iTA6#..CP..LHD198108-198212

LH

main85190-14450iTA60..RHD..XE198204-198309

RH

main85190-14460iCA60,TA6#..RHD..(DLX,GL)..EUG198207-198211

RH

main85190-14480iTA62..RHD..XE198207-198211

RH

main85190-14510iCA60,TA6#..(SED,WG)..LHD198212-198309

LH,FULL LOCK BACK TYPE

main85190-14520iTA6#..CP..LHD198212-198309

LH,FULL LOCK BACK TYPE

main85190-14530iCA60,TA60..RHD..EUG198211-198309

RH

main85190-14540iTA62..EUG198211-198309

RH

main85190-20350iTA60..RHD..DLX..GEN198204-198309

RH

main85210-14060iCA60,TA6#..RHD..(DLX,GL)..EUG198204-198211

LH

main85210-14080iCA60,TA6#..(SED,WG)..LHD198108-198212

RH

main85210-14160iTA62..RHD..XE198204-198211

LH

main85210-14180iTA6#..CP..LHD198108-198212

RH

main85210-14200iTA60..RHD..XE198204-198309

LH

main85210-14230iCA60,TA6#..(SED,WG)..LHD198212-198309

RH,FULL LOCK BACK TYPE

main85210-14240iTA6#..CP..LHD198212-198309

RH,FULL LOCK BACK TYPE

main85210-20100iCA60,TA60..RHD..EUG198211-198309

LH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-14310iTA6#..RHD198108-198204

RH

main85220-14320iCA60,TA6#..LHD198108-198212

LH

main85220-14360iTA6#..RHD198108-198204

LH

main85220-14370iCA60,TA6#..LHD198108-198212

RH

main85220-16100iTA6#..RHD198212-198309

RH

main85220-16110iTA6#..RHD198212-198309

LH

main85220-16140iCA60,TA6#..LHD198212-198309

LH,FULL LOCK BACK TYPE

main85220-16150iCA60,TA6#..LHD198212-198309

RH,FULL LOCK BACK TYPE

main85220-20260iTA60..RHD..GEN198204-198211

LH

main85220-30220iTA60..RHD..GEN198204-198211

RH

85221BLADE, WINDSHIELD WIPER

main85221-12120×2iCA60,TA6#..LHD198108-198308

main85221-30080×2iCA60,TA6#..RHD198108-198308

main85221-30100iCA60,TA6#..LHD; CA60,TA6#..RHD..EUG198308-198309

RH

main85221-30120iCA60,TA6#..RHD; TA60..RHD..GEN198308-198309

LH; RH

9010906004

main90109-06004

9010906063

main90109-06063

9011906151

main90119-06151

9 parts on this diagram · 1 diagram in section
