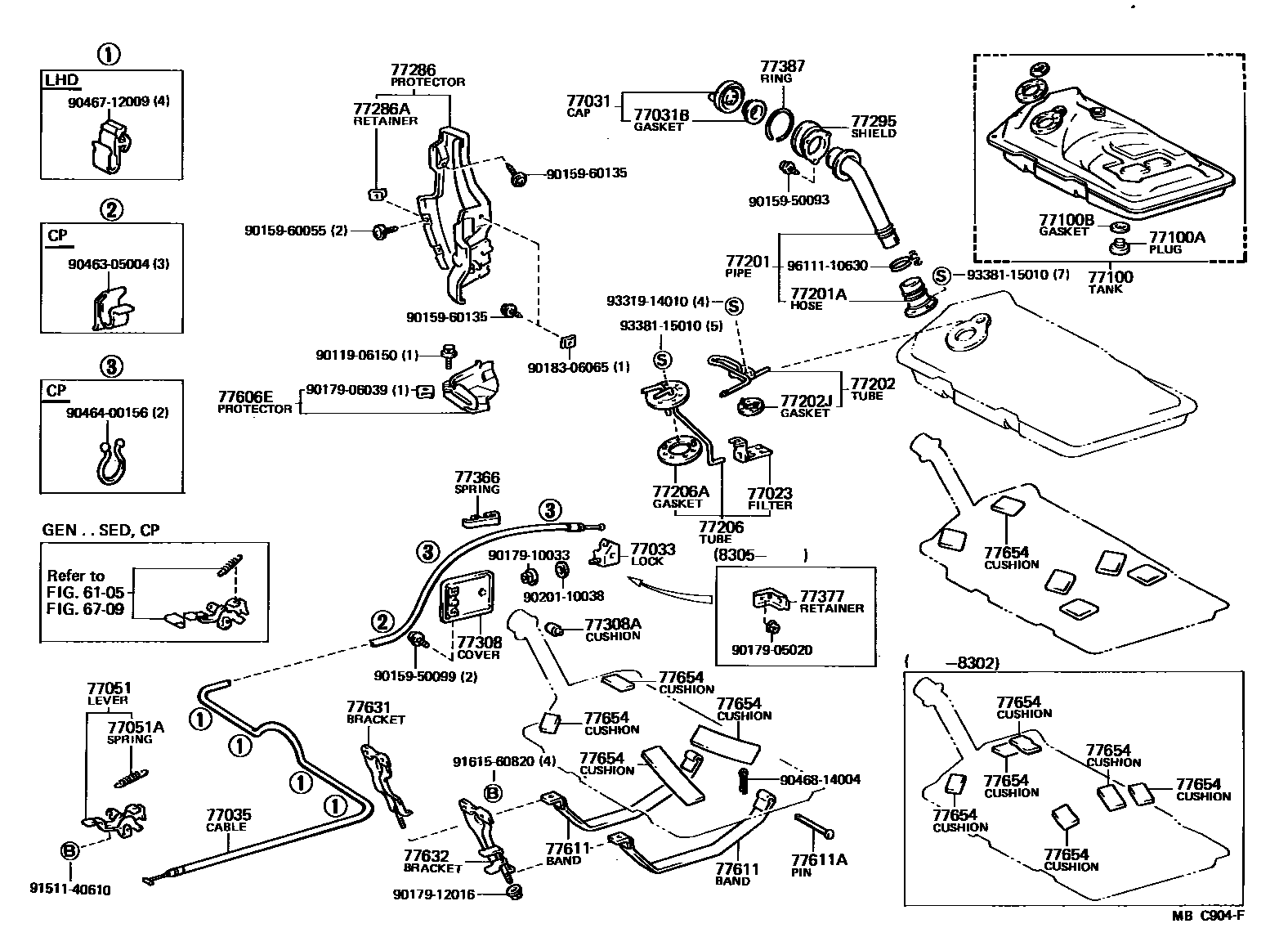

FUEL TANK & TUBE
6105
6709
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77031BGASKET (FOR FUEL TANK CAP)
77051LEVER SUB-ASSY, FUEL LID OPEN
77051ASPRING, TENSION (FOR FUEL LID LEVER)
77100TANK ASSY, FUEL
PLUG OD=20
77100APLUG(FOR FUEL TANK)
OD=24
77100BGASKET(FOR FUEL TANK)
ID=20.3
ID=24
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77202JGASKET (FOR BREATHER TUBE)
77206TUBE SUB-ASSY, FUEL TANK SUCTION
W/RETURN
MIDDLE EAST
MIDDLE EAST
W/RETURN
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
77286PROTECTOR, FUEL TANK INLET PIPE
77286ARETAINER, FUEL FILLER PIPE PROTECTOR
77295SHIELD, FUEL FILLER PIPE
77308COVER SUB-ASSY, FUEL INLET BOX
W/FUEL LID OPENER
77308ACUSHION(FOR FUEL INLET BOX COVER)
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77387RING, FUEL INLET BOX
77606EPROTECTOR, FUEL TANK, NO.4
77611BAND, FUEL TANK
sub77601-14050
77611APIN (FOR FUEL TANK BAND)
77632BRACKET, FUEL TANK, NO.2
77654CUSHION, FUEL TANK, NO.2
120X70
120X120
9011906150
main90119-06150
9015950093
main90159-50093
9015950099
main90159-50099
9015960055
main90159-60055
9015960135
main90159-60135
9017905020
main90179-05020
9017906039
main90179-06039
9017910033
main90179-10033
9017912016
main90179-12016
9018306065
main90183-06065
9020110038
main90201-10038
9046305004
main90463-05004
9046400156
main90464-00156
9046712009
main90467-12009
9046814004
main90468-14004
9151140610
main91511-40610
9161560820
main91615-60820
9331914010
main93319-14010
9338115010
main93381-15010
9611110630
main96111-10630
52 parts on this diagram · 2 diagrams in section
