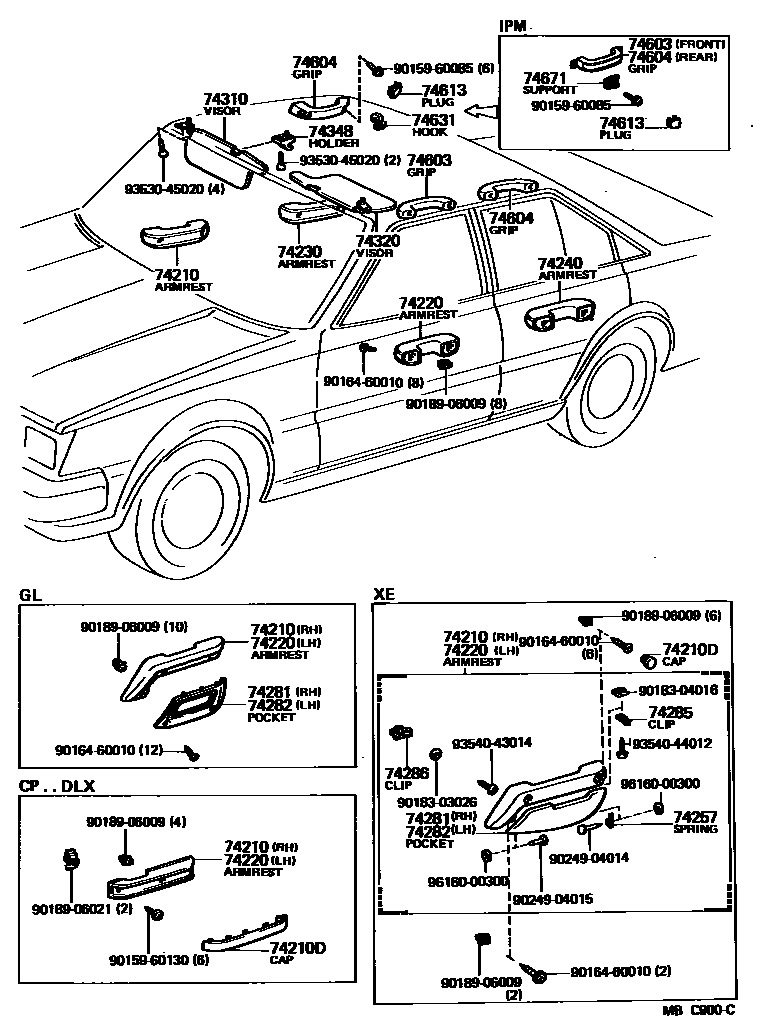

ARMREST & VISOR

0001 1 0002 1

74210ARMREST ASSY, FRONT, RH

main74210-12050-01iTA60..CP..EUG198108-198309

BLACK,BLACK,TRIM2#

main74210-12050-14iTA60..CP..EUG198108-198309

BLUE,BLUE,TRIM8#

main74210-12050-16iTA60..CP..EUG198108-198309

DARK BROWN,BROWN,TRIM4#

main74210-14070-01iTA6#..GL198108-198309

BLACK,BLACK,TRIM2#

main74210-14070-04iTA6#..GL198108-198309

BLUE,BLUE,TRIM8#

main74210-14070-06iTA6#..GL198108-198309

DARK BROWN,BROWN,TRIM4#

main74210-14080-01iTA6#..XE198108-198309

BLACK,BLACK,TRIM2#

main74210-14080-04iTA6#..XE198108-198309

BLUE,BLUE,TRIM8#

main74210-14080-06iTA6#..XE198108-198309

DARK BROWN,BROWN,TRIM4#

main74210-22060-01iCA60,TA6#..(SED,WG)..DLX198108-198309

BLACK,BLACK,TRIM2#

main74210-22060-04iCA60,TA6#..SED..DLX198108-198309

BLUE,BLUE,TRIM8#

main74210-22060-06iCA60,TA6#..(SED,WG)..DLX198108-198309

DARK BROWN,BROWN,TRIM4#

74210DCAP, DOOR ARMREST

main74223-12020-01×2iTA60..CP..EUG198108-198309

BLACK,BLACK,TRIM2#

main74223-12020-14×2iTA60..CP..EUG198108-198309

BLUE,BLUE,TRIM8#

main74223-12020-16×2iTA60..CP..EUG198108-198309

DARK BROWN,BROWN,TRIM4#

main74223-14020-01×4iTA6#..XE198108-198309

BLACK,BLACK,TRIM2#

main74223-14020-04×4iTA6#..XE198108-198309

BLUE,BLUE,TRIM8#

main74223-14020-06×4iTA6#..XE198108-198309

DARK BROWN,BROWN,TRIM4#

74220ARMREST ASSY, FRONT, LH

main74210-12050-01iTA60..CP..EUG198108-198309

BLACK,BLACK,TRIM2#

main74210-12050-14iTA60..CP..EUG198108-198309

BLUE,BLUE,TRIM8#

main74210-12050-16iTA60..CP..EUG198108-198309

DARK BROWN,BROWN,TRIM4#

main74210-22060-01iCA60,TA6#..(SED,WG)..DLX198108-198309

BLACK,BLACK,TRIM2#

main74210-22060-04iCA60,TA6#..SED..DLX198108-198309

BLUE,BLUE,TRIM8#

main74210-22060-06iCA60,TA6#..(SED,WG)..DLX198108-198309

DARK BROWN,BROWN,TRIM4#

main74220-14070-01iTA6#..GL198108-198309

BLACK,BLACK,TRIM2#

main74220-14070-04iTA6#..GL198108-198309

BLUE,BLUE,TRIM8#

main74220-14070-06iTA6#..GL198108-198309

DARK BROWN,BROWN,TRIM4#

main74220-14080-01iTA6#..XE198108-198309

BLACK,BLACK,TRIM2#

main74220-14080-04iTA6#..XE198108-198309

BLUE,BLUE,TRIM8#

main74220-14080-06iTA6#..XE198108-198309

DARK BROWN,BROWN,TRIM4#

74230ARMREST ASSY, REAR, RH

main74250-14020-01iTA6#..GL198108-198309

BLACK,BLACK,TRIM2#

main74250-14020-04iTA6#..GL198108-198309

BLUE,BLUE,TRIM8#

main74250-14020-06iTA6#..GL198108-198309

DARK BROWN,BROWN,TRIM4#

main74250-14030-01iCA60,TA6#..(SED,WG)..DLX198108-198309

BLACK,BLACK,TRIM2#

main74250-14030-04iCA60,TA6#..SED..DLX198108-198309

BLUE,BLUE,TRIM8#

main74250-14030-06iCA60,TA6#..(SED,WG)..DLX198108-198309

DARK BROWN,BROWN,TRIM4#

74240ARMREST ASSY, REAR, LH

main74250-14020-01iTA6#..GL198108-198309

BLACK,BLACK,TRIM2#

main74250-14020-04iTA6#..GL198108-198309

BLUE,BLUE,TRIM8#

main74250-14020-06iTA6#..GL198108-198309

DARK BROWN,BROWN,TRIM4#

main74250-14030-01iCA60,TA6#..(SED,WG)..DLX198108-198309

BLACK,BLACK,TRIM2#

main74250-14030-04×4iCA60,TA6#..SED..DLX198108-198309

BLUE,BLUE,TRIM8#

main74250-14030-06iCA60,TA6#..(SED,WG)..DLX198108-198309

DARK BROWN,BROWN,TRIM4#

74257SPRING, ARMREST, NO.1

main74257-14030iTA6#..XE198108-198309

RH

main74258-14010iTA6#..XE198108-198309

LH

74281POCKET, DOOR ARMREST, RH

main74281-14010-01iTA6#..GL198108-198309

BLACK,BLACK,TRIM2#

main74281-14010-04iTA6#..GL198108-198309

BLUE,BLUE,TRIM8#

main74281-14010-06iTA6#..GL198108-198309

DARK BROWN,BROWN,TRIM4#

main74281-14020-01iTA6#..XE198108-198309

BLACK,BLACK,TRIM2#

main74281-14020-04iTA6#..XE198108-198309

BLUE,BLUE,TRIM8#

main74281-14020-06iTA6#..XE198108-198309

DARK BROWN,BROWN,TRIM4#

74282POCKET, DOOR ARMREST, LH

main74282-14010-01iTA6#..GL198108-198309

BLACK,BLACK,TRIM2#

main74282-14010-04iTA6#..GL198108-198309

BLUE,BLUE,TRIM8#

main74282-14010-06iTA6#..GL198108-198309

DARK BROWN,BROWN,TRIM4#

main74282-14020-01iTA6#..XE198108-198309

BLACK,BLACK,TRIM2#

main74282-14020-04iTA6#..XE198108-198309

BLUE,BLUE,TRIM8#

main74282-14020-06iTA6#..XE198108-198309

DARK BROWN,BROWN,TRIM4#

74285CLIP, DOOR ARMREST POCKET

main74285-14010-01×2iTA6#..XE198108-198309

BLACK,BLACK,TRIM2#

main74285-14010-04×2iTA6#..XE198108-198309

BLUE,BLUE,TRIM8#

main74285-14010-06×2iTA6#..XE198108-198309

DARK BROWN,BROWN,TRIM4#

74286CLIP, DOOR ARMREST POCKET, NO.2

main74286-14010×2iTA6#..XE198108-198309

74310VISOR ASSY, RH

main74310-14170-08iTA6#..RHD..(DLX,XE)198108-198204

IVORY,IVORY

main74310-14180-08iTA62..DLX198108-198204

IVORY,IVORY

main74310-14190-08iTA6#..LHD..GL198201-198305

IVORY,COLD SPEC,IVORY

main74310-14210-08iTA62..LHD..GL198108-198208

IVORY,IVORY

main74310-14230-08iTA62..RHD..GL198108-198208

IVORY,IVORY

main74310-14250iTA60..RHD..GEN198305-198309

IVORY

main74310-14310iCA60,TA6#..RHD..EUG198305-198309

IVORY

main74310-14320iCA60,TA6#..LHD198305-198309

IVORY

main74320-14250iTA62..DLX,GL198305-198309

IVORY,SWEDEN SPEC

main74320-14280-08iTA62..(DLX,GL)..(SDN,SDZ)198204-198305

IVORY,IVORY

74320VISOR ASSY, LH

main74310-14170-08iTA6#..LHD..(DLX,XE)198108-198204

IVORY,IVORY

main74310-14230-08iTA62..LHD..GL198108-198204

IVORY,IVORY

main74320-14280-08iTA62..DLX198108-198204

IVORY,IVORY

main74320-14290-08iCA60,TA6#..LHD..EUR198204-198305

IVORY,COLD SPEC,IVORY

main74320-14300-08iCA60,TA6#..RHD..(DLX,XE)198108-198305

IVORY,IVORY

main74320-14310-08iTA62..RHD..GL198108-198208

IVORY,IVORY

main74320-14320-08iTA62..LHD..GL198204-198208

IVORY,IVORY

main74320-14350-08iTA60..LHD..GEN; TA62..SDN,SDZ198204-198305

IVORY,IVORY

main74320-14380iCA60,TA6#..RHD198305-198309

IVORY

main74320-14400iCA60,TA6#..LHD..EUR198305-198309

IVORY

main74320-14430iTA60..LHD..GEN; TA62..DLX,GL198305-198309

IVORY; IVORY,SWEDEN SPEC

74348HOLDER, VISOR

main74348-12010-08×2iCA60,TA6#198108-198309

IVORY,IVORY

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-22020-08iCA60,TA6#..(SED,WG)..EUG198108-198309

*IPM,IVORY,IVORY

main74610-14030-08iTA6#..CP198108-198309

W/SUN ROOF,IVORY,IVORY

main74610-20030-08iCA60,TA6#198108-198309

IVORY,IVORY

74604GRIP SUB-ASSY, ASSIST, REAR

main74603-14020-08×2iTA6#..CP198108-198309

W/SUN ROOF,IVORY,IVORY

main74603-22020-08×2iCA60,TA6#..SED..EUG198108-198309

*IPM,IVORY,IVORY

main74610-20030-08×2iCA60,TA6#198108-198309

IVORY,IVORY

74613PLUG, ASSIST GRIP

main74617-14010-08×6iCA60,TA6#198108-198309

IVORY,IVORY

main74617-22010-08×4iCA60,TA6#..(SED,WG)..EUG; TA6#..CP198108-198309

*IPM,IVORY,IVORY; W/SUN ROOF,IVORY,IVORY

74631HOOK, COAT, A

main74631-14010-08iCA60,TA6#198108-198309

IVORY,IVORY

74671SUPPORT, ASSIST GRIP

main74671-22010-08iCA60,TA6#..(SED,WG)..EUG198108-198309

*IPM,IVORY,IVORY

9015960085

main90159-60085

9015960130

main90159-60130

9016460010

main90164-60010

9018303026

main90183-03026

9018304016

main90183-04016

9018906009

main90189-06009

9018906021

main90189-06021

9024904014

main90249-04014

9024904015

main90249-04015

9353045020

main93530-45020

9354043014

main93540-43014

9354044012

main93540-44012

9616000300

main96160-00300

31 parts on this diagram · 2 diagrams in section
