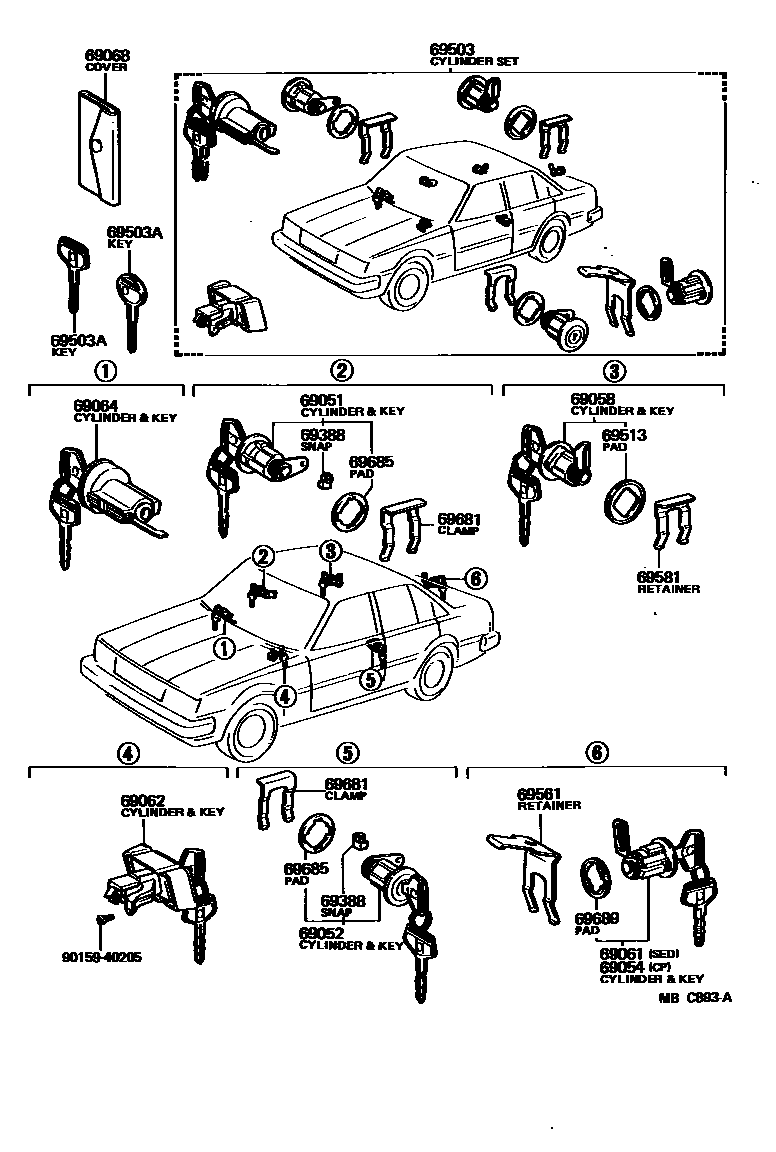

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-14061iTA60..(CP,SED)..GEN198305-198309

main69051-14081iCA60,TA6#..(CP,SED)..EUR198305-198309

main69051-19265iTA60..(CP,SED)..GEN198108-198305

sub69051-19275

main69051-19275iCA60,TA6#..(CP,SED)..EUR198108-198305

main69051-19285iTA60..WG..GEN198108-198305

sub69051-19295

main69051-19295iCA60,TA6#..WG..EUR198108-198305

main69051-91C03iTA60..WG..GEN198305-198309

sub69051-91C05

main69051-91C04iCA60,TA6#..WG..EUR198305-198309

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-14061iTA60..(CP,SED)..GEN198305-198309

main69052-14081iCA60,TA6#..(CP,SED)..EUR198305-198309

main69052-19265iTA60..(CP,SED)..GEN198108-198305

sub69052-19275

main69052-19275iCA60,TA6#..(CP,SED)..EUR198108-198305

main69052-19285iTA60..WG..GEN198108-198305

sub69052-19295

main69052-19295iCA60,TA6#..WG..EUR198108-198305

main69052-91C03iTA60..WG..GEN198305-198309

sub69052-91C05

main69052-91C04iCA60,TA6#..WG..EUR198305-198309

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-19435iTA60..XE198108-198309

main69055-19445iTA6#..CP..EUR198108-198309

main69055-91256iTA60..WG..GEN198108-198309

sub69055-91257

main69055-91C02iCA60,TA6#..WG..EUR198108-198309

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-19135iTA60..(CP,SED)..GEN198108-198309

sub69058-14060

main69058-19145iCA60,TA6#..(CP,SED)..EUR198108-198309

main69058-19155iTA60..WG..GEN198108-198309

sub69058-19165

main69058-19165iCA60,TA6#..WG..EUR198108-198309

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-19375iTA60..SED..GEN198108-198309

sub69055-20271

main69055-19385iCA60,TA6#..SED..EUR198108-198309

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-14030-01iTA60..(CP,SED)..GEN198108-198309

BLACK

sub69056-20120

sub69056-14030

main69056-14040-01iCA60,TA6#..(CP,SED)..EUR198108-198309

BLACK

sub69056-14050

main69056-91C01iTA60..WG..GEN198108-198309

sub69056-91C03

main69056-91C02iCA60,TA6#..WG..EUR198108-198309

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-14050iTA60..(CP,SED)..GEN198108-198303

sub69057-14060

main69057-14060iCA60,TA6#..(CP,SED)..EUR198108-198303

main69057-14090iTA60..(CP,SED)..GEN198303-198309

sub69057-14060

main69057-14100iCA60,TA6#..(CP,SED)..EUR198303-198309

main69057-91C01iTA60..WG..GEN198108-198309

sub69057-91C03

main69057-91C02iCA60,TA6#..WG..EUR198108-198309

69068COVER SUB-ASSY, KEY

main69555-20010iCA60,TA6#198108-198309

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iCA60,TA6#..WG198305-198309

RH

main69759-20090iCA60,TA6#..WG198305-198309

LH

main69759-24080iCA60,TA6#198108-198305

RH

main69759-24090iCA60,TA6#198108-198305

LH

main69759-30040iCA60,TA6#..CP,SED198305-198309

RH

main69759-30050iCA60,TA6#..CP,SED198305-198309

LH

69503CYLINDER SET, LOCK

main69005-14350iTA60..SED..GEN198108-198305

main69005-14351iTA60..SED..GEN198305-198309

main69005-14370iCA60,TA6#..SED..EUR198108-198305

main69005-14371iCA60,TA6#..SED..EUR198305-198309

main69005-14450iTA60..SED..GEN198305-198309

W/TRUNK OPENER

main69005-14470iTA60..XE198108-198305

main69005-14490iTA6#..CP..EUR198108-198305

main69005-14500iTA60..XE198305-198309

W/FUEL LID OPENER

main69005-14520iTA60..XE198305-198309

main69005-14530iTA6#..CP..EUR198305-198309

main69005-91C01iTA60..WG..GEN198108-198305

main69005-91C03iCA60,TA6#..WG..EUR198108-198305

main69005-91C06iTA60..WG..GEN198305-198309

sub69005-91C10

main69005-91C07iCA60,TA6#..WG..EUR198305-198309

main69005-91C08iTA60..WG..GEN198305-198309

W/OPENER

69503AKEY, BLANK

main90999-00066iTA60..(CP,SED)..GEN198108-198309

MASTER KEY,MASTER KEY

sub90999-00085

main90999-00067iTA60..WG..GEN198108-198309

MASTER KEY,MASTER KEY

main90999-00068iTA60..(CP,SED)..GEN198108-198309

SUB KEY,SUB KEY

sub90999-00094

main90999-00071iTA60..WG..GEN198108-198309

SUB KEY,SUB KEY

main90999-00074iCA60,TA6#..(CP,SED)..EUR198108-198309

MASTER KEY

sub90999-00104

main90999-00075iCA60,TA6#..(CP,SED)..EUR198108-198309

SUB KEY

sub90999-00094

main90999-00080iCA60,TA6#..WG..EUR198108-198309

SUB KEY

main90999-00081iCA60,TA6#..WG..EUR198108-198309

MASTER KEY,W(*68),MASTER KEY

sub90999-00124

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-12020iCA60,TA6#..WG198108-198309

main69513-14010iCA60,TA6#..CP,SED198108-198309

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-12050iCA60,TA6#..SED198108-198309

main69561-14060iTA6#..CP198108-198309

69581RETAINER, FUEL FILLER LID CYLINDER

main69581-14010iCA60,TA6#198108-198309

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iCA60,TA6#198108-198309

69685PAD, LOCK CYLINDER

main69513-12020iCA60,TA6#198108-198309

69689PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69685-12010iCA60,TA6#..CP,SED198108-198309

9015940205

main90159-40205

18 parts on this diagram · 2 diagrams in section
