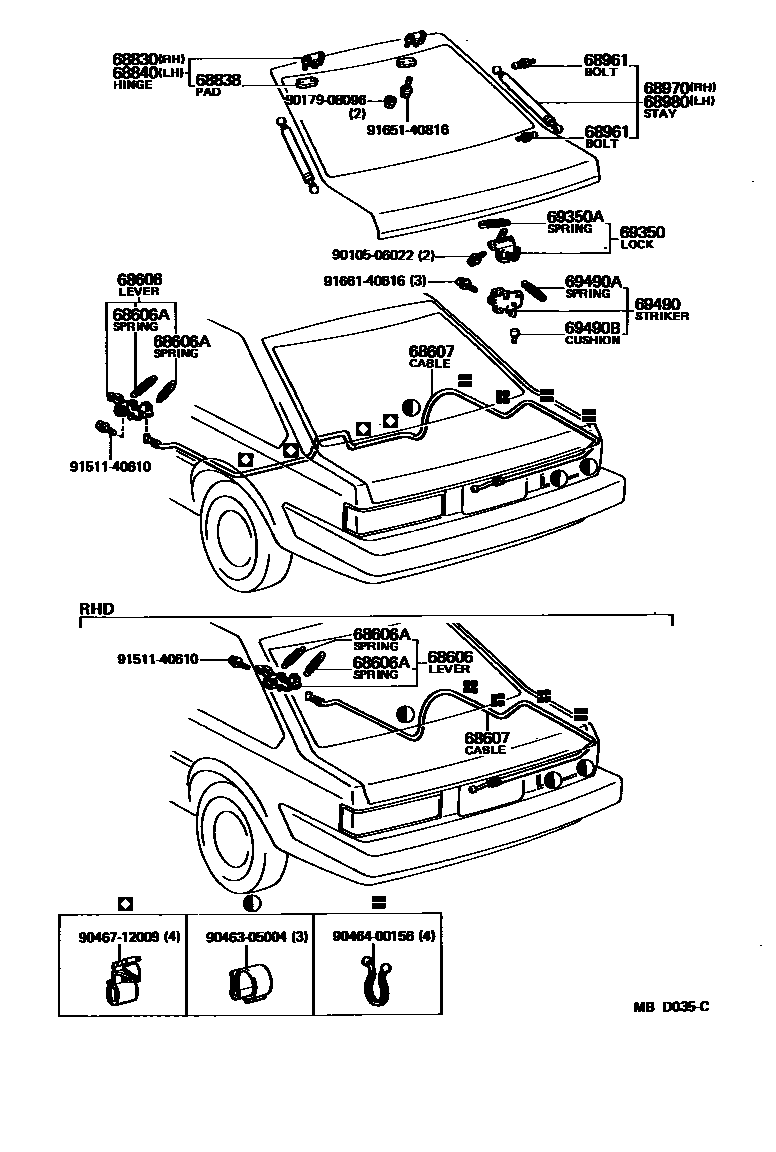

BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68830HINGE ASSY, BACK DOOR, RH
68838PAD, BACK DOOR HINGE, NO.1
68840HINGE ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
68970STAY ASSY, BACK DOOR, RH
W/RR WIPER
W/RR WIPER
68980STAY ASSY, BACK DOOR
W/RR WIPER
W/RR WIPER
69350LOCK ASSY, BACK DOOR
W/OPENER
69350ASPRING(FOR BACK DOOR LOCK)
69490STRIKER ASSY, BACK DOOR LOCK
W/OPENER
69490ASPRING(FOR BACK DOOR LOCK STRIKER)
WD=0.7
WD=0.8,W/OPENER
69490BCUSHION(FOR BACK DOOR LOCK STRIKER)
9010506022
main90105-06022
9017908096
main90179-08096
9046305004
main90463-05004
9046400156
main90464-00156
9046712009
main90467-12009
9151140610
main91511-40610
9165140816
main91651-40816
9166140616
main91661-40616
22 parts on this diagram · 2 diagrams in section
