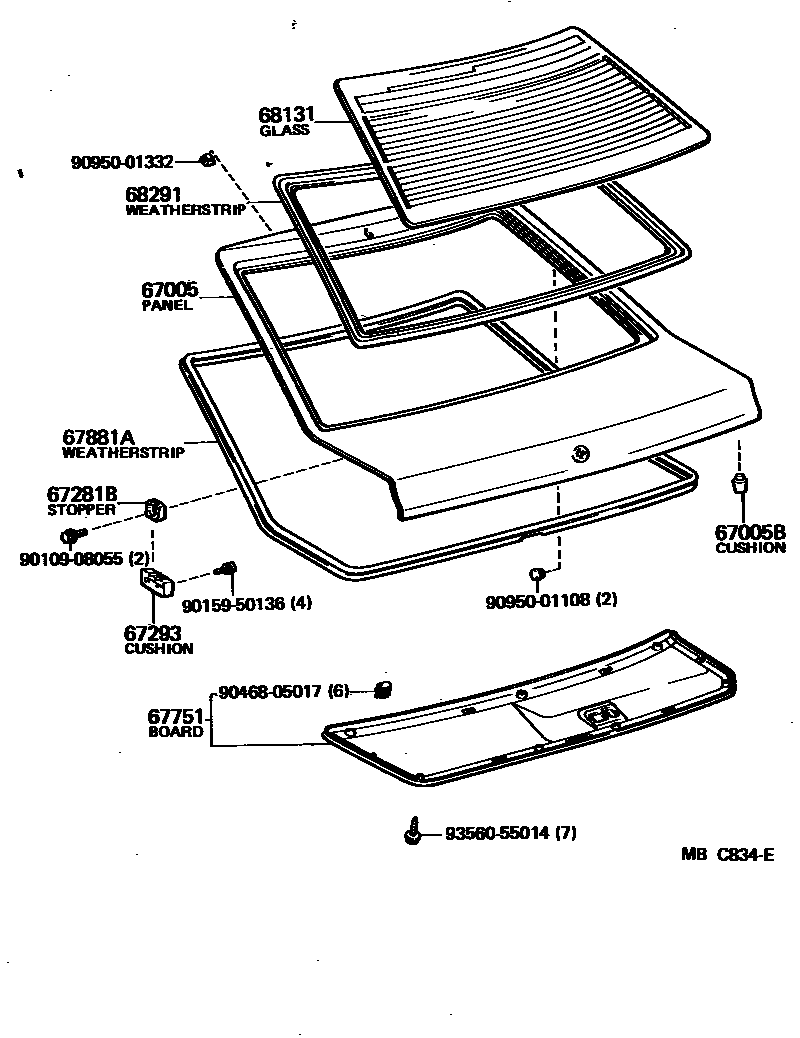

BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
W/*DEF
W/RR WIPER,*DEF
W/RR WIPER
W/RR WIPER
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67293CUSHION, BACK DOOR LOWER STOPPER
67751BOARD, BACK DOOR TRIM
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
DARK BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
DARK BROWN,BROWN,TRIM4#
68131GLASS, BACK DOOR
*EHTT,T=3.5,T=3.5,*TT,W/*DEF
*EHTT,T=3.5,T=3.5,*TT,W/HEAVY *DEF
*EHTT,T=4.0,BRONZE,T=4.0,*TT,W/*DEF
T=4.0,*TT,W/HEAVY *DEF
68291WEATHERSTRIP, BACK DOOR GLASS
9010908055
main90109-08055
9015950136
main90159-50136
9046805017
main90468-05017
9095001108
main90950-01108
9095001332
main90950-01332
9356055014
main93560-55014
14 parts on this diagram · 2 diagrams in section
