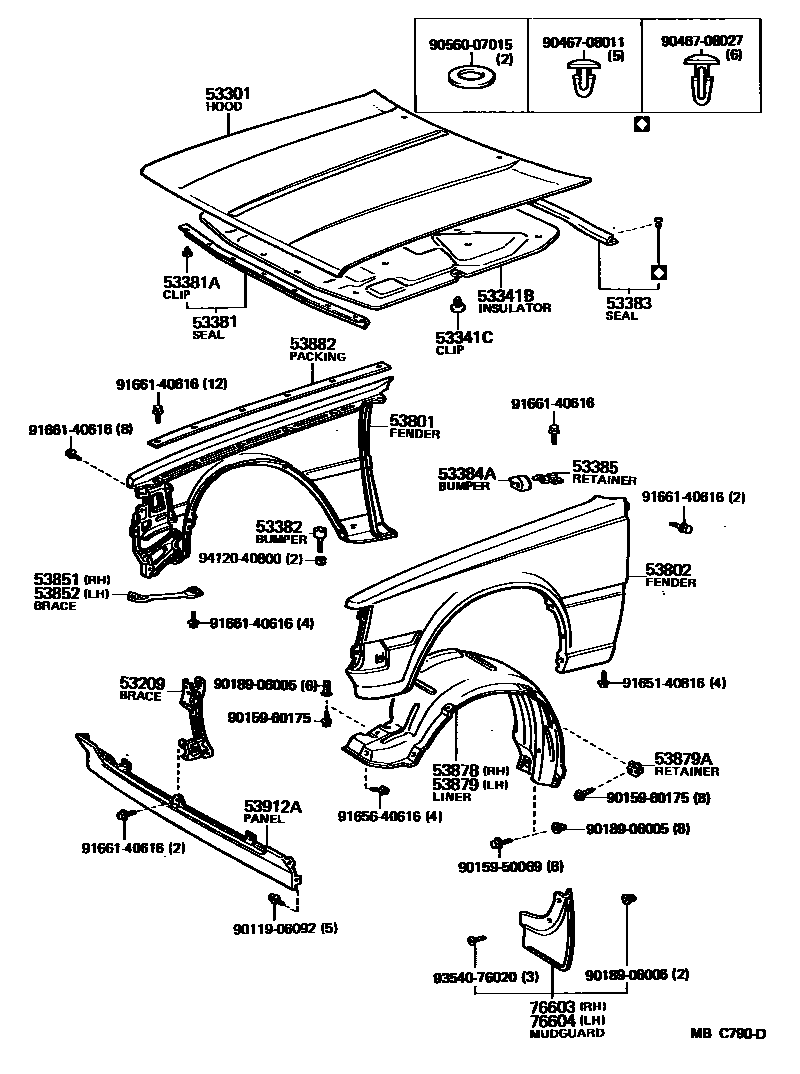

HOOD & FRONT FENDER
53209BRACE SUB-ASSY, HOOD LOCK
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382BUMPER, HOOD, FRONT
sub53382-90A00
53383SEAL, HOOD TO COWL TOP
53384ABUMPER, FENDER TO HOOD
53385RETAINER, HOOD, BUMPER
RH
LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH
53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH
53878LINER, FRONT FENDER, RH
53879LINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882PACKING, FRONT FENDER MAIN
53912APANEL, FRONT VALANCE, LOWER
sub53911-14140
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
9011906092
main90119-06092
9015950069
main90159-50069
9015960175
main90159-60175
9018906005
main90189-06005
9018906006
main90189-06006
9046708011
main90467-08011
9046708027
main90467-08027
9056007015
main90560-07015
9165140816
main91651-40816
9165640616
main91656-40616
9166140616
main91661-40616
9354076020
main93540-76020
9412040800
main94120-40800
34 parts on this diagram · 1 diagram in section
