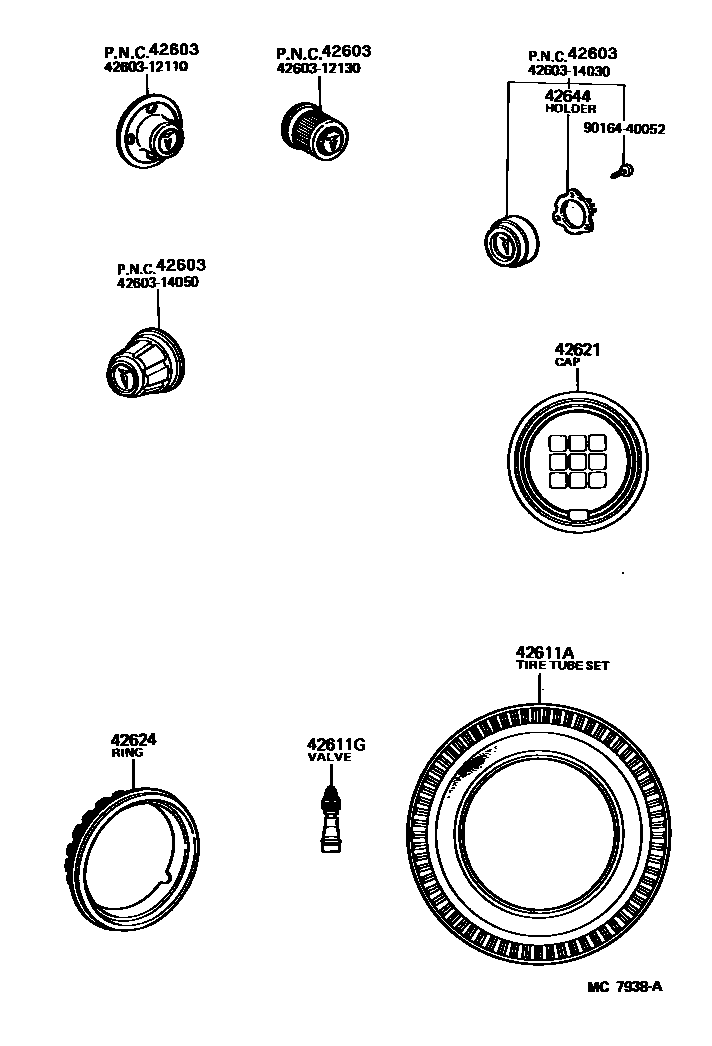

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12110×4iCA60,TA6#..CP,SED198108-198309

main42603-12130×4iCA60,TA60..(CP,SED)..DLX198108-198309

sub42603-27030

main42603-14030×4iTA62..EUG198108-198305

main42603-14050×4iTA62..(GL,XE)..SDZ198208-198305

sub42603-22100

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-14140×5iCA60,TA6#198108-198309

165SR13,T/L

main42652-14180×5iTA6#..(GL,XE)..EUR198305-198309

185/70HR13,T/L

main42652-14290×5iCA60,TA6#..LHD..EUG198108-198309

165SR13,T/L

main42652-22090×5iTA60..SED..GEN198108-198305

6.45-13-4,T/L

main98021-64133×5iTA60..GEN198305-198309

6.45-13-6,W/T

main98511-64133×5iTA60..WG..GEN198108-198305

6.45-13-6,T/L

main98921-64132×5iTA60..SED..GEN198108-198309

6.45-13-4,W/T

main98938-65130×5iTA60..GEN198108-198309

165SR13,W/T

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iCA60,TA6#198108-198309

42621CAP, WHEEL

main42621-14160×4iTA60..RHD..(3FC,5F)..GEN198301-198309

42624RING, WHEEL CAP

main42624-14024×4iTA62..EUG198108-198112

main42624-14025×4iTA62..EUG198112-198305

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14041×4iTA62..EUG198108-198305

4260312110ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12110

4260312130ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12130

4260314030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14030

4260314050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14050

9016440052

main90164-40052

11 parts on this diagram · 2 diagrams in section
