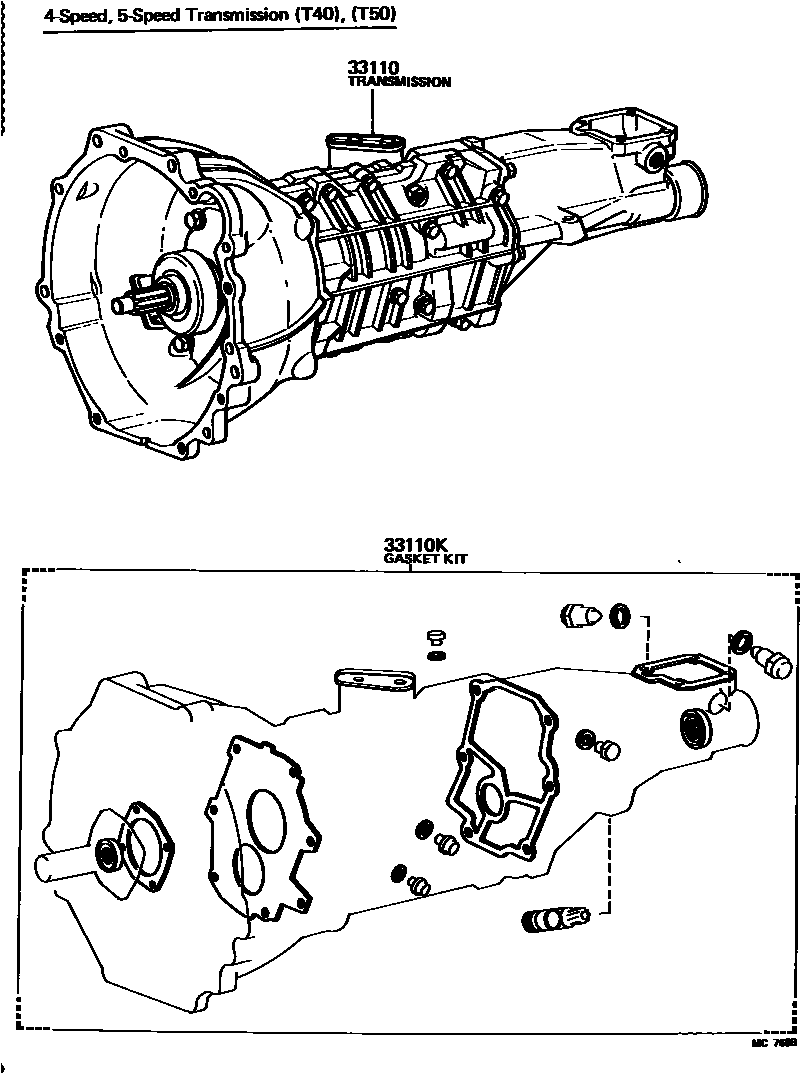

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

33110TRANSMISSION ASSY, MANUAL

main33030-14540iTA60..4F198108-198304

SMG=6

main33030-14541iTA60..4F198304-198309

SMG=6

main33030-14550iTA60..5F;TA62..5F..EUG198108-198304

SMG=6

main33030-14551iTA60..5F;TA62..EUG198304-198309

SMG=6

main33030-14560iTA62..5F..(DLX,GL)..(SDN,SDZ)198108-198304

SMG=6,SWEDEN SPEC

main33030-14561iTA62..5F..(DLX,GL)198304-198309

SMG=6,SWEDEN SPEC

main33030-14720iTA62..5F..SDZ198208-198304

SMG=6,SWITZERLAND SPEC

main33030-14721iTA62..5F..SDZ198304-198309

SMG=6,SWITZERLAND SPEC

main33030-2B030iCA60198204-198309

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-14030iTA6#..MTM198108-198309

main04331-22030iCA60198204-198309

2 parts on this diagram · 2 diagrams in section
