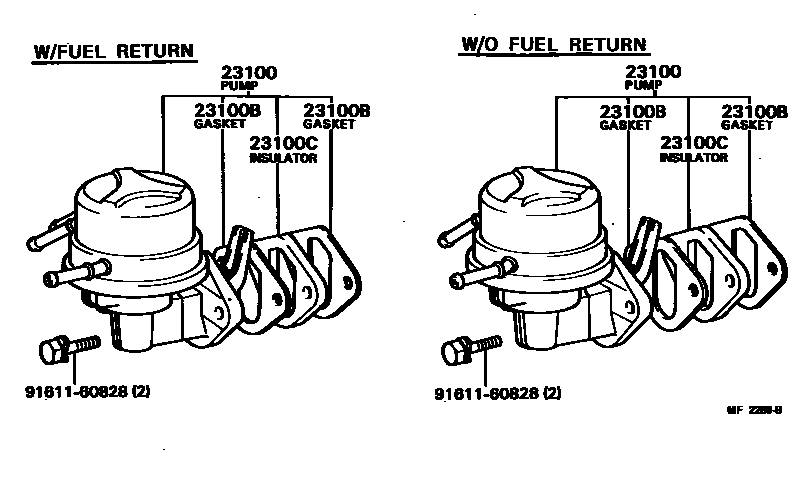

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-19105i2T..TA60..RHD..GEN198108-198202

HONG KONG SPEC

main23100-19116i2T,3T..TA6#..EUG; 2T..TA60..LHD..GEN198306-198309

MIDDLE EAST SPEC

main23100-29295i3TC..TA62198108-198309

main23100-29305i2T..TA60..GEN198108-198309

23100BGASKET, FUEL PUMP

main90923-05005×2i2T,3T#..TA6#198108-198309

23100CINSULATOR, FUEL PUMP

main90923-06001i2T,3T#..TA6#198108-198309

9161160828

main91611-60828

4 parts on this diagram · 1 diagram in section
