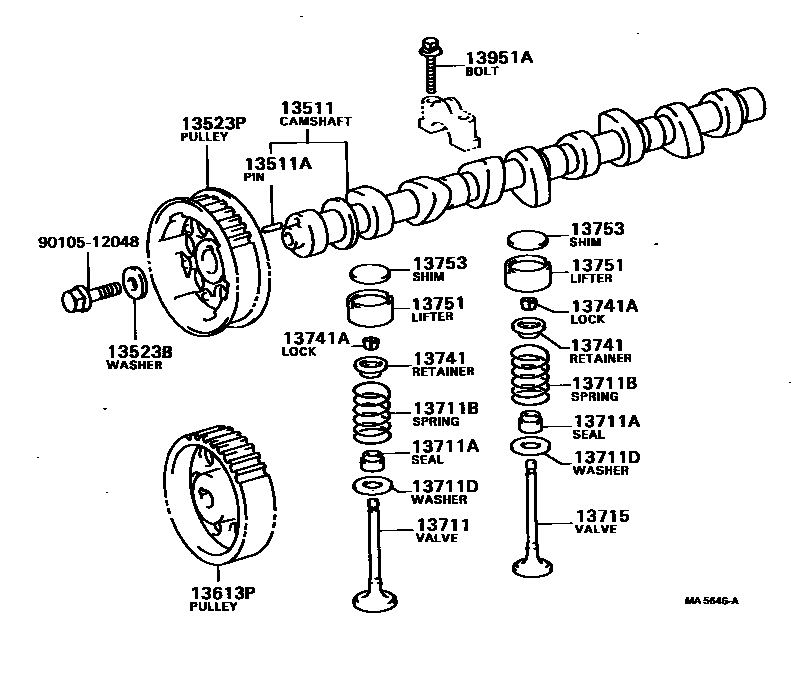

CAMSHAFT & VALVE
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523BWASHER, PLATE(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13613PPULLEY, INJECTION PUMP DRIVE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE
EXHAUST
13711BSPRING, COMPRESSION(FOR INNER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
STD
O/S 0.05
13753SHIM, VALVE ADJUSTING
T=2.20,T=2.200
T=2.25,T=2.250
T=2.30,T=2.300
T=2.35,T=2.350
T=2.40,T=2.400
T=2.45,T=2.450
T=2.50,T=2.500
T=2.55,T=2.550
T=2.60,T=2.600
T=2.65,T=2.650
T=2.70,T=2.700
T=2.75,T=2.750
T=2.80,T=2.800
T=2.85,T=2.850
T=2.90,T=2.900
T=2.95,T=2.950
T=3.00,T=3.000
T=3.05,T=3.050
T=3.10,T=3.100
T=3.15,T=3.150
T=3.20,T=3.200
T=3.25,T=3.250
T=3.30,T=3.300
T=3.35,T=3.350
T=3.40,T=3.400
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
*12-1.25PX157-24
9010512048
main90105-12048
18 parts on this diagram · 4 diagrams in section
