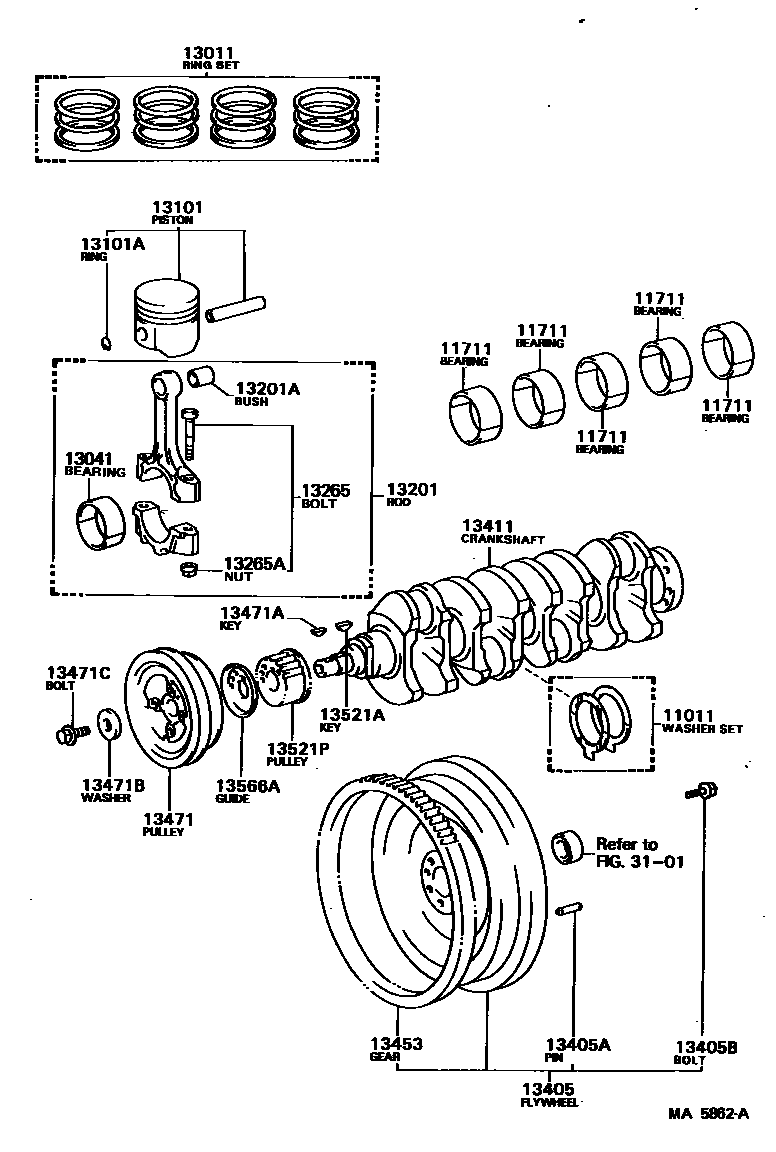

Toyota 221210 — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
13011RING SET, PISTON
13101PISTON SUB-ASSY, W/PIN
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
3101CLUTCH & RELEASE FORK
24 parts on this diagram · 2 diagrams in section
CRANKSHAFT & PISTON for Toyota 221210
This section contains 28 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota 221210. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
