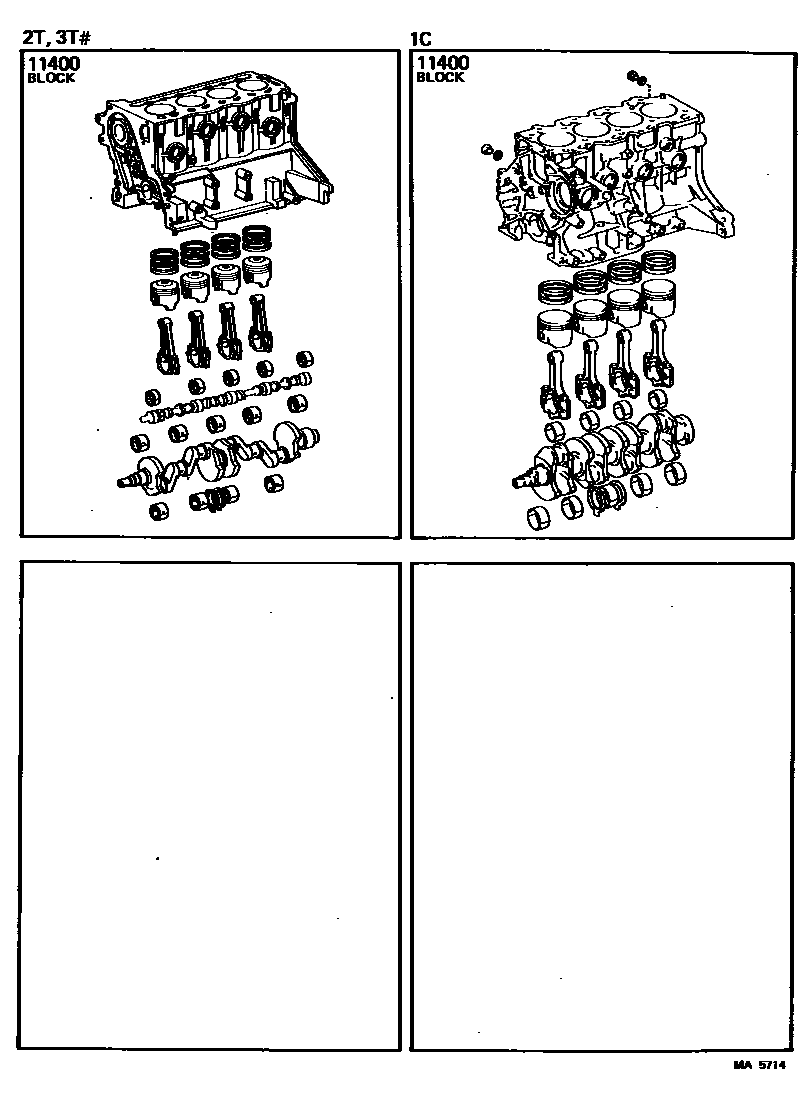

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-26052i198108-198207

main11400-26053i198207-198309

main11400-28011i198108-198207

main11400-28012i198207-198309

main11400-64020i198204-198303

main11400-64021i198303-198307

main11400-64022i198307-198309

1 parts on this diagram · 1 diagram in section
