HORN

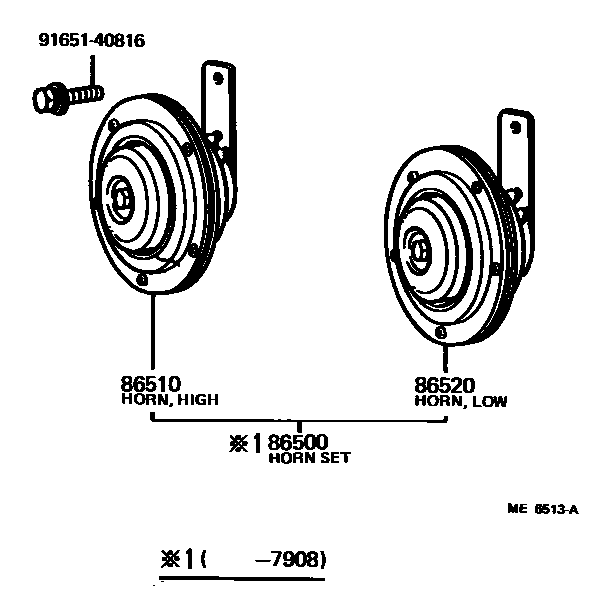

Parts diagram

86500HORN ASSY

main86500-14031i197708-197908

86510HORN ASSY, HIGH PITCHED

main86510-14031i197708-197908

main86510-14110i197908-198107

main86510-20110i197708-198107

DENSO

main86510-20120i197708-198107

MARUKO

86520HORN ASSY, LOW PITCHED

main86520-14010i197708-198107

DENSO

main86520-14021i197708-198107

MARUKO

main86520-14031i197807-197908

ECE SPEC

main86520-14060i197908-198107

9165140816

main91651-40816

4 parts on this diagram · 1 diagram in section
